SmartROC D65 Tier 4 Final 5 RCS drilling system
58
Symbol Name Explanation
Resetting hole length Zeroes the measured hole
length. Length measurement
should be reset with the drill bit
against the ground before begin-
ning to drill a new hole.
Current hole length
Penetration rate
The value at the top shows the
current hole length (m) and the
bottom value the penetration
rate (m/min). During auto
drilling, the average penetration
rate for the latest rod is shown.
If the automatic drill stop for at-
tained hole length has been
reached, the average penetra-
tion rate for the entire hole will
be shown.
Drill bit position Shows the position of the drill bit
in metres.
Shortcut, drill plan Here you can get direct access
to the drill plan, if applicable.
Desired hole depth This is where the value for the
desired hole length (0-99.9m) is
entered. Drilling will be stopped
automatically once this hole
depth has been reached.
Rod indication Shows the number of drill steel
in the hole.
Hole number Current hole number in the drill
plan if used.
Feed pressure Shows the current feed pressure
while forward and reverse feed
is being used (bar).

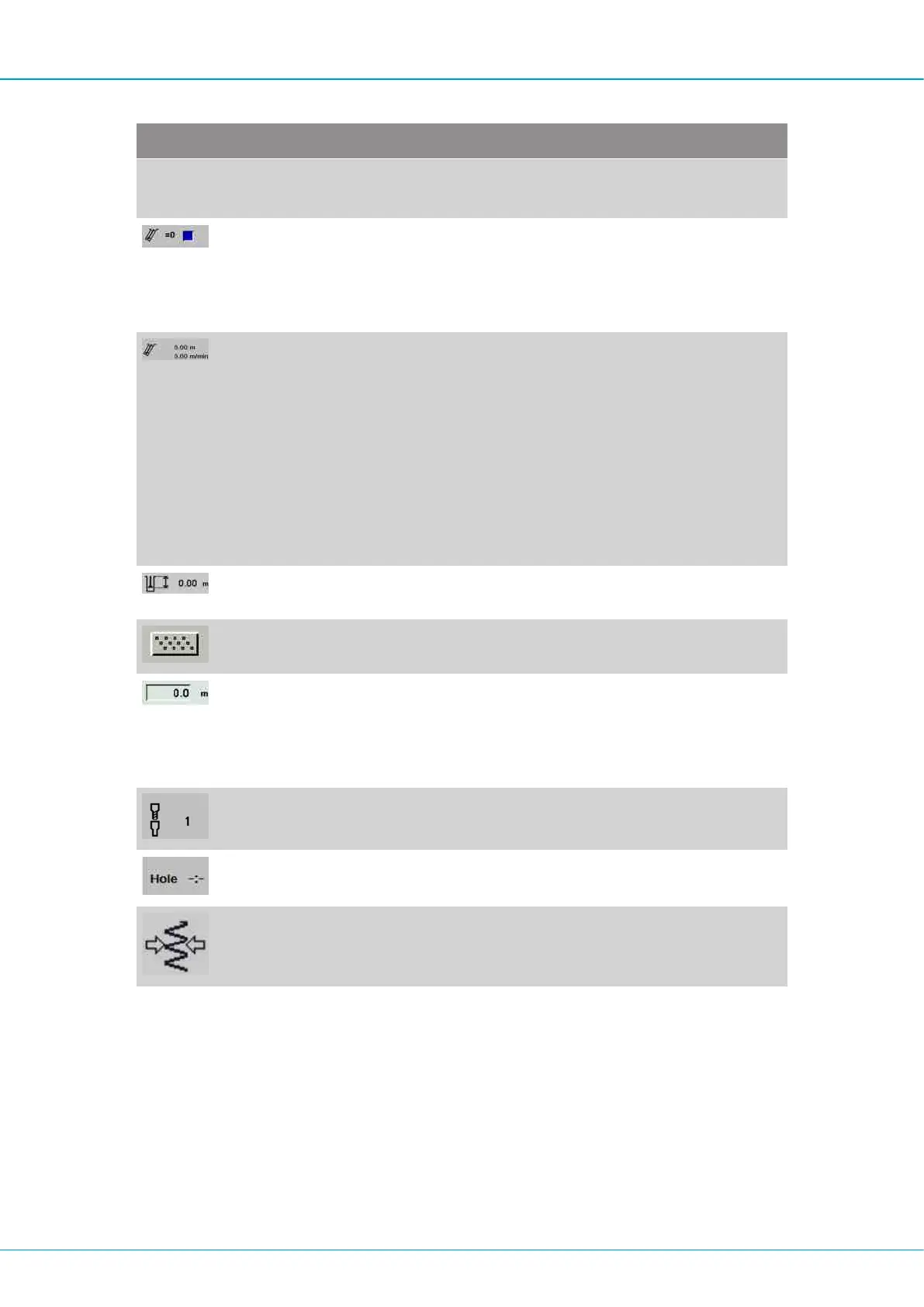

Table12: Explanation of the symbols in direct selection menu F1.
n Pressure gauges: The pressure gauges show, from left: rotation pressure, percus-
sion pressure and drill feed pressure.
Under the pressure gauge for rotation pressure is a box where you can set the amperage
that controls the flow to the rotation unit.
Under the pressure gauge for drill feed pressure is a box where you can directly set the
drill feed pressure.
n Status bar: Shows directly warnings and information on the engine and drilling sys-
tem. A green box indicates that an automatic function is active. A red box immediately
turns off the diesel engine while a yellow one provides information that there is some-
thing that must be seen to (see status bar icon).
