SmartROC D65 Tier 4 Final 5 RCS drilling system
90

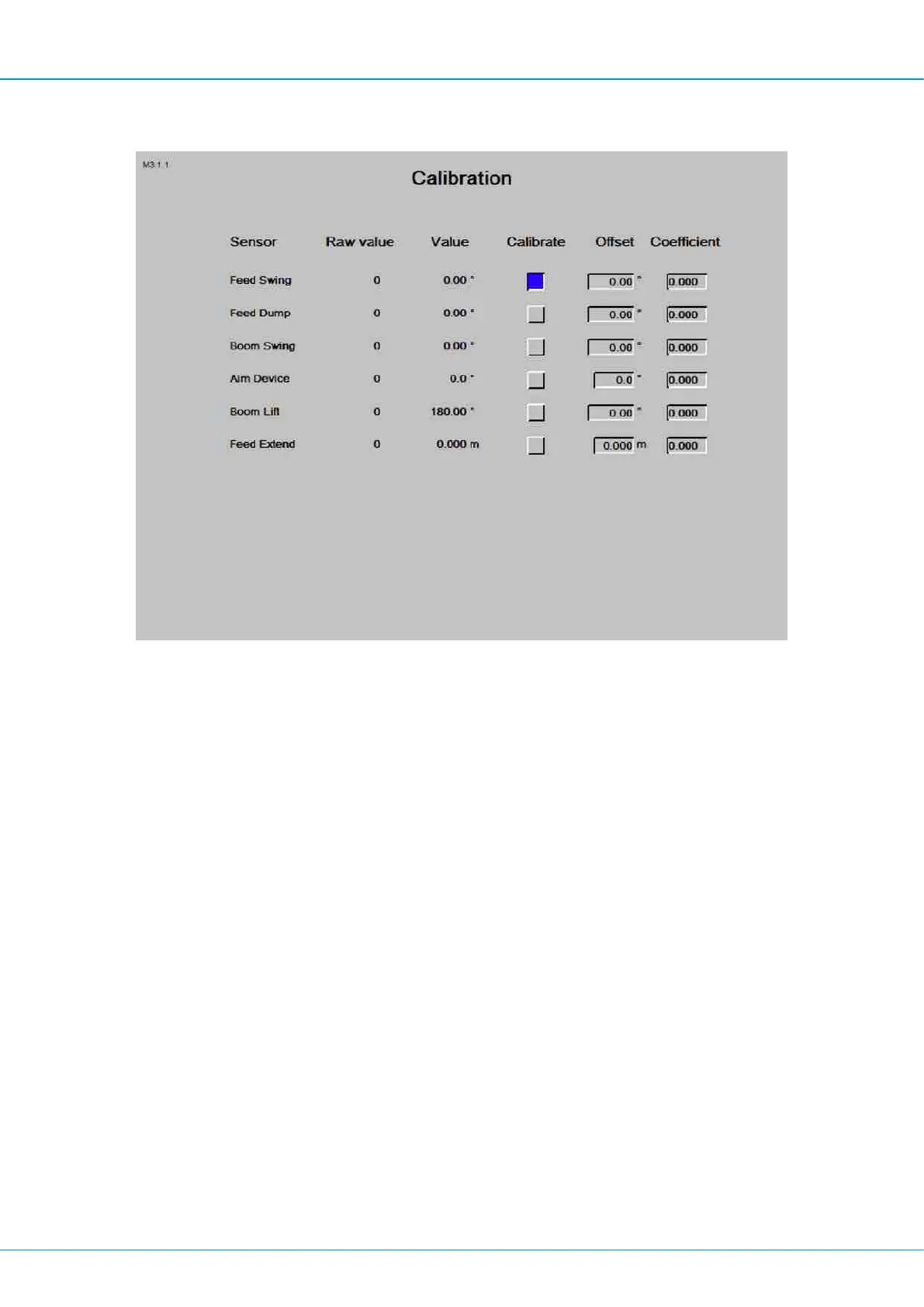

Positioning - Sensor - Calibration
Calibration
n Sensors
l Feed swing
l Feed dump
l Boom swing
l Aim device
n Raw val
n Value
n Calibrate
n Offset
n Coefficient
The sensors for the angle instrument can be reset in the Calibration menu.
n Be sure to adjust the cabin's aim device directly forward 90° towards the cabin wind-
screen.
n Adjust the boom straight forward so that it is parallel with the cabin's aim device inside
the cabin.
n Use a spirit level and adjust the feeder vertically in both feed swing and feed tilt
modes.
n Now the sensors can be reset by selecting the relevant sensor and resetting by press-
ing the Enter key.
