SIP User's Manual 144 Document #: LTRT-65412
MP-11x & MP-124
¾ To configure Automatic Dialing:
1. Open the 'Automatic Dialing' page (Configuration tab > Protocol Configuration
menu > Endpoint Settings submenu > Automatic Dialing page item).

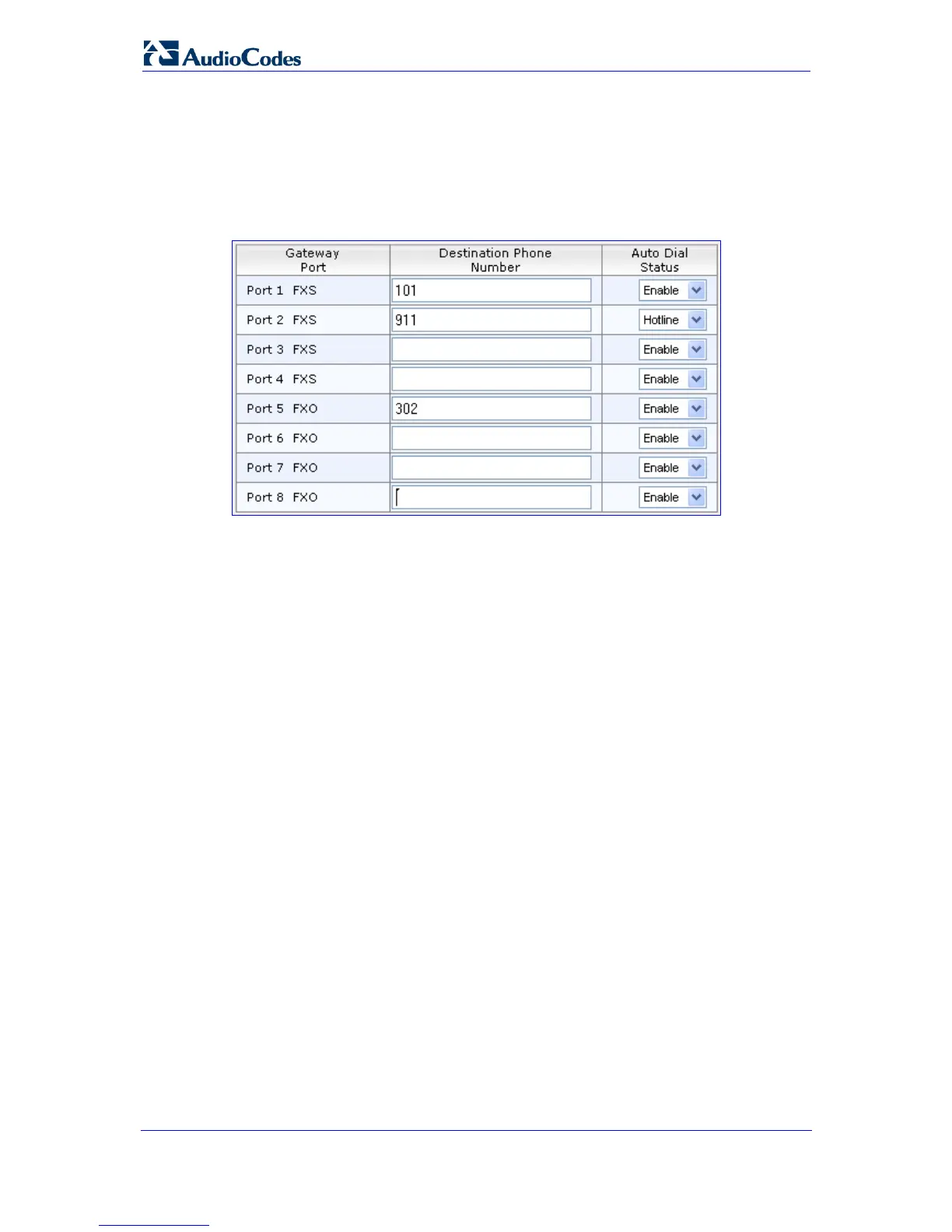

Figure 3-83: Automatic Dialing Page
2. In the 'Destination Phone Number' field corresponding to a port, enter the telephone
number that you want automatically dialed.
3. From the 'Auto Dial Status' drop-down list, select one of the following:
• Enable [1]: The number in the 'Destination Phone Number' field is automatically
dialed if the phone is off-hooked (for FXS interfaces) or a ring signal (from
PBX/PSTN switch) is generated to a port (FXO interfaces).
• Disable [0]: The automatic dialing feature for the specific port is disabled (i.e., the
number in the 'Destination Phone Number' field is ignored).
• Hotline [2]: When a phone is off-hooked and no digit is dialed for a user-defined
interval (Hotline Dial Tone Duration - refer to ''Configuring DTMF and Dialing
Parameters'' on page 93),
the number in the 'Destination Phone Number' field is
automatically dialed (applies to FXS and FXO interfaces).
4. Click the Submit button to save your changes.
5. To save the changes to flash memory, refer to ''Saving Configuration'' on page 167.
3.3.4.9.3 Configuring Caller Display Information
The 'Caller Display Information' page allows you to enable the device to send Caller ID
information to IP when a call is made. The called party can use this information for caller
identification. The information configured in this page is sent in an INVITE message in the
'From' header. For information on Caller ID restriction according to destination / source
prefixes, refer to ''Configuring the Number Manipulation Tables'' on page 124.
