AudioCodes MP-124 User Manual

Version 5.8 443 September 2009
SIP User's Manual 9. IP Telephony Capabilities

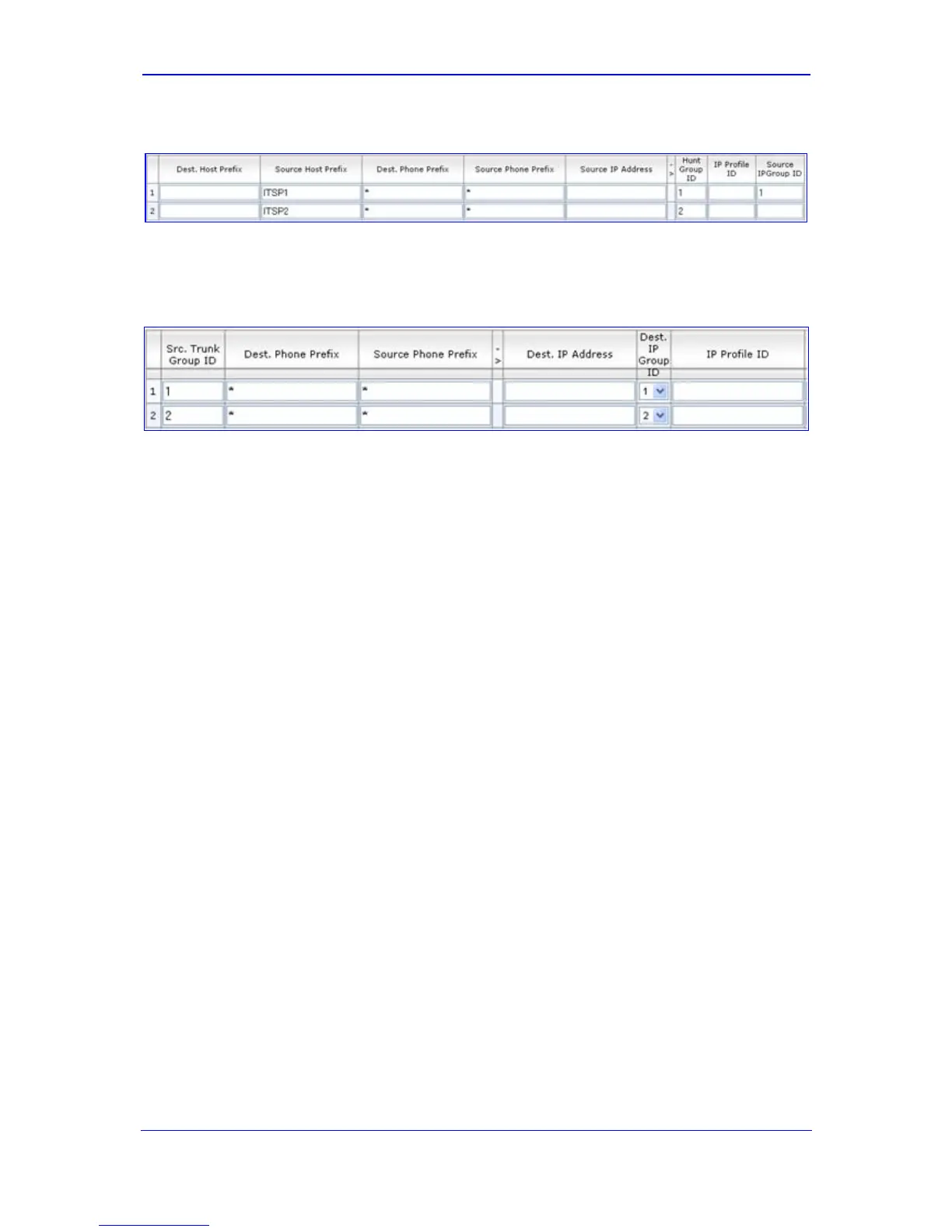

Figure 9-22: Configuring IP to Hunt Group Routing
9. In the 'Tel to IP Routing' page (refer to ''Configuring the Tel to IP Routing Table'' on
page 131), configure Tel-to-IP routing rules
for calls from Hunt Group #1 to IP Group
#1, and from Hunt Group #2 to IP Group #2.
Figure 9-23: Configuring Tel to IP Routing

AudioCodes MP-124 Specifications

General

Model	MP-124
Category	Gateway
Analog Ports	24 FXS
Ethernet Ports	2
Protocol Support	SIP, H.323
Fax Support	T.38, G.711 pass-through
Power Supply	100-240VAC, 50-60Hz
Operating Temperature	0°C to 40°C
Voice Codecs	G.711, G.729, G.723.1, G.726
Management	SNMP
Storage Temperature	-20°C to 70°C
Humidity	10% to 90%, non-condensing
Network Interface	10/100Base-T Ethernet
