AutomationDirect DL205 User Manual

DL205 User Manual, 4th Edition, Rev. D
3-8
Chapter 3: CPU Specifications and Operations
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D

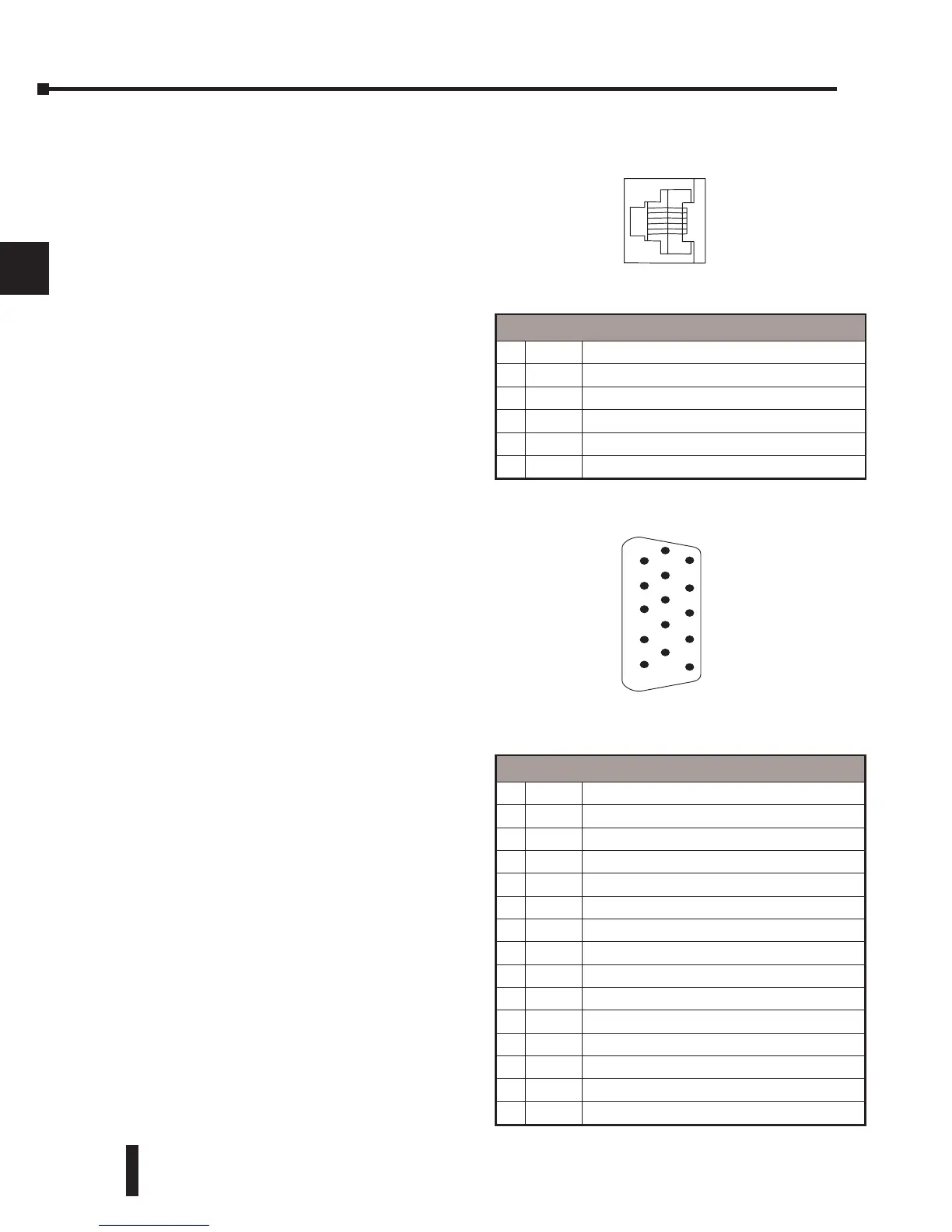

Port 2 Specifications
The operating parameters for Port 2 on the DL240 CPU are configurable using Aux functions
on a programming device.
• 6-Pin female modular (RJ12 phone jack)
type connector
• K–sequence protocol, DirectNET (slave),
• RS-232, Up to 19.2K baud
• Address selectable (1–90)
• Connect to DirectSOFT, D2–HPP,
DV-1000, HMI, or DirectNET master
• 8 data bits, one start, one stop
• Asynchronous, Half–duplex, DTE
• Odd or no parity
Port 2 Specifications
Port 2 on the DL250-1 and DL260 CPUs
is located on the 15-pin D-shell connector. It is configurable using AUX functions on a
programming device. This applies to the
DL250 as well.
• 15-Pin female D type connector
• Protocol: K-sequence, DirectNET Master/
Slave, Modbus RTU Master/Slave, Remote
I/O, (ASCII IN/OUT DL260 only)
• RS-232, non-isolated, distance within 15m
(approximately 50ft)
• RS-422, non-isolated, distance within
1000 m (approximately 3280ft)
• RS-485, non–isolated, distance within
1000m (DL260 only
• Up to 38.4 K baud
• Address selectable (1–90)
• Connects to DirectSOFT, D2–HPP,
operator interfaces, any DirectNET or
Modbus master/slave, (ASCII devices-DL260
only)
• 8 data bits, one start, one stop
• Asynchronous, Half–duplex, DTE Remote
I/O
• Odd/even/none parity
Port 2 Pin Descriptions (DL250–1 / DL260)
1 5V 5VDC
2 TXD2 Transmit Data (RS-232)
3 RXD2 Receive Data (RS-232)
4 RTS2 Ready to Send (RS–232)
5 CTS2 Clear to Send (RS–232)
6 RXD2 – Receive Data – (RS–422) (RS–485 DL260)
7 0V Logic Ground
8 0V Logic Ground
9 TXD2 + Transmit Data + (RS–422) (RS–485 DL260)
10 TXD2 – Transmit Data – (RS–422) (RS–485 DL260)
11 RTS2 + Request to Send + (RS–422) (RS–485 DL260)
12 RTS2 – Request to Send – (RS–422)(RS–485 DL260)
13 RXD2 + Receive Data + (RS–422) (RS–485 DL260)
14 CTS2 + Clear to Send + (RS422) (RS–485 DL260)
15 CTS2 – Clear to Send – (RS–422) (RS–485 DL260)
Port 2 Pin Descriptions (DL240 only)
1 0V Power (–) connection (GND)
2 5V Power (+) connection
3 RXD Receive Data (RS-232)
4 TXD Transmit Data (RS-232)
5 RTS Request to Send
6 0V Power (–) connection (GND)
6-pin Female
Modular Connector
1
6
15-pin Female
D Connector
1
6
11
5
10
15




230
240
250-1
260




230
240
250-1
260
