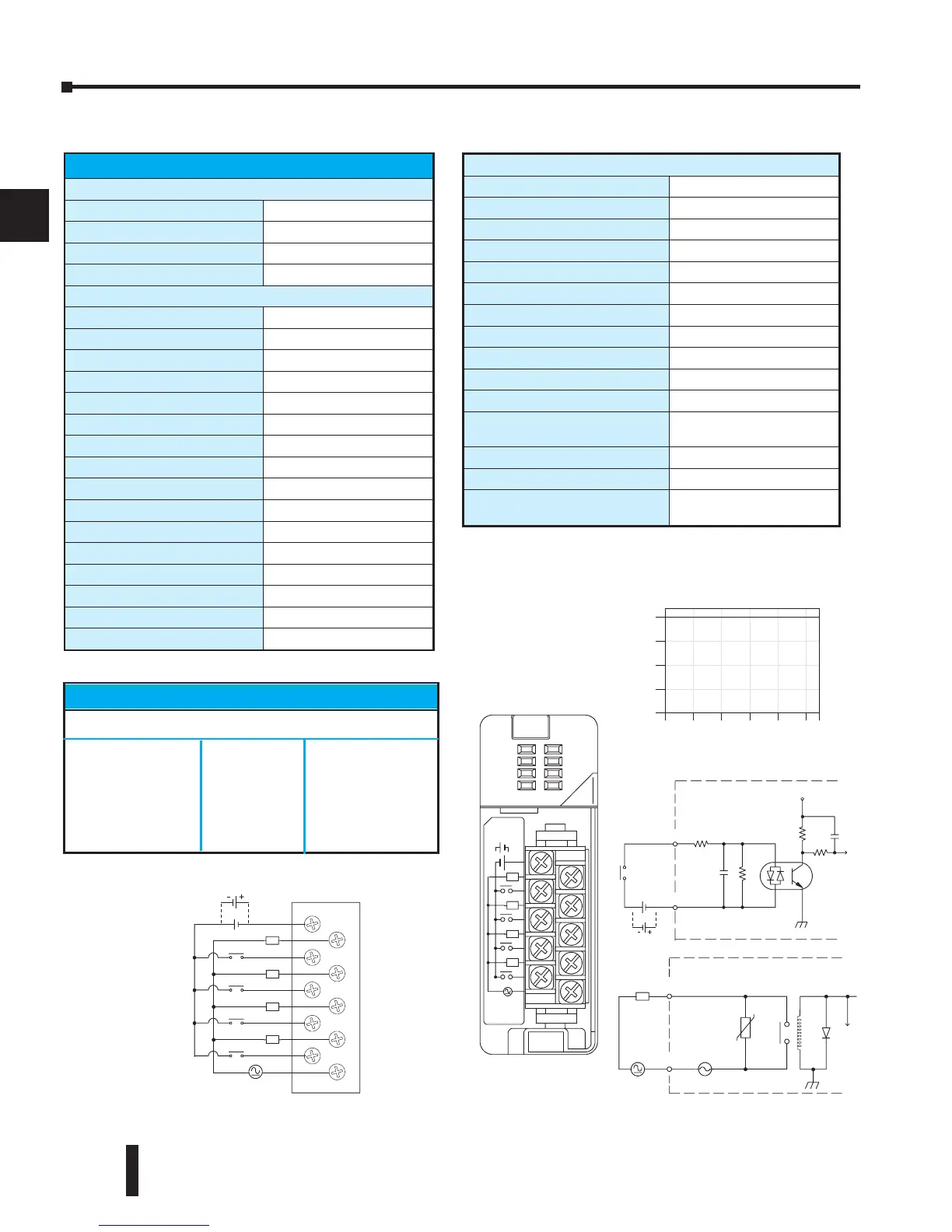

D2–08CDR, 4 pt. DC Input / 4 pt. Relay Output
CA
0
0
1
1
2
2
3
3
CB
D2-- 08CDR
20-- 28VDC
8mA
L
IN/24VDC
D2-- 08CDR
RELAY
0
1
2
3
0
1
2
3
OUT
AB
0
1
2
3
4
Points
Out-
puts
1A /Pt.
Derating Chart
COM
OUTPUT
To LE
D
Internal modulecircuitry
6.3A
5--240 VAC
L
5--30VDC
CA
O
0
1
2
3
1
2
3
CB
L
5--240 VAC
5--30VDC
0102030405055
AmbientTemperature (°C/°F )
32 50 68 86 104 122131
C°
F°
L
L
L
5--240VAC
1A 50/60Hz
5--30VDC
5mA--1A
Inputs
5mA/
Pt.
Optical
COM
Isolator
INPUT
24VDC
V+
To LE D
Internal module circuitry
+
L
L
L
24VDC
+--
Sink
Source
Sink
Source
D2-08CDR 4-pt. DC In / 4pt. Relay Out
General Specifications
Base Power Required 5VDC
200mA
Terminal Type (included)
Removable; D2-8IOCON
Status Indicator
Logic side
Weight
3.5 oz. (100 g)
Input Specifications
Inputs per Module
4 (sink/source)
Input Points Consumed
8 (only first 4-pts. are used)
Commons per Module
1
Input Voltage Range
20–28 VDC
Peak Voltage
30VDC
ON Voltage Level
19VDC minimum
OFF Voltage Level
7VDC maximum
AC Frequency
N/A
Input Impedance
4.7 kq
Input Current
5mA @ 24VDC
Maximum Current
8mA @ 30VDC
Minimum ON Current
4.5 mA
Maximum OFF Current
1.5 mA
OFF to ON Response
1 to 10 ms
ON to OFF Response
1 to 10 ms
Fuses (input circuits)
None
Output Specifications
Outputs per Module
4
Outputs Points Consumed
8 (only first 4-pts. are used)
Commons per Module
1
Output Type
Relay, form A (SPST)
Operating Voltage
5–30 VDC; 5–240 VAC
Peak Voltage
30VDC; 264VAC
ON Voltage Drop
N/A
AC Frequency
47 to 63 Hz
Minimum Load Current
5mA @ 5VDC
Max Load Current (resistive)
1A/point ; 4A/module
Max Leakage Current
0.1 mA @ 264VAC
Max Inrush Current
3A for < 100ms
10A for < 10ms (common)
OFF to ON Response
12ms
ON to OFF Response
10ms
Fuses (output circuits)
1 (6.3 A slow blow, replaceable);
Order D2-FUSE-3 (5 per pack)
Typical Relay Life (Operations)
Voltage/Load Current Closures
24VDC Resistive 1A 500k
24VDC Solenoid 1A 100k
110VAC Resistive 1A 500k
110VAC Solenoid 1A 200k
220VAC Resistive 1A 350k
220VAC Solenoid 1A 100k
