AutomationDirect DL205 User Manual

DL205 User Manual, 4th Edition, Rev. D
2-42
Chapter 2: Installation, Wiring and Specifications
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D

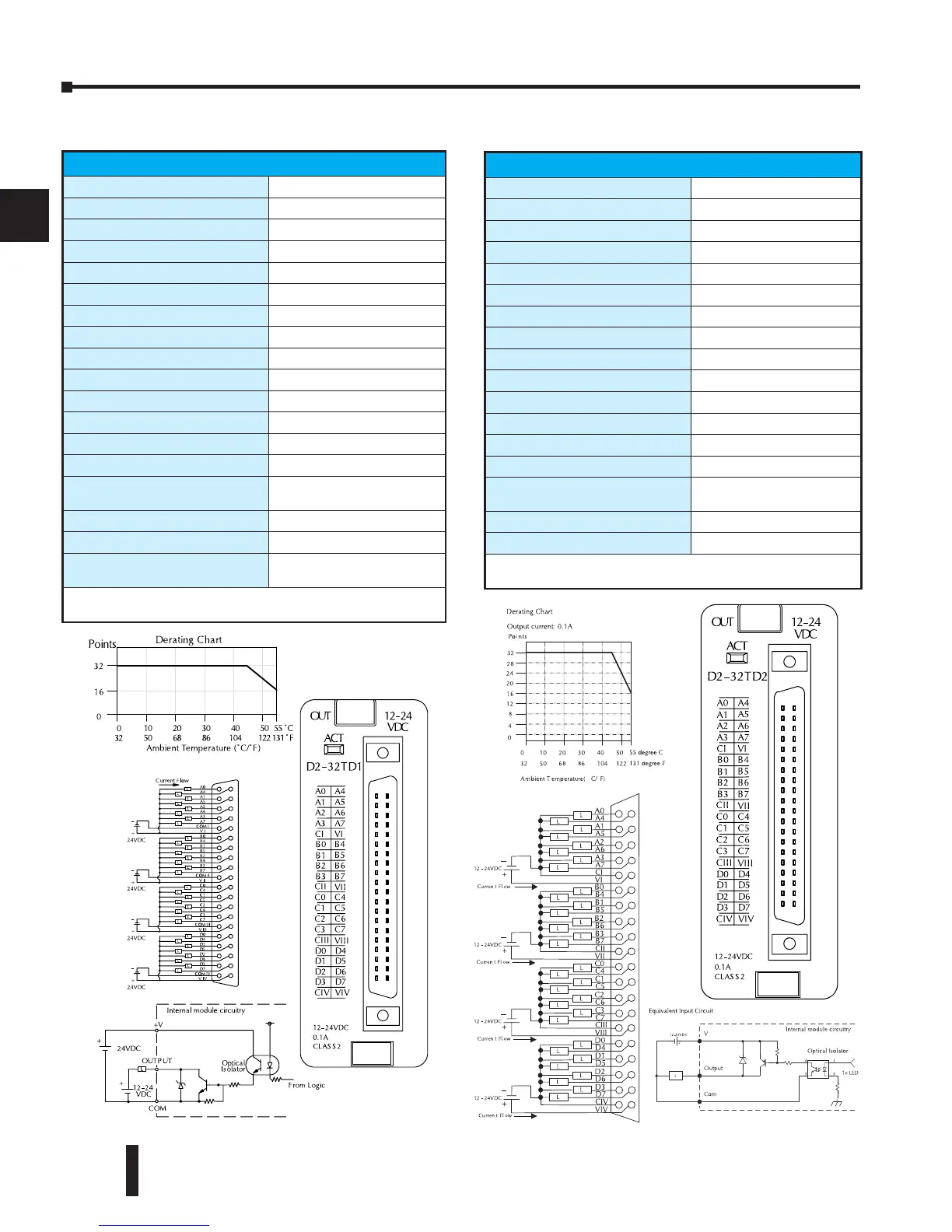

D2–32TD1, DC Output
D2–32TD2, DC Output
D2-32TD1 DC Output
Outputs per Module
32 (current sinking)
Commons per Module
4 (8 I/O terminal points)
Output Type
NPN open collector
Operating Voltage
12–24 VDC
Peak Voltage
30VDC
ON Voltage Drop
0.5 VDC maximum
Minimum Load Current
0.2 mA
Max Load Current
0.1 A/point; 3.2 A per module
Max Leakage Current
0.1 mA @ 30VDC
Max Inrush Current
150mA for 10ms
Base Power Required 5VDC
350mA
OFF to ON Response
0.5 ms
ON to OFF Response
0.5 ms
Terminal Type (not included)
Removable 40-pin connector
1
Status Indicator
Module activity
(no I/O status indicators)
Weight
2.1 oz. (60g)
Fuses
None
External DC Power Required
20–28 VDC max.
120mA (all points on)
1
Connector sold separately.
See Terminal Blocks and Wiring for wiring options.
D2-32TD2 DC Output
Outputs per Module
32 (current sourcing)
Commons per Module
4 (8 I/O terminal points)
Output Type
Transistor
Operating Voltage
12 to 24 VDC
Peak Voltage
30VDC
ON Voltage Drop
0.5 VDC @ 0.1 A
Minimum Load Current
0.2 mA
Max Load Current
0.1 A/point; 0.8 A/common
Max Leakage Current
0.1 mA @ 30VDC
Max Inrush Current
150mA @ 10ms
Base Power Required 5VDC
350mA
OFF to ON Response
0.5 ms
ON to OFF Response
0.5 ms
Terminal Type (not included)
Removable 40-pin connector
1
Status Indicator
Module activity (no I/O status
indicators)
Weight
2.1 oz (60g)
Fuses
None
1
Connector sold separately.
See Terminal Blocks and Wiring for wiring options.
