AutomationDirect DL205 User Manual

DL205 User Manual, 4th Edition, Rev. D
2-43
Chapter 2: Installation, Wiring and Specifications
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D

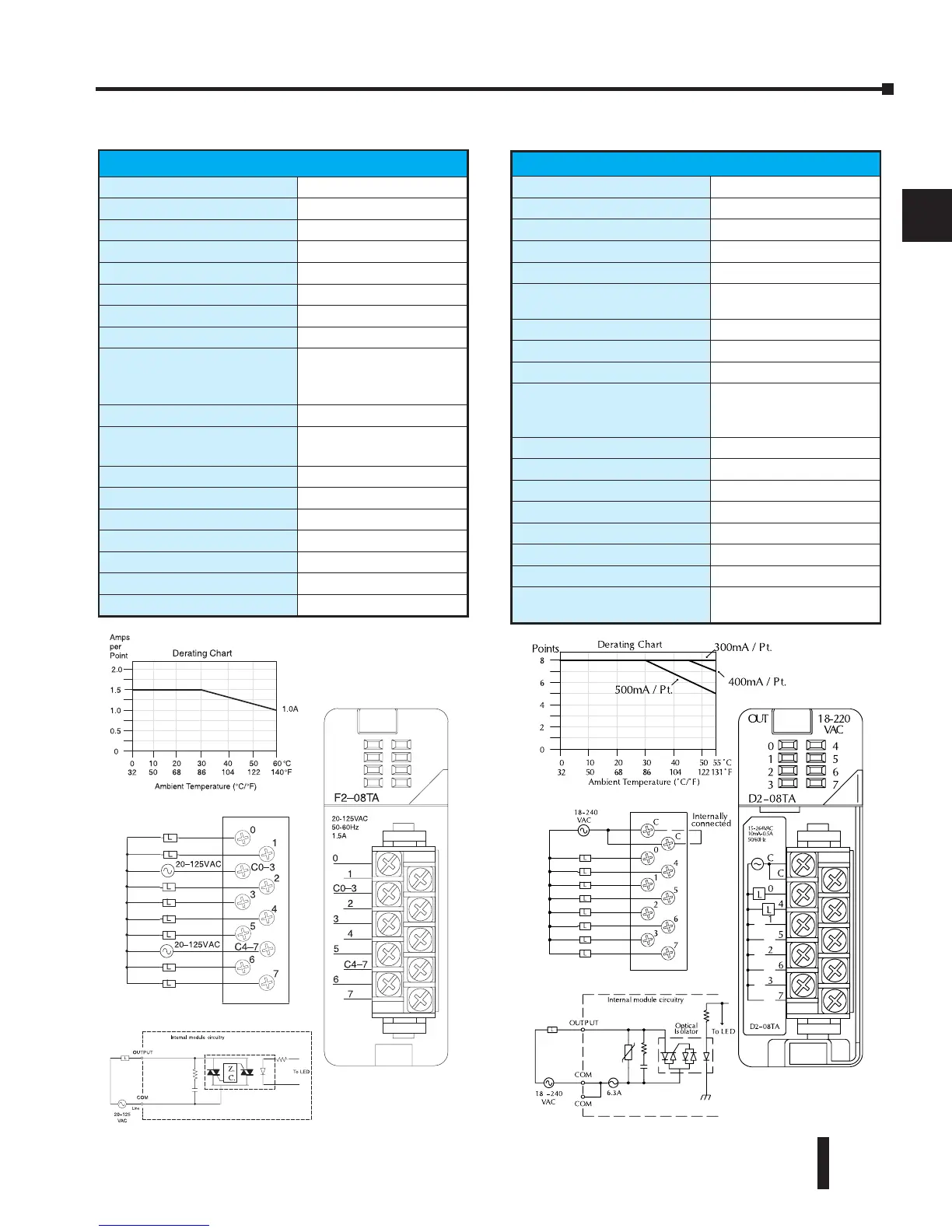

F2–08TA, AC Output D2–08TA, AC Output
F2-08TA AC Output
Outputs per Module
8
Commons per Module
2 (Isolated)
Output Type
SSR (Triac with zero crossover)
Operating Voltage
24–140 VAC
Peak Voltage
140VAC
ON Voltage Drop
1.6 V(rms) @ 1.5 A
AC Frequency
47 to 63 Hz
Minimum Load Current
50 mA
Max Load Current
1.5 A / pt @ 30ºC
1.0 A / pt @ 60ºC
4.0 A / common; 8.0 A / module
@ 60ºC
Max Leakage Current
0.7 mA (rms)
Peak One Cycle Surge
Current
15A
Base Power Required 5VDC
250mA
OFF to ON Response
0.5 ms - 1/2 cycle
ON to OFF Response
0.5 ms - 1/2 cycle
Terminal Type (included)
Removable; D2-8IOCON
Status Indicator
Logic side
Weight
3.5 oz.
Fuses
None
D2-08TA AC Output
Outputs per Module
8
Commons per Module
1 (2 I/O terminal points)
Output Type
SSR (Triac)
Operating Voltage
15–264 VAC
Peak Voltage
264VAC
ON Voltage Drop
< 1.5 VAC (>0.1 A)
< 3.0 VAC (<0.1 A)
AC Frequency
47 to 63Hz
Minimum Load Current
10mA
Max Load Current
0.5 A/point; 4A/common
Max Leakage Current
4mA (264VAC, 60Hz)
1.2 mA (100VAC, 60Hz)
0.9 mA (100VAC, 50Hz)
Max Inrush Current
10A for 10ms
Base Power Required 5VDC
250mA
OFF to ON Response
1 ms
ON to OFF Response
1 ms + 1/2 cycle
Terminal Type (included)
Removable; D2-8IOCON
Status Indicator
Logic side
Weight
2.8 oz. (80g)
Fuses
1 per common, 6.3 A slow blow,
non-replaceable
