DL205 User Manual, 4th Edition, Rev. D
4-3
Chapter 4: System Design and Configuration
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D

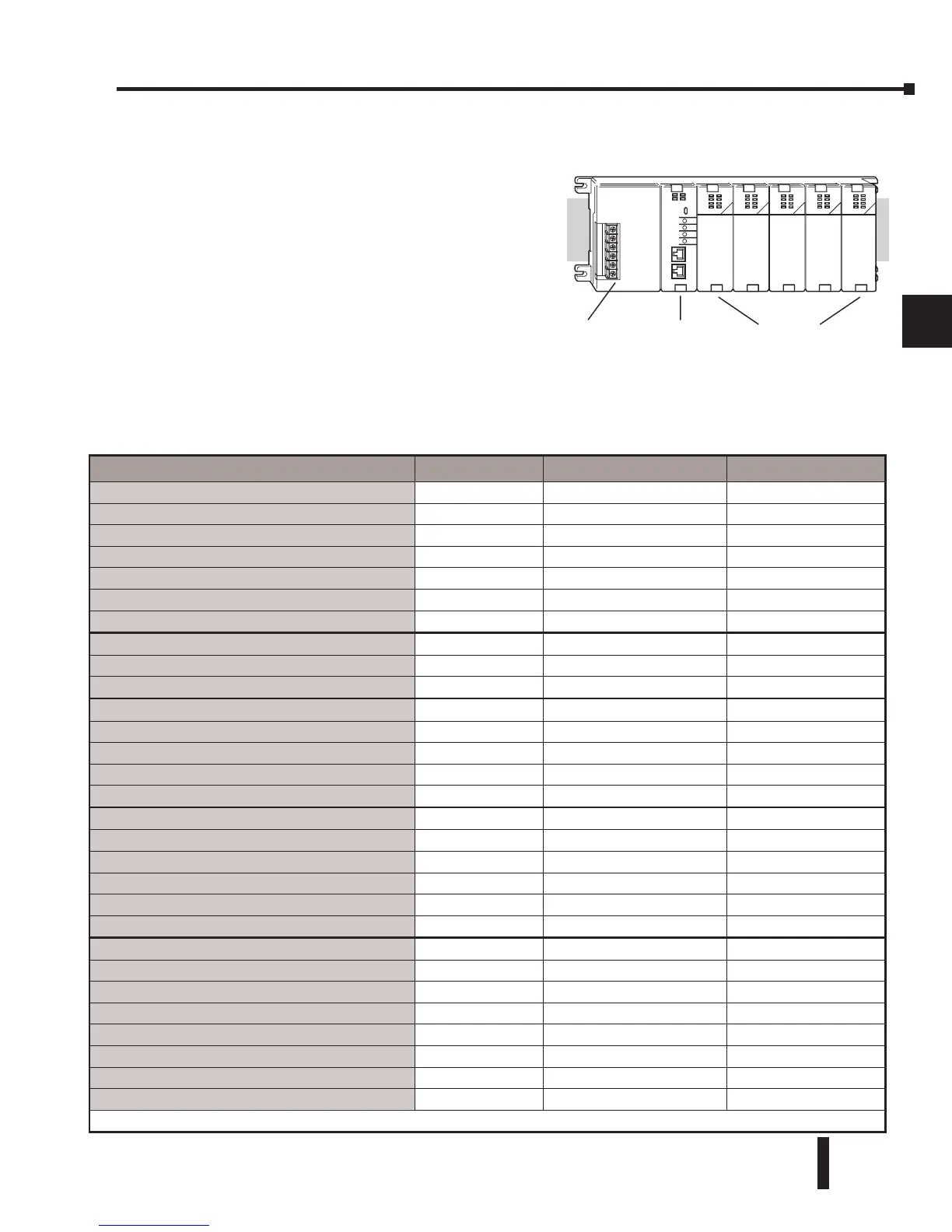

Module Placement
Slot Numbering
The DL205 bases each provide different
numbers of slots for use with the I/O
modules. You may notice the bases refer
to 3-slot, 4-slot, etc. One of the slots is
dedicated to the CPU, so you always have
one less I/O slot. For example, you have five
I/O slots with a 6-slot base. The I/O slots
are numbered 0 – 4. The CPU slot always
contains a CPU or a base controller (EBC)
or Remote Slave and is not numbered.
Module Placement Restrictions
The following table lists the valid locations for all types of modules in a DL205 system.
Module/Unit Local CPU Base Local Expansion Base Remote I/O Base
CPUs
CPU Slot Only
DC Input Modules
A
A A
AC Input Modules
A A A
DC Output Modules
A A A
AC Output Modules
A A A
Relay Output Modules
A A A
Analog Input and Output Modules
A A A
Local Expansion
Base Expansion Unit
A A
Base Controller Module
CPU Slot Only
Serial Remote I/O
Remote Master
A (not Slot O)
Remote Slave Unit
CPU Slot Only
Ethernet Remote Master
A (not Slot O)
Ethernet Slave (EBC)
CPU Slot Only
CPU Interface
Ethernet Base Controller
CPU Slot Only CPU Slot Only*
WinPLC
CPU Slot Only
DeviceNet
CPU Slot Only
A
Profibus
CPU Slot Only
SDS
CPU Slot Only
Specialty Modules
Counter Interface (CTRINT)
Slot 0 Only
Counter I/O (CTRIO)
A
A *
Data Communications
A (not Slot O)
Ethernet Communications
A (not Slot O)
BASIC CoProcessor
A (not Slot O)
Simulator
A A A
Filler
A A A
*When used in H2–ERM(100) Ethernet Remote I/O systems.
