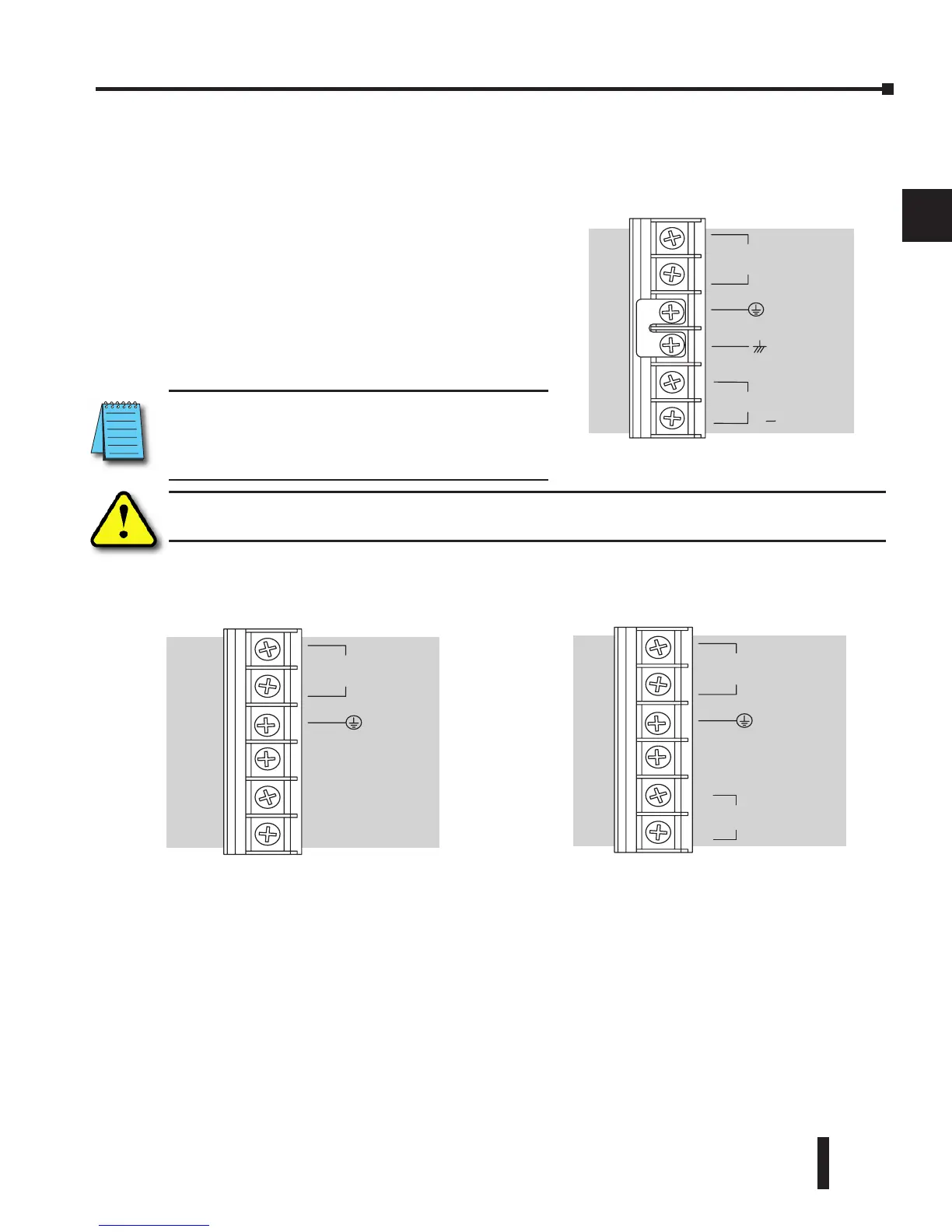

Base Wiring Guidelines
Base Wiring
The diagrams show the terminal connections
located on the power supply of the DL205
bases. The base terminals can accept up to 16
AWG. You may be able to use larger wiring
depending on the type of wire used, but 16 AWG
is the recommended size. Do not overtighten the
connector screws; the recommended torque value
is 7.81 lb·in (0.882 N·m).
NOTE: You can connect either a 115VAC or 220VAC
supply to the AC terminals. Special wiring or jumpers
are not required as with some of the other DirectLOGIC
products.
WARNING: Once the power wiring is connected, install the plastic protective cover. When the cover is
removed there is a risk of electrical shock if you accidentally touch the wiring or wiring terminals.
125 VDC Base Terminal Strip12/24 VDC Base Terminal Strip
G
12 – 24 VDC
+
–
115 – 264 VDC
G
24 VDC OUT,
0.3A
–
+
–
+
110/220 VAC Base Terminal Stri
p
85 – 264 VAC
G
24 VDC OUT,
0.3A
LG
+
