AutomationDirect DL205 User Manual

DL205 User Manual, 4th Edition, Rev. D
3-56
Chapter 3: CPU Specifications and Operations
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D

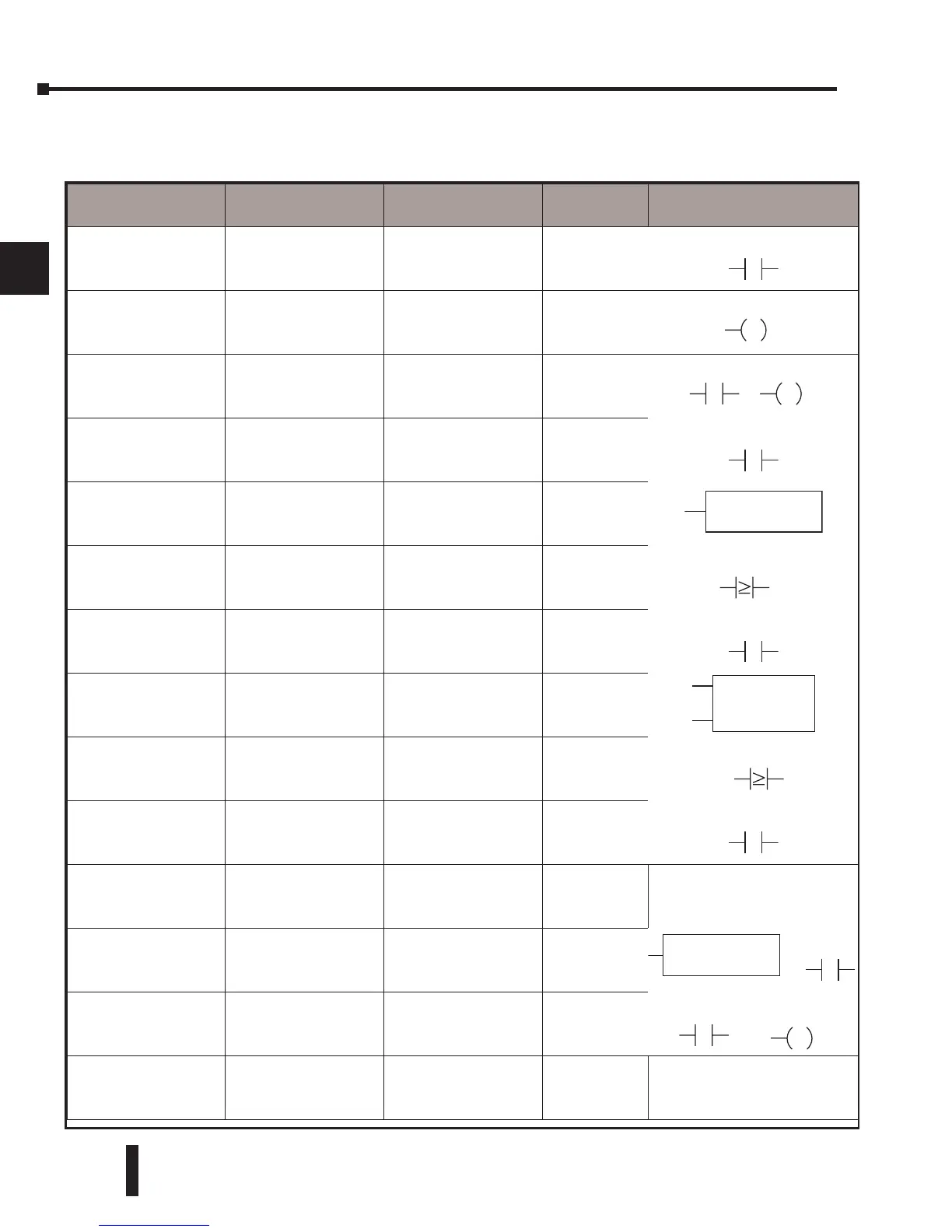

DL260 Memory Map
Memory Type
Discrete Memory
Reference (octal)
Word Memory
Reference (octal)
Qty.
Decimal
Symbol
Input Points X0 – X1777 V40400 – V40477 1024
X0
Output Points Y0 – Y1777 V40500 – V40577 1024
Y0
Control Relays C0 – C3777 V40600 – V40777 2048
C0C0
Special Relays SP0 – SP777 V41200 – V41237 512
SP0
Timers T0 – T377 256
TMR
K100
T0
Timer Current Values None V0 – V377 256
V0 K100
Timer Status Bits T0 – T377 V41100 – V41117 256
T0
Counters CT0 – CT377 256
CNT
K10
CT0
Counter Current Values None V1000 – V1377 256
V1000 K100
Counter Status Bits CT0 – CT377 V41140 – V41157 256
CT0
Data Words None
V400 – V777
V1400 – V7377 V10000–
V35777
14.6K
None specific, used with many
instructions
Stages S0 – S1777 V41000 – V41077 1024
S0
SG
S001
Remote Input and
Output Points
GX0 – GX3777
GY0 – GY3777
V40000 – V40177
V40200–V40377
2048
2048
GX0
GY0
System parameters None
V7400–V7777
V36000–V37777
1.2K
None specific, used for various
purposes
