AutomationDirect DL205 User Manual

DL205 User Manual, 4th Edition, Rev. D
2-34
Chapter 2: Installation, Wiring and Specifications
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D

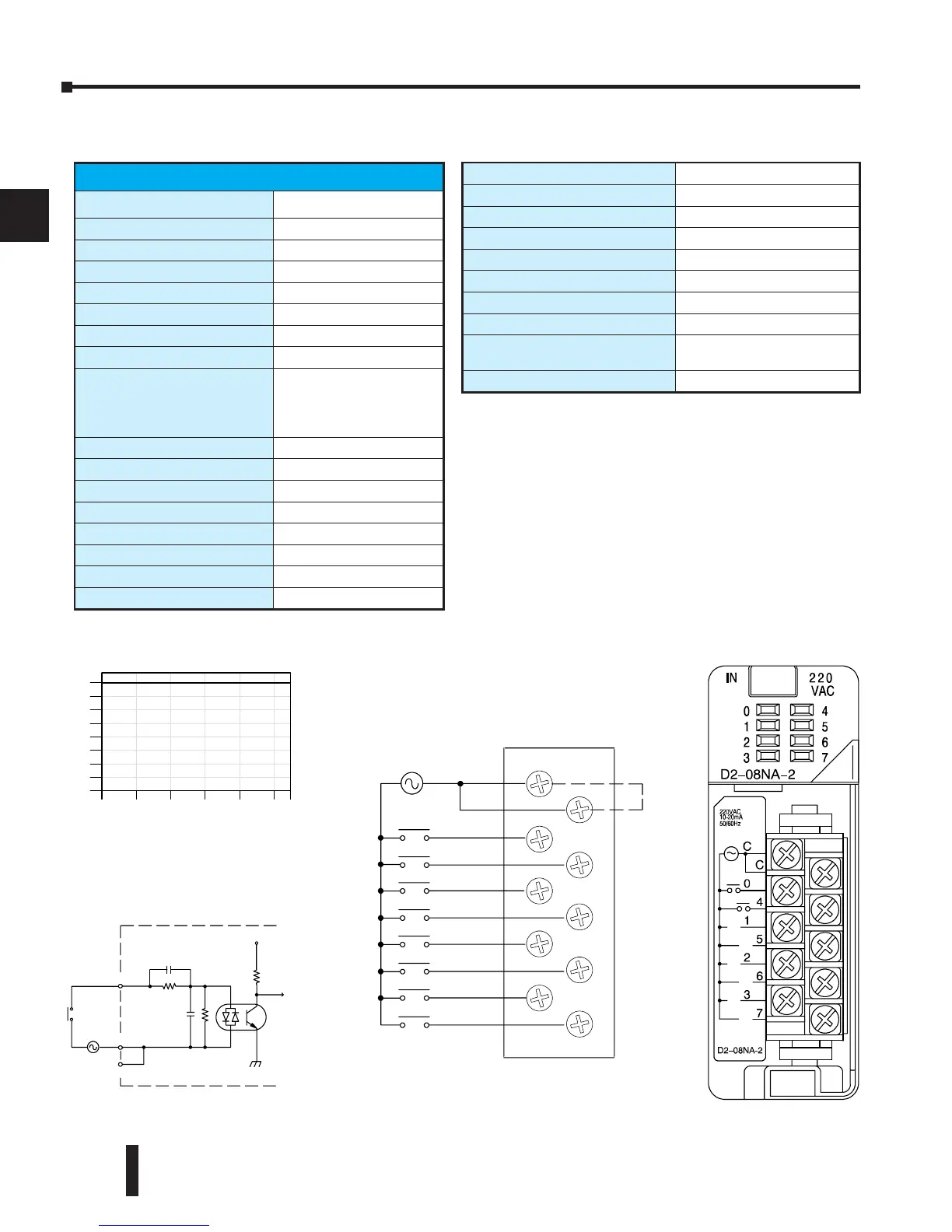

D2-08NA-2, AC Input
D2-08NA-2 AC Input
Inputs per Module
8
Commons per Module
1 (2 I/O terminal points)
Input Voltage Range
170–265 VAC
Peak Voltage
265VAC
ON Voltage Level
150VAC minimum
OFF Voltage Level
40VAC maximum
AC Frequency
47–63 Hz
Input Impedance
18kq @ 60Hz
Input Current
9mA @ 220VAC, 50Hz
11mA @ 265VAC, 50Hz
10mA @ 220VAC, 60Hz
12mA @ 265VAC, 60Hz
Minimum ON Current
10mA
Maximum OFF Current
2mA
Base Power Required 5VDC
100mA
OFF to ON Response
5 to 30 ms
ON to OFF Response
10 to 50 ms
Terminal Type (included)
Removable; D2-8IOCON
Status Indicator
Logic side
Weight
2.5 oz. (70g)
Operating Temperature
32ºF to 131ºF (0º to 55ºC)
Storage Temperature
-4ºF to 158ºF (-20ºC to 70ºC)
Humidity
35% to 95% (non-condensing)
Atmosphere
No corrosive gases permitted
Vibration
MIL STD 810C 514.2
Shock
MIL STD 810C 516.2
Insulation Withstand Voltage
1,500VAC 1 minute (COM-GND)
Insulation Resistance
10M Q @ 500VDC
Noise Immunity
NEMA 1,500V 1 minute
SANKI 1,000V 1 minute
RFI
150MHz, 430MHz
Optical
COM
Isolator
INPUT
220VAC
V+
To LED
Internal module circuitry
COM
C
C
0
1
2
3
4
5
6
7
Internally
connected
220VAC
0
2
4
6
8
0
10 20 30 40 50 55
AmbientTemperature (˚C/˚F)
32
50 68 86 104 122131
C˚
F˚
Po
ints
Derating Chart
