DL205 User Manual, 4th Edition, Rev. D
2-49
Chapter 2: Installation, Wiring and Specifications
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D

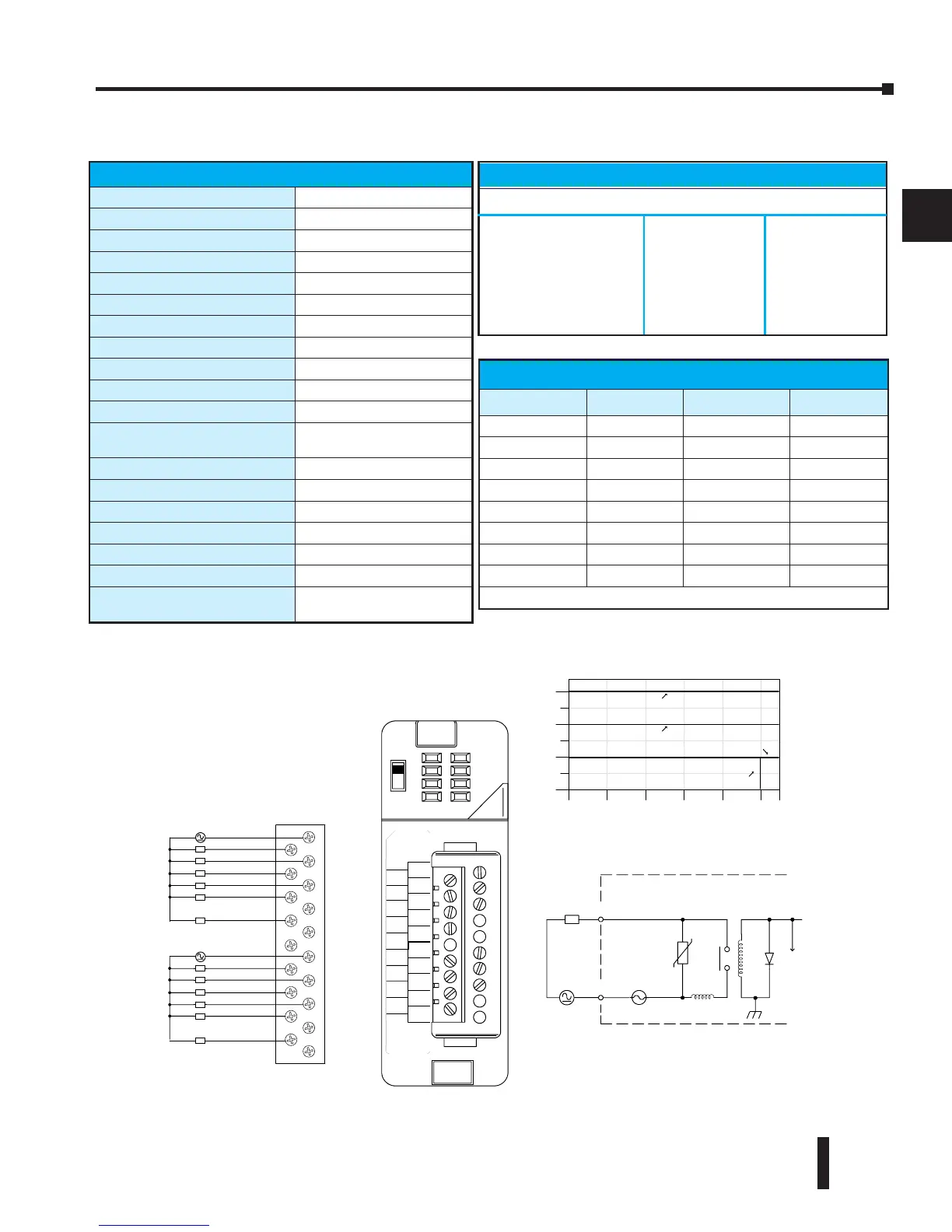

D2–12TR, Relay Output
A
B
5--240VAC
1.5A 50/60Hz
D2-- 12TR
OUTRELAY
D2-- 12TR
0
1
2
3
4
5
CA
4
5
CB
4
5
3
2
1
0
3
2
1
0
5--30VDC
0
4
8
12
Points
COM
OUTPUT
To LED
Internal module circuitry
4A
5--240 VAC
L
5--30VDC
0.5A /Pt.
0102030405055
AmbientTemperature (ËšC/ËšF)
32 50 68 86 104122 131
CËš
FËš
1.5A /Pt.
0.75A/Pt.
5mA--1.5A
0
1
2
3
5
NC
NC
NC
0
1
2
3
CB
4
5
NC
NC
CA
4
L
L
L
L
L
L
L
L
L
L
L
L
5--240 VAC
5--30VDC
5--240 VAC
5--30VDC
1.25A /Pt.
Derating Chart
D2-12TR Relay Output
Outputs per Module
12
Outputs Points Consumed
16 (four unused, see chart below)
Commons per Module
2 (6-pts. per common)
Output Type
Relay, form A (SPST)
Operating Voltage
5–30 VDC; 5–240 VAC
Peak Voltage
30VDC; 264VAC
ON Voltage Drop
N/A
AC Frequency
47 to 60 Hz
Minimum Load Current
5mA @ 5VDC
Max Load Current (resistive)
1.5 A/point; Max of 3A/common
Max Leakage Current
0.1 mA @ 265VAC
Max Inrush Current
Output: 3A for 10ms
Common: 10A for 10ms
Base Power Required 5VDC
450mA
OFF to ON Response
10ms
ON to OFF Response
10ms
Terminal Type (included)
Removable; D2-16IOCON
Status Indicator
Logic side
Weight
4.6 oz. (130g)
Fuses
(2) 4A slow blow, replaceable
Order D2-FUSE-4 (5 per pack)
Typical Relay Life (Operations)
Voltage/Load Current Closures
24VDC Resistive 1A 500k
24VDC Solenoid 1A 100k
110VDC Resistive 1A 500k
110VDC Solenoid 1A 200k
220VAC Resistive 1A 350k
220VAC Solenoid 1A 100k
Addresses Used
Points Used? Points Used?
Yn+0 Yes Yn+10 Yes
Yn+1 Yes Yn+11 Yes
Yn+2 Yes Yn+12 Yes
Yn+3 Yes Yn+13 Yes
Yn+4 Yes Yn+14 Yes
Yn+5 Yes Yn+15 Yes
Yn+6 No Yn+16 No
Yn+7 No Yn+17 No
n is the starting address
