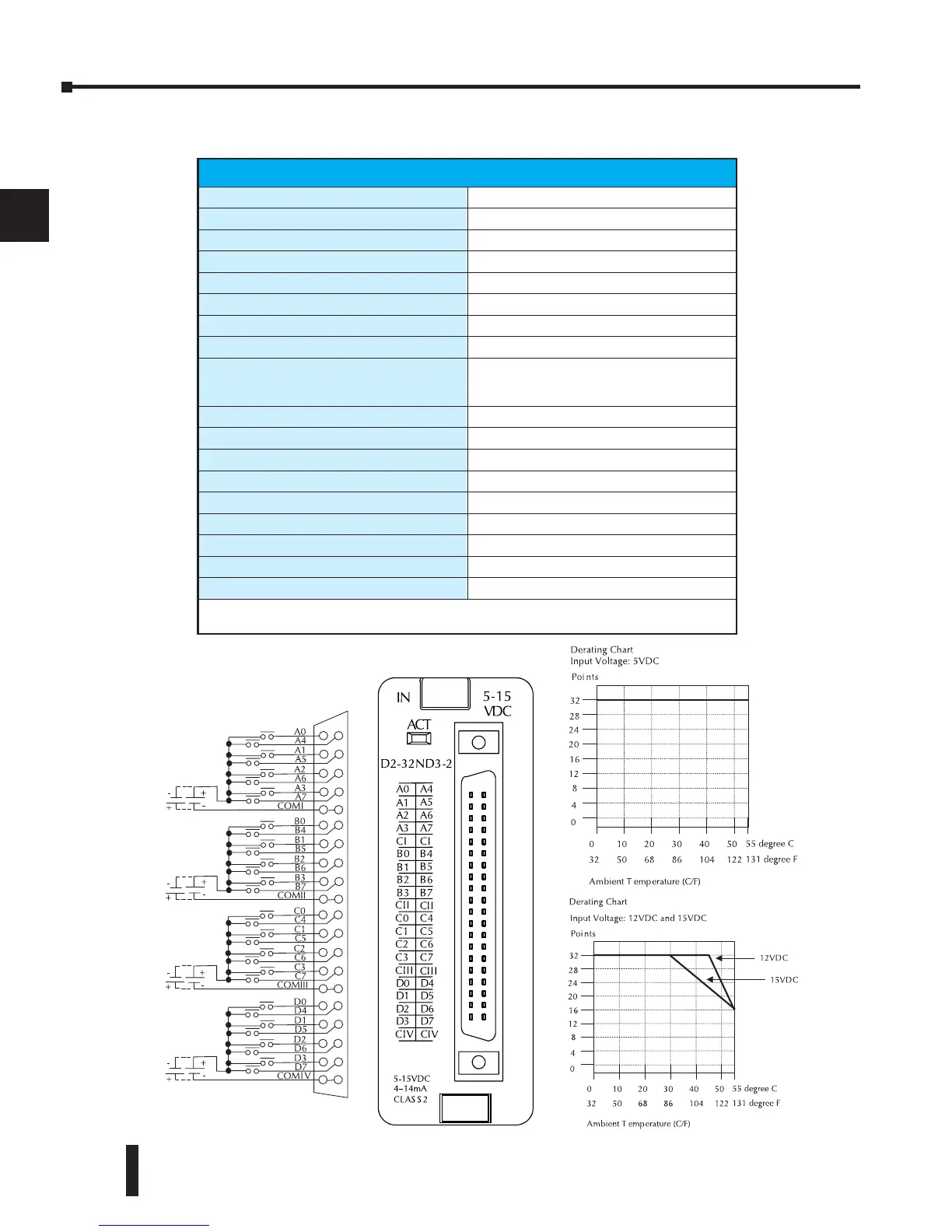

D2–32ND3–2, DC Input
D2-32ND3-2 DC Input
Inputs per Module
32 (Sink/Source)
Commons per Module
4 isolated (8 I/O terminal points / com)
Input Voltage Range
4.50 to 15.6 VDC min. to max.
Peak Voltage
16VDC
ON Voltage Level
4VDC minimum
OFF Voltage Level
2VDC maximum
AC Frequency
N/A
Input Impedance
1.0 kq @ 5–5 VDC
Input Current
4mA @ 5VDC
11mA @ 12VDC
14mA @ 15VDC
Maximum Input Current
16mA @ 15.6 VDC
Minimum ON Current
3mA
Maximum OFF Current
0.5 mA
Base Power Required 5VDC
25mA
OFF to ON Response
3 to 9 ms
ON to OFF Response
3 to 9 ms
Terminal Type (not included)
Removable 40-pin connector
1
Status Indicator
Module activity LED
Weight
2.1 oz. (60g)
1
Connector sold separately.
See Terminal Blocks and Wiring for wiring options.
Sink
Source
5-15VDC
Sink
Source
5-15VDC
Sink
Source
5-15VDC
Sink
Source
5-15VDC
