Chapter 2: Installation, Wiring and Specifications
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D
Derating Chart
24VDC
Ambient Temperature (°C/°F)
0
4
8
12
16
Po
ints
0
1
2
3
5
6
7
24V
0
1
2
3
0V
4
5
6
7
4
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
Internally
connected
12–24VDC
A
B
10.2-26.4
VDC 0.25A
CLASS2
OUT 12-24
F2–16TD1P
VDC
0
1
2
3
4
5
6
7
0V
4
5
6
7
0V
4
5
6
3
2
1
0
24V
3
2
1
0
7
A
B
+
+
When the A/B switch is in the A position,
the LEDs display the output status of the
module’s first 8 output points. Positon B
displays the output status of the mod-
ule’s second group of 8 output points.
0
10 20 30 40 50 55°C
131°F
32 50 68 86 104 122
0V
Optical
Isolator
0V
OUTPUT
12–24
+
Internal module circuitry
L
24V
+
24VDC
VDC
0V
NOTE: Supporting Firmware:
D2-250-1 must be V4.80 or later
D2-260 must be V2.60 or later

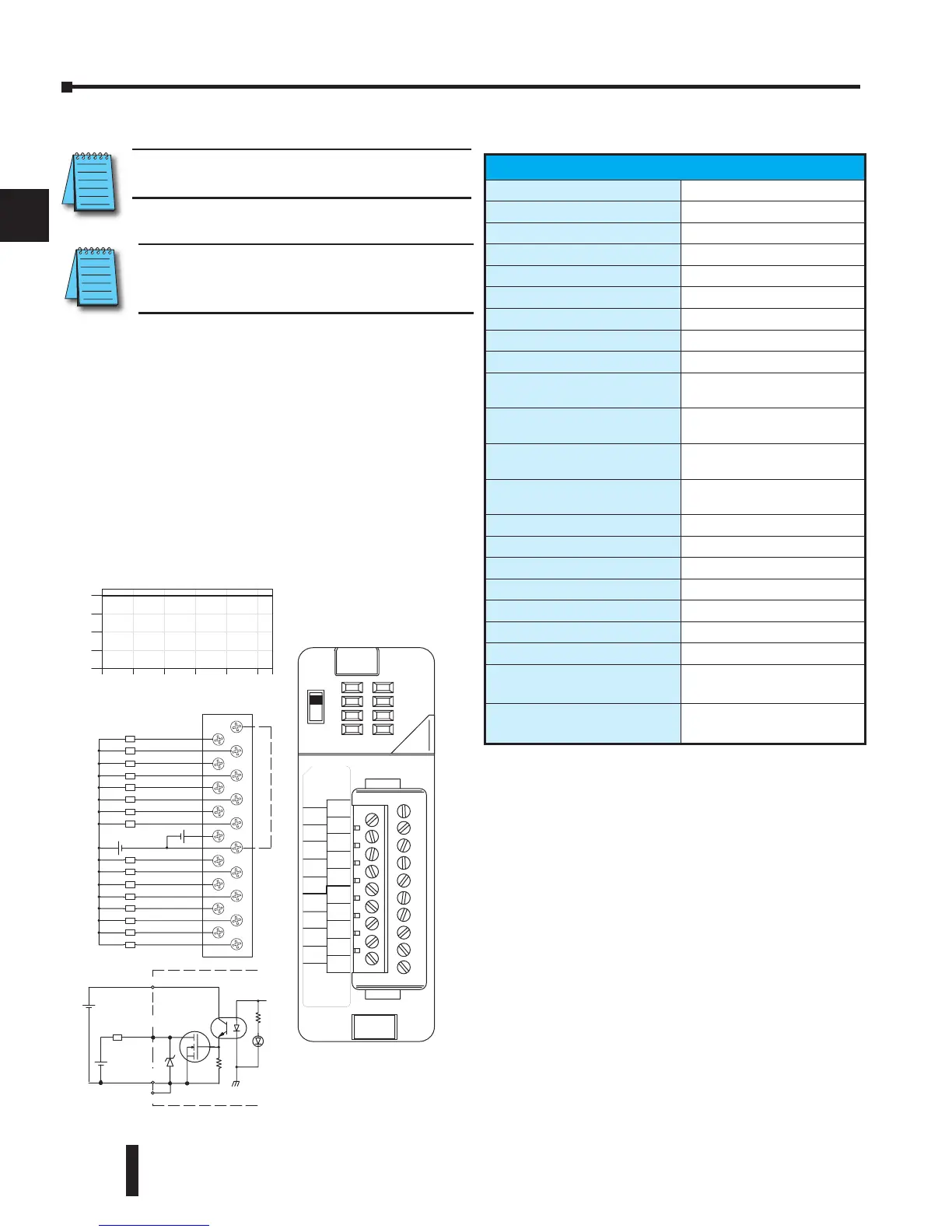

F2–16TD1P, DC Output With Fault Protection
NOTE: Not supported in D2-230, D2-240
and D2-250 CPUs.
F2-16TD1P DC Output with Fault Protection
Inputs per module
16 (status indication)
Outputs per module
16 (current sinking)
Commons per module
1 (2 I/O terminal points)
Output type
NMOS FET (open drain)
Operating voltage
10.2–26.4 VDC, external
Peak voltage
40VDC
AC frequency
N/A
ON voltage drop
0.7 V (output current 0.5 A)
Overcurrent trip
0.6A, min., 1.2A, max.
Minimum load current
0.2mA
Maximum load current
0.25A/point; 4A/common
Max leakage current
0.2mA (load detect enabled);
0.3mA disabled
Max inrush current
150 mA for 10ms
Base power required 5V
70 mA
OFF to ON response
0.5 ms
ON to OFF response
0.5 ms
Terminal type
Removable (D2-16IOCON)
Status indicators
Logic Side
Weight
2.0 oz. (25g)
Fuses
None
External DC required
24VDC ±10% @ 50mA
External DC overvoltage
shutdown
27V, outputs are restored when
voltage is within limits
