DL205 User Manual, 4th Edition, Rev. D
4-24
Chapter 4: System Design and Configuration
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D

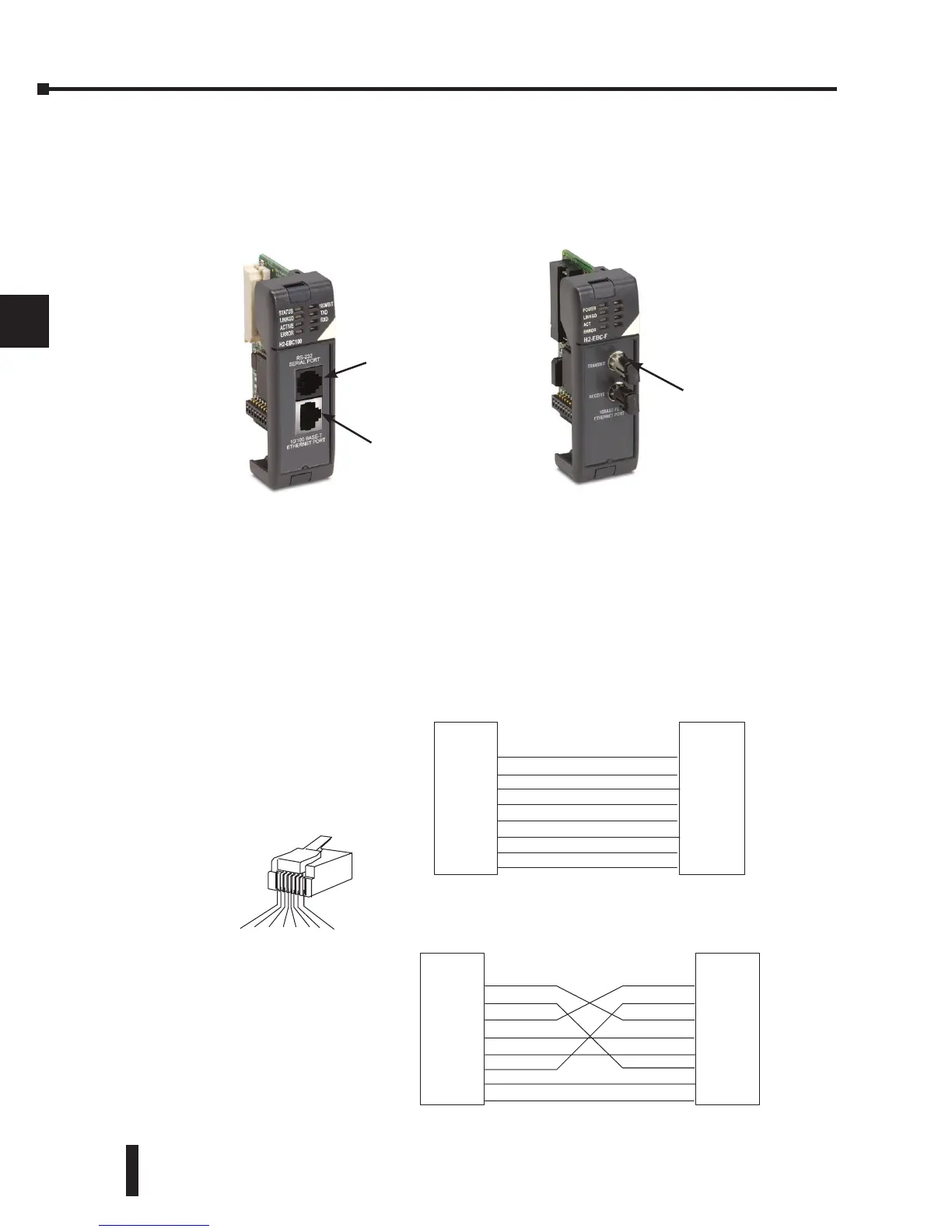

Network Cabling
Of the two types of EBC modules available, one supports the 10/100BaseT standard and the
other one supports the 10BaseFL standard. The 10/100BaseT standard uses twisted pairs of
copper wire conductors and the 10BaseFL standard is used with fiber optic cabling.
RJ45 for
10/100BaseT
RJ12
Serial
Port
RS232
ST-style
Bayonet
for
10BaseFL
10/100BaseT
RJ45
J45
TD– 2
TD+ 1
RD+ 3
4
5
RD– 6
7
8
GRN
GRN/WHT
OR/WHT
OR
BLU
BLU/WHT
BRN/WHT
BRN
GRN
GRN/WHT
OR/WHT
OR
BLU
BLU/WHT
BRN/WHT
BRN
Crossover Cable
2 TD–
1 TD+
3 RD+
4
5
6 RD–
7
8
TD–
TD+
RD+
RD–
34 562187
8-pin RJ45 Connector
(8P8C)
10/100BaseT
The 10BaseT and 100BaseT EBCs have an eight-pin modular jack that accepts RJ45
connectors. UTP Category 5 (CAT5) cable is highly recommended for use with all
Ethernet 10/100BaseT connections. For convenient and reliable networking, purchase
commercially manufactured cables which have the connectors already installed.
To connect an EBC, or a PC, to a hub or repeater, use a patch cable (sometimes called a
straight-through cable). The cable used to connect a PC directly to an EBC or to connect
two hubs is referred to as a crossover cable.
