AutomationDirect DL205 User Manual

DL205 User Manual, 4th Edition, Rev. D
5-38
Chapter 5: Standard RLL Instructions
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D

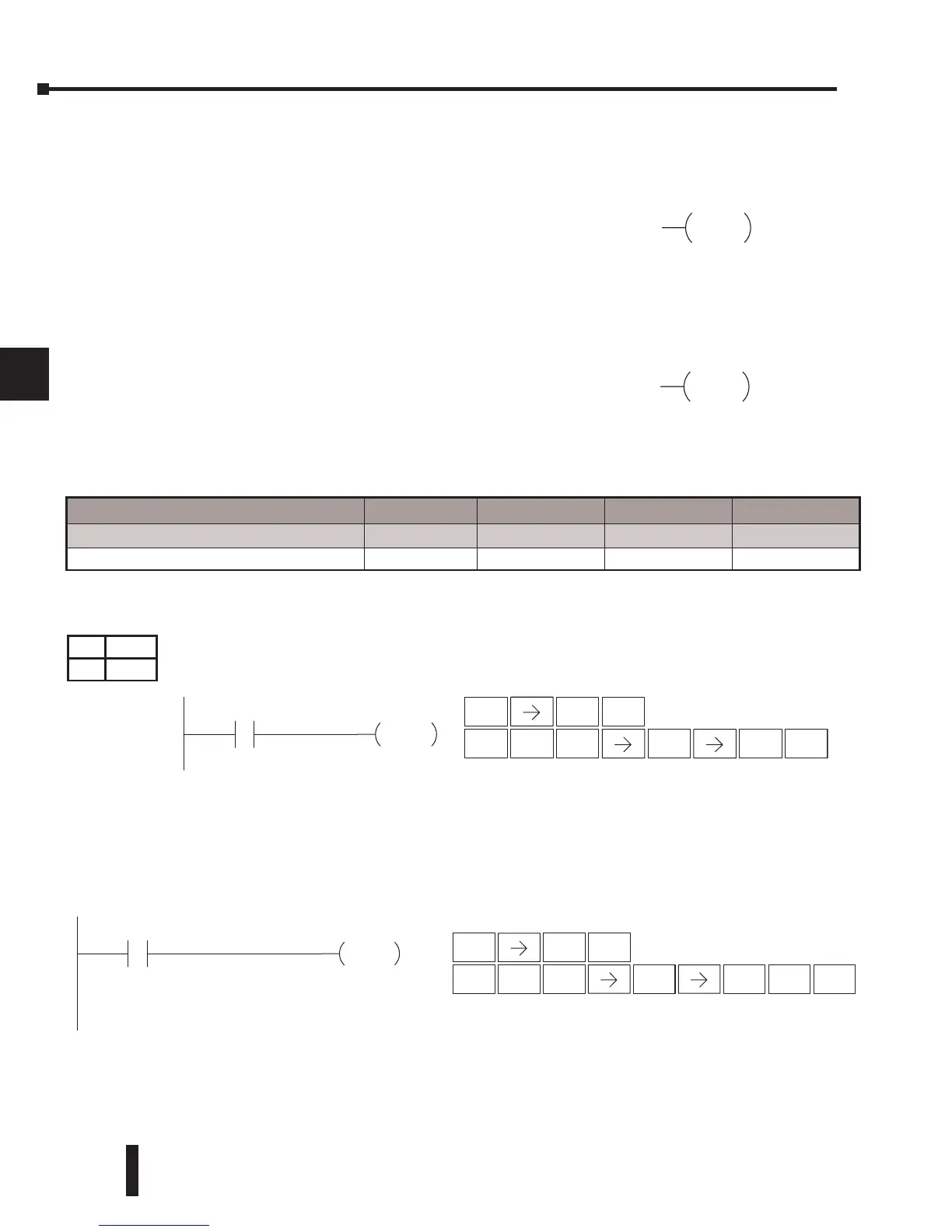

Set Immediate (SETI)
The Set Immediate instruction immediately sets or
turns on an output or a range of outputs in the image
register and the corresponding output point(s) at the
time the instruction is executed. Once the outputs are
set, it is not necessary for the input to remain on. The
Reset Immediate instruction can be used to reset the
outputs.
Reset Immediate (RSTI)
The Reset Immediate instruction immediately resets
or turns off an output or a range of outputs in the
image register and the output point(s) at the time the
instruction is executed. Once the outputs are reset, it is
not necessary for the input to remain on.
In the following example, when X1 is on, Y2 through Y5 will be set on in the image register
and on the corresponding output points.
In the following example, when X1 is on, Y5 through Y22 will be reset (off) in the image
register and on the corresponding output module(s).
aaaY aaa
SETI
aaaY aaa
RSTI




230
240
250-1
260




230
240
250-1
260
1
B
ENT
X1 Y2
SETI
Y5
DirectSOFT
Handheld Programmer Keystrokes
STR
$
SET
X
SHFT
8
I
ENT
2
C
5
F
1
B
ENT
X1 Y5
RSTI
Y22
DirectSOFT
Handheld Programmer Keystrokes
STR
$
SHFT
8
I
5
F
2
C
2
C
ENT
RST
S
DS Used
HPP Used
Operand Data Type DL230 Range DL240 Range DL250-1 Range DL260 Range
aaa aaa aaa aaa
Outputs Y 0–177 0–477 0–777 0–1777
