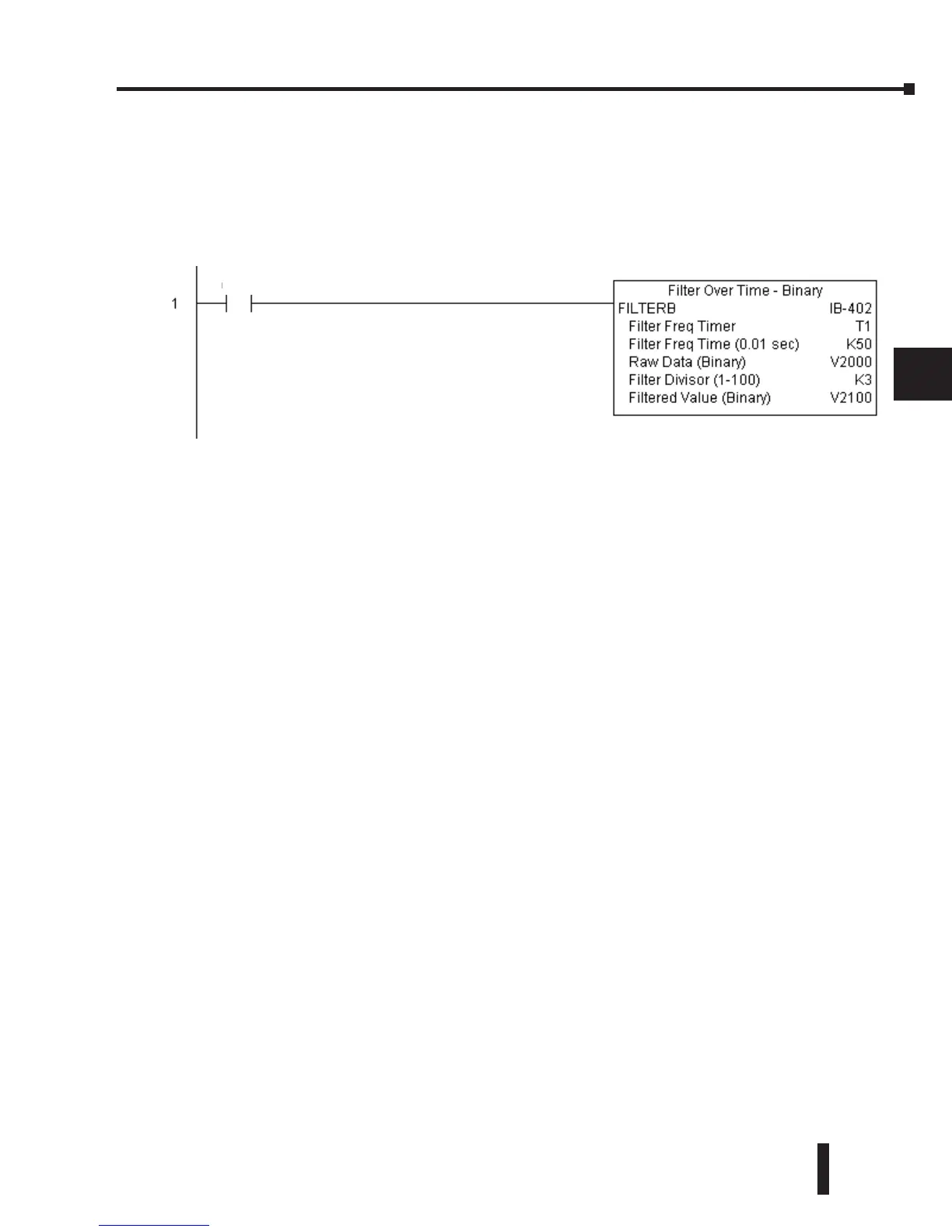

FILTERB Example
In the following example, the FILTERB instruction is used to filter a binary value that is in
V2000. Timer(T1) is set to 0.5 sec, the rate at which the filter calculation will be performed.
The filter constant is set to 3. A larger value will increase the smoothing effect of the filter. A
value of 1 results with no filtering. The filtered value will be placed in V2100
SP1
