Bailey Unicorn - Side Dinette Bunk Assembly

141
BEDMAKEUP

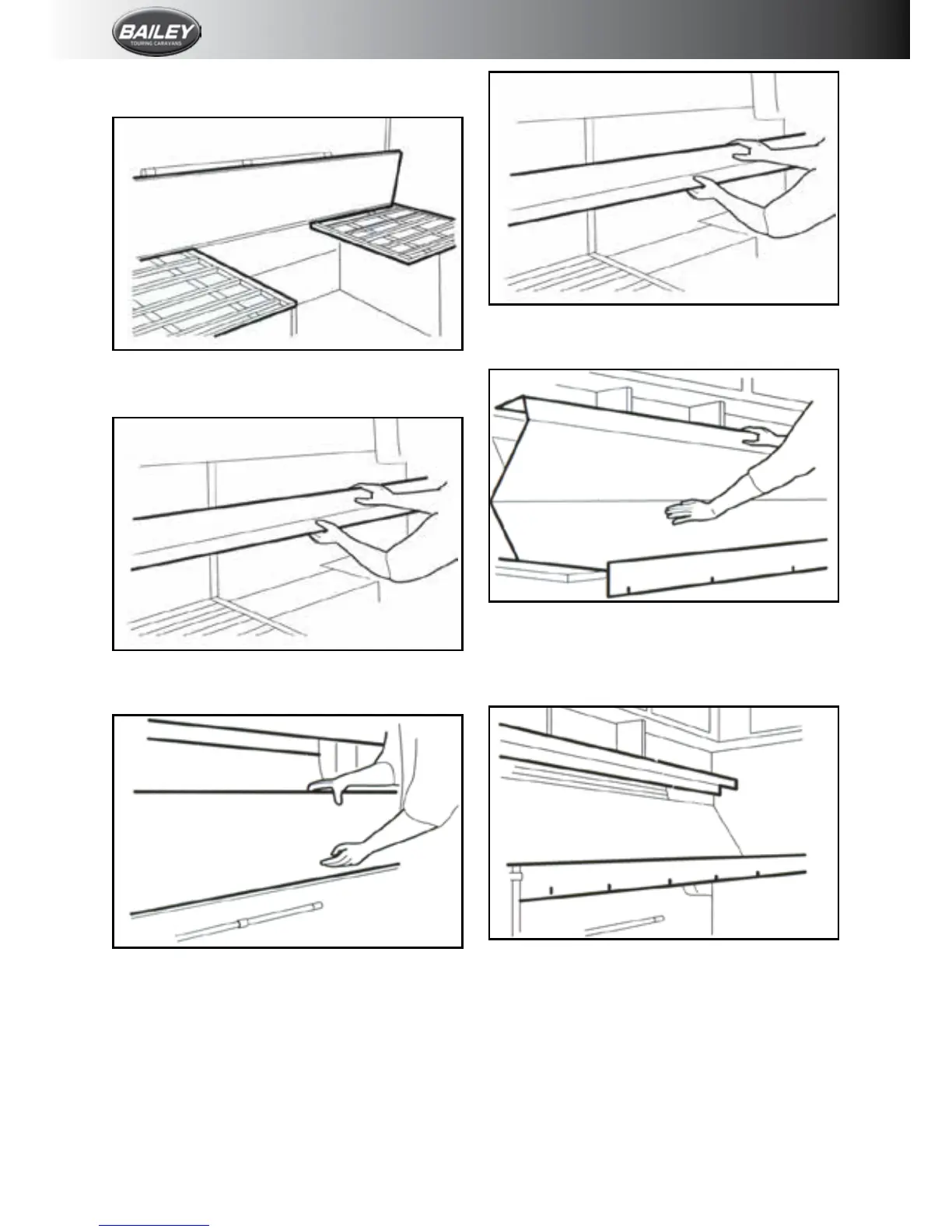

41. SIDE DINETTE TOP BUNK
ASSEMBLY
Step 1 Remove cushions and
draw the curtains and close the
blind if fitted.
Step 2 Holding the bunk in both
hands pull it inwards
Step 3 whilst lifting upwards
Step 4 The bunk mechanism will
automatically lock in the up
position.
Step 5 Release retaining strap on
the underside of the bunk base.
The second half of the bunk base
can now be unfolded towards the
caravan wall.
Step 6 Turn the turnbuckle
catches located on the metal bunk
legs to ensure that the bunk
cannot be folded by pushing up
from below.
Step 7 The safety rails and ladder can now be slotted into position.
Step 8 Check the security of the bunk and replace the cushions before allowing a person
to use the bunk.
Step1:Removethecushions,drawthecurtains
andclosetheblindiftted.
Step 1 Remove cushions and
draw the curtains and close the
blind if fitted.
Step 2 Holding the bunk in both
hands pull it inwards
Step 3 whilst lifting upwards
Step 4 The bunk mechanism will
automatically lock in the up
position.
Step 5 Release retaining strap on
the underside of the bunk base.
The second half of the bunk base
can now be unfolded towards the
caravan wall.
Step 6 Turn the turnbuckle
catches located on the metal bunk
legs to ensure that the bunk
cannot be folded by pushing up
from below.
Step 7 The safety rails and ladder can now be slotted into position.
Step 8 Check the security of the bunk and replace the cushions before allowing a person
to use the bunk.
Step 2: Holding thebunk inbothhands pull
itinwards.
Step 1 Remove cushions and
draw the curtains and close the
blind if fitted.
Step 2 Holding the bunk in both
hands pull it inwards
Step 3 whilst lifting upwards
Step 4 The bunk mechanism will
automatically lock in the up
position.
Step 5 Release retaining strap on
the underside of the bunk base.
The second half of the bunk base
can now be unfolded towards the
caravan wall.
Step 6 Turn the turnbuckle
catches located on the metal bunk
legs to ensure that the bunk
cannot be folded by pushing up
from below.
Step 7 The safety rails and ladder can now be slotted into position.
Step 8 Check the security of the bunk and replace the cushions before allowing a person
to use the bunk.
Step 3: While lifting upwards.
Step 1 Remove cushions and
draw the curtains and close the
blind if fitted.
Step 2 Holding the bunk in both
hands pull it inwards
Step 3 whilst lifting upwards
Step 4 The bunk mechanism will
automatically lock in the up
position.
Step 5 Release retaining strap on
the underside of the bunk base.
The second half of the bunk base
can now be unfolded towards the
caravan wall.
Step 6 Turn the turnbuckle
catches located on the metal bunk
legs to ensure that the bunk
cannot be folded by pushing up
from below.
Step 7 The safety rails and ladder can now be slotted into position.
Step 8 Check the security of the bunk and replace the cushions before allowing a person
to use the bunk.
Step4:Thebunkmechanismwillautomatically
lockintheupposition.
Step 1 Remove cushions and
draw the curtains and close the
blind if fitted.
Step 2 Holding the bunk in both
hands pull it inwards
Step 3 whilst lifting upwards
Step 4 The bunk mechanism will
automatically lock in the up
position.
Step 5 Release retaining strap on
the underside of the bunk base.
The second half of the bunk base
can now be unfolded towards the
caravan wall.
Step 6 Turn the turnbuckle
catches located on the metal bunk
legs to ensure that the bunk
cannot be folded by pushing up
from below.
Step 7 The safety rails and ladder can now be slotted into position.
Step 8 Check the security of the bunk and replace the cushions before allowing a person
to use the bunk.
Step 5: Release retaining strap on the
undersideofthebunkbase.Thesecondhalf
ofthebunkbasecannowbeunfoldedtowards
thecaravanwall.
Step 1 Remove cushions and
draw the curtains and close the
blind if fitted.
Step 2 Holding the bunk in both
hands pull it inwards
Step 3 whilst lifting upwards
Step 4 The bunk mechanism will
automatically lock in the up
position.
Step 5 Release retaining strap on
the underside of the bunk base.
The second half of the bunk base
can now be unfolded towards the
caravan wall.
Step 6 Turn the turnbuckle
catches located on the metal bunk
legs to ensure that the bunk
cannot be folded by pushing up
from below.
Step 7 The safety rails and ladder can now be slotted into position.
Step 8 Check the security of the bunk and replace the cushions before allowing a person
to use the bunk.
Step 6: Turn theturn-bucklecatcheslocated
onthemetalbunklegstoensurethatthebunk
cannotbefoldedbypushingupfrombelow.
Step7:Thesafetyrailsandladdercannowbe
slottedintoposition.
Step 8: Check the security of the bunk and
replacethecushionsbeforeallowingaperson
tousethebunk.
