18. UNICORN III CONTROL PANELS

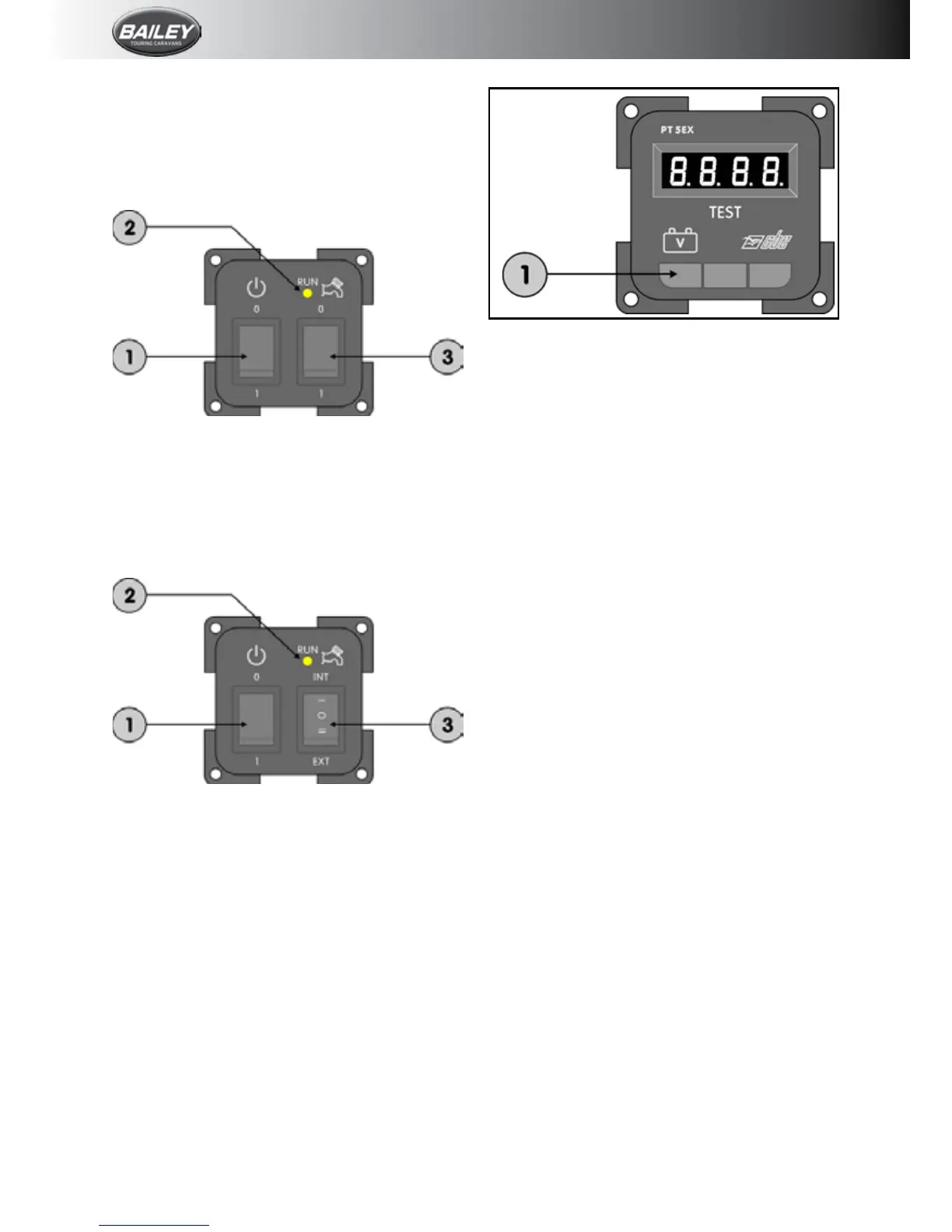

The control panels in the Unicorn III models
consistoftwoseparateswitchingblocks.
12v and Pump Controls (Single Axles)
1. 12vmainswitch:0=OFF,1=ON.
2.LED “pump run”: this LED is lit (yellow)
whenthepumpisactuallyrunning.
3.12Vwaterpumpswitch:0=OFF,1=ON.
12vandPumpControls(TwinAxles)
1. 12vmainswitch:0=OFF,1=ON
2.LED “pump run”: this LED is lit (yellow)
whenthepumpisactuallyrunning.
3.12v water pump switch: 0 = OFF, INT=
internalwaterpumpON;EXT=externalwater
pumpON.
Battery Voltage.
1.Buttontocheckthevoltage(involts)ofthe
connected12vbattery.
