PRODUCT SYMBOLS
These symbols may or may not be on your configuration of the Progressa+ Bed.
For more information about a feature, go to the page number shown for the feature in the tables below.

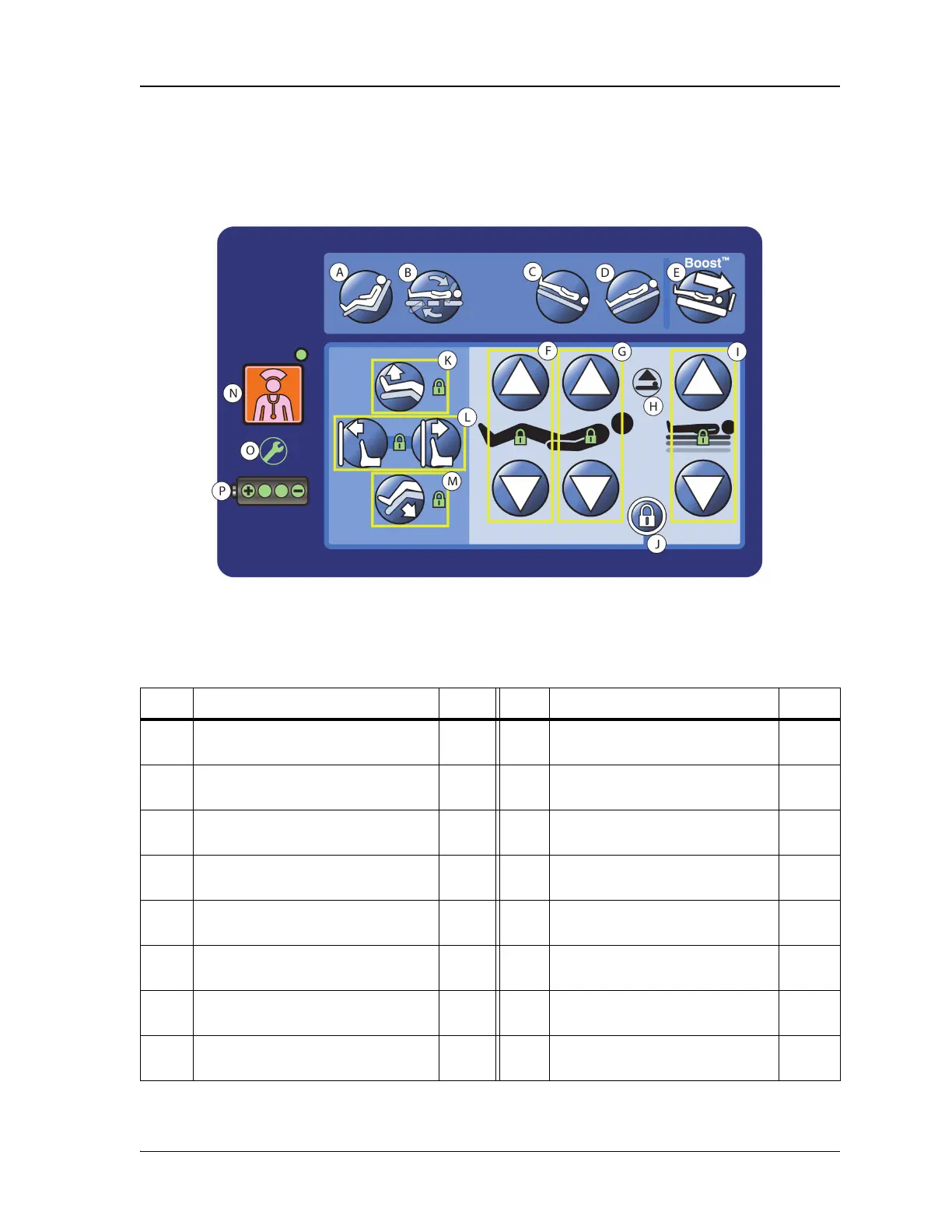

Caregiver Control Panel
Note: The yellow boxes show a set of control(s) or indicator(s).
Item Description Page Item Description Page
A Chair position control 23 I Bed up and down controls with
lockout indicator
18
B Bed flat control 26 J Lockout control—locks out bed
articulation controls
17
C Trendelenburg control 21 K Foot up control with lockout
indicator
20
D Reverse Trendelenburg control 21 L FlexAFoot Extend/Retract
control with lockout indicator
21
E Boost Position control 22 M Foot down control with lockout
indicator
20
F Knee up and down controls with
lockout indicator
19 N Nurse call control with LED
indicators
26
G Head up and down controls with
lockout indicator
19 O Maintenance required 14
H Bed not in lowest position
indicator
15 P Battery charging indicator 14
