2.2 System Composition

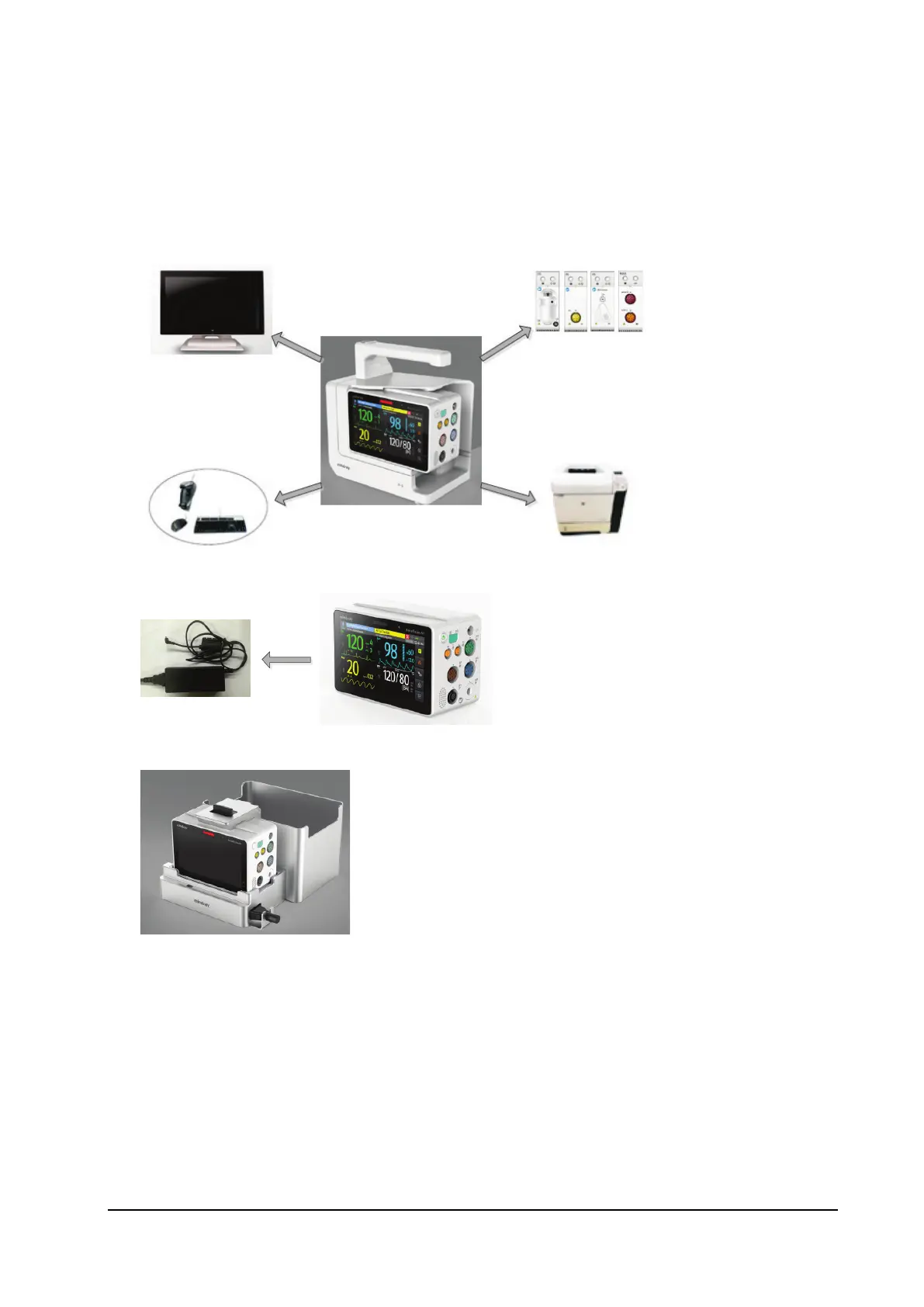

The N1 monitor system consists of the N1 main unit, Dock, Modular Rack, single-slot module, external display, AC
adapter, Transport Dock and the peripherals such as keyboard, mouse, scanner, and printer, as shown in the figure
below:
In the figure:
N1 main unit: incorporates multiple functions such as display, control, parameter measurement, printing, and
communication. It is the core of the whole system and
supports the following functions:
Integrate the basic parameter measurement module for measuring the ECG, RESP, SPO
2
, TEMP, NIBP, IBP,
CO
2
and other parameters.
Connect to the Modular Rack, and to the parameter measurement modules such as the PiCCO module
and the three kinds of CO
2
modules through the Modular Rack, so as to display and store module
measurement results and report alarms.
Be directly inserted into the host monitor as a submodule.
