5-9
7. Set the patient simulator to separately output 120/80 mmHg ART signals and 120/0 mmHg LV signals to the IBP
channel and check that the IBP wave is displayed correctly.
8. Repeat the preceding steps to test all IBP channels.
5.4.6.2 Pressure Calibration
Method 1:
Tools required:
Patient simulator Medsim300B, MPS450, or equivalent equipment
IBP adapter cable for test (use P/N 009-002199-00 for Medsim300B; use P/N 009-002198-00 for MPS450)
1. Connect the patient simulator to the IBP connector on the monitor.
2. Set the patient simulator to 0 pressure for the target IBP channel.
3. Select Zero IBP in the IBP setup menu. Then select
Zero.
4. Set static pressure to 200 mmHg on the patient simulator.
5. Select
Main Menu→Maintenance >>→User Maintenance >>→Cal. IBP Press. >>. Set the calibration value
to 200 mmHg.
6. Select the Calibrate button next to the target IBP channel to start calibration.
If the calibration succeeds, the message "Calibration Completed!" is displayed. If the calibration fails, a corresponding
message is displayed.
Method 2:
Tools required:
Standard manometer
Balloon pump
Air tubing
T-shape connector

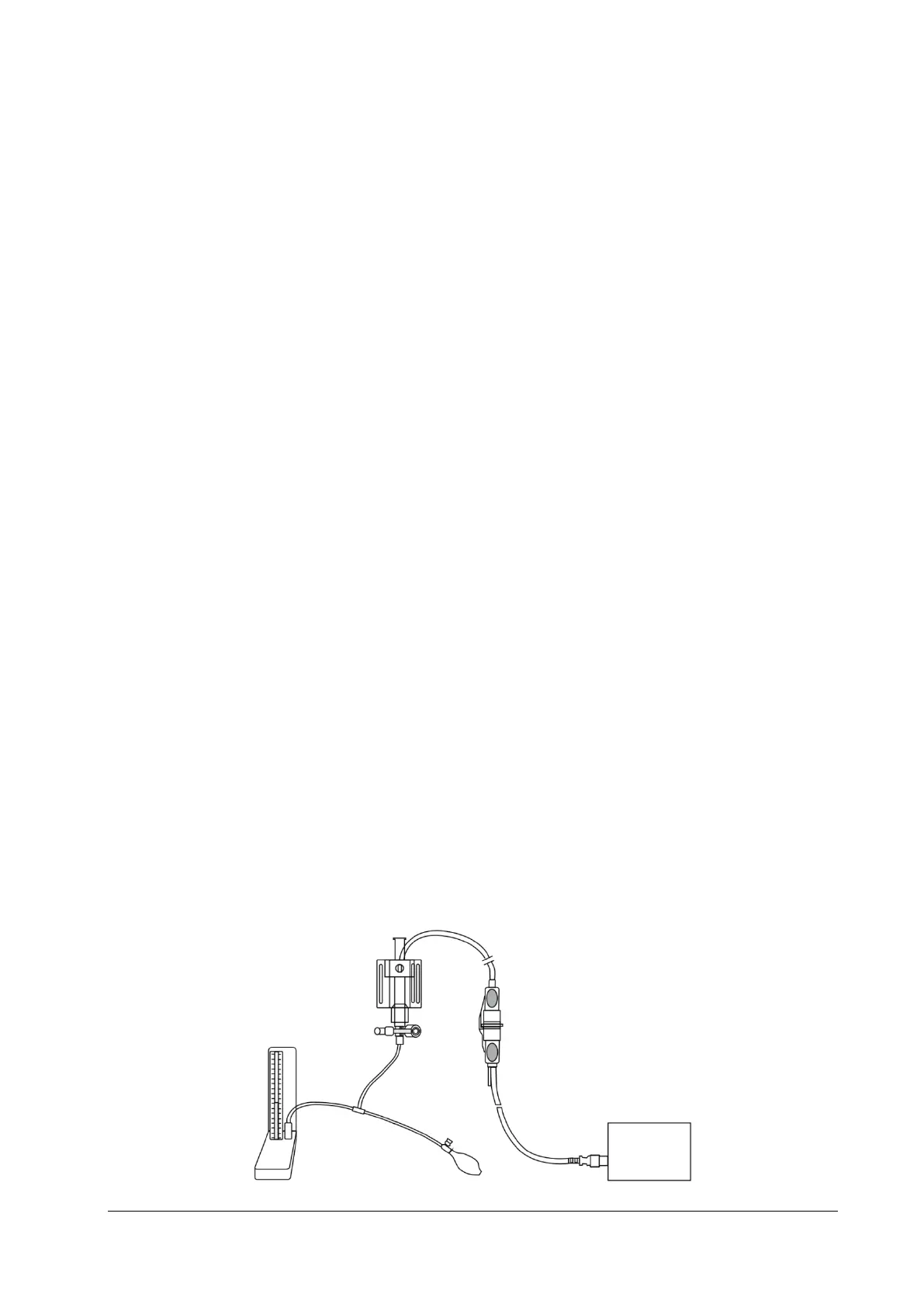

1. Connect the 3-way stopcock, the sphygmomanometer and the balloon pump using the T-shape connector, as
shown below.
2. Turn on the 3-way stopcock to the air to zero the transducer. Then open the stopcock to the sphygmomanometer.
Sphygmomanometer
connector
3-way stopcock
