8.4 Disassembling the N1 Main Unit with Two Batteries
8.4.1 Removing the Battery Door and Battery

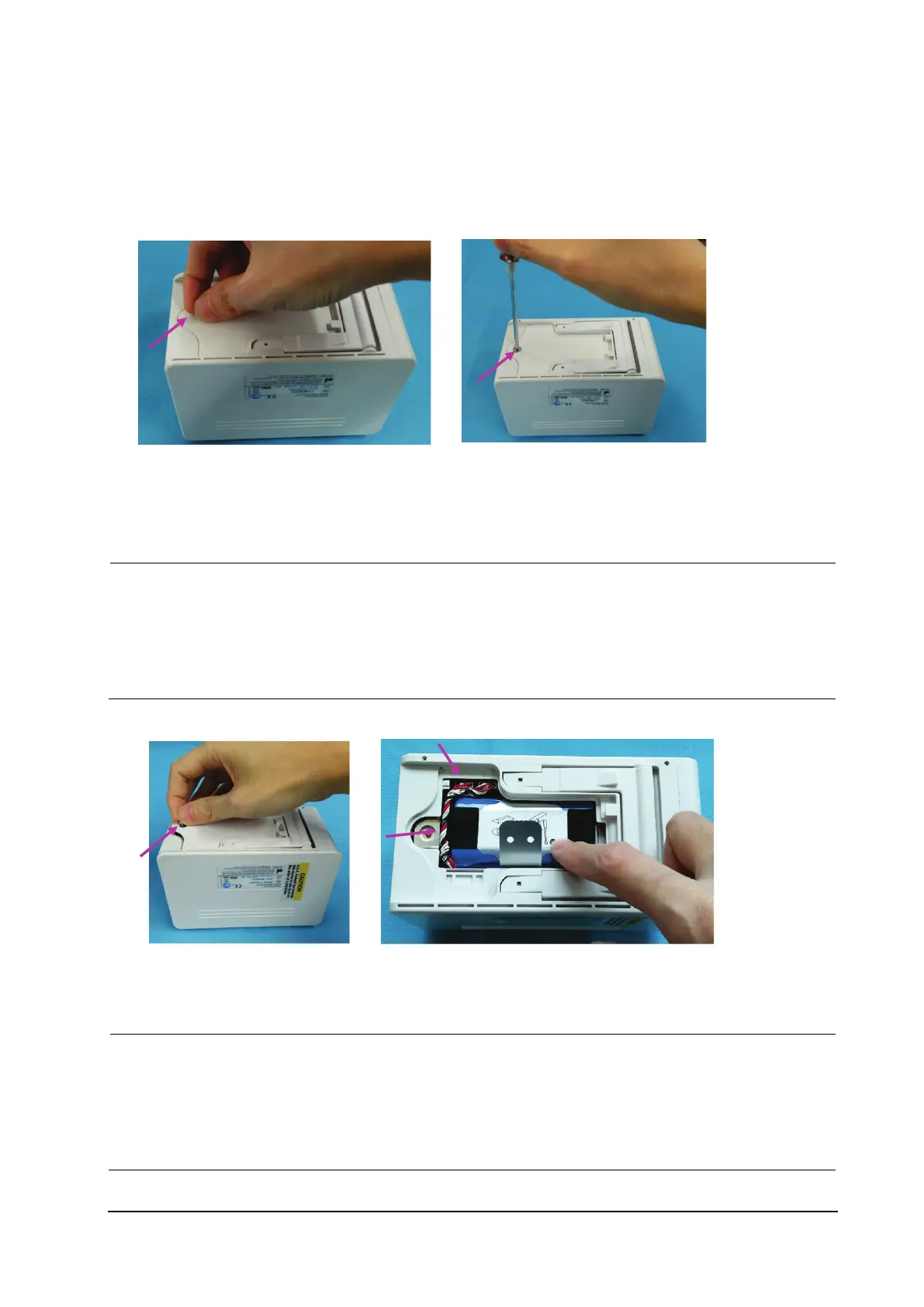

1. Remove the screw cover and loosen the screw.
2. Remove the screw, and then remove the battery door.
3. Remove the battery from the primary battery housing, and remove the battery connection cable.
When disassembling the main unit, be sure to pull out the battery connection cable herein and remove
the battery to avoid electricity in subsequent disassembly steps.
When reinstalling the battery, install the battery connection cable of the primary battery housing into the
left B1 socket. Route the battery connection cable as shown below. When inserting the connection cable
into the socket, align the connector to avoid damage to connector pins.
4. Remove the battery from the secondary battery housing. Remove the battery connection cable.
When disassembling the main unit, be sure to pull out the battery connection cable herein and remove
the battery to avoid electricity in subsequent disassembly steps.
When reinstalling the battery, install the battery connection cable of the secondary battery housing into
the right B2 socket. Route the battery connection cable as shown below. When inserting the connection
cable into the socket, align the connector to avoid damage to connector pins.
