8-4

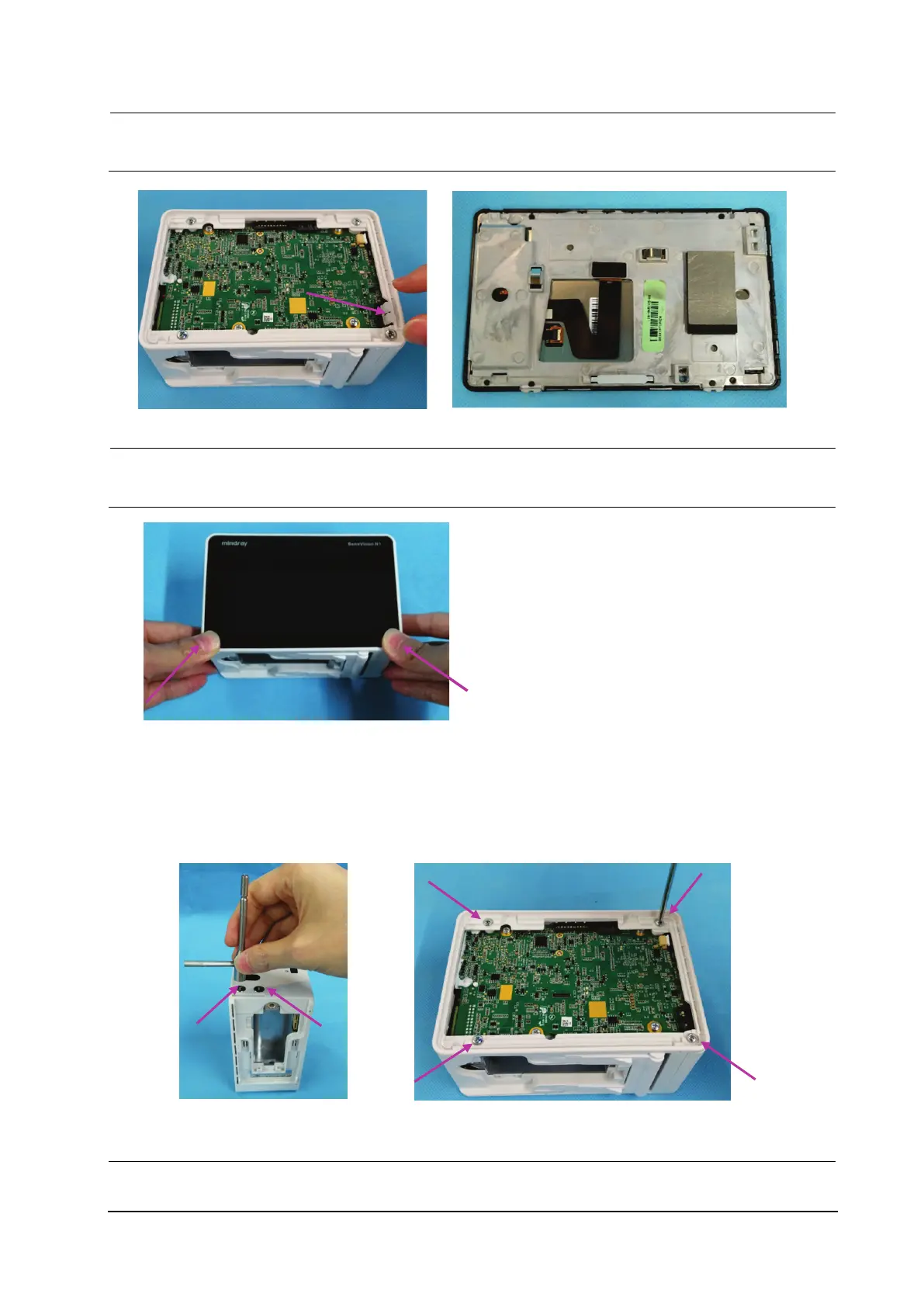

If the light pipe of theindicator is released after the display assembly is removed, install the light pipe at
the position shown in the figure below.
When assembling the display assembly, press the two corners shown in the figure below, and press the
display assembly into the rear housing.
8.3.3 Removing the Rear Housing
1. Use the terminal screw dismounting tool to remove the two terminal screws fixing the rear housing.
2. Remove the four M3×5 screws fixing the rear housing.
To Next Page
