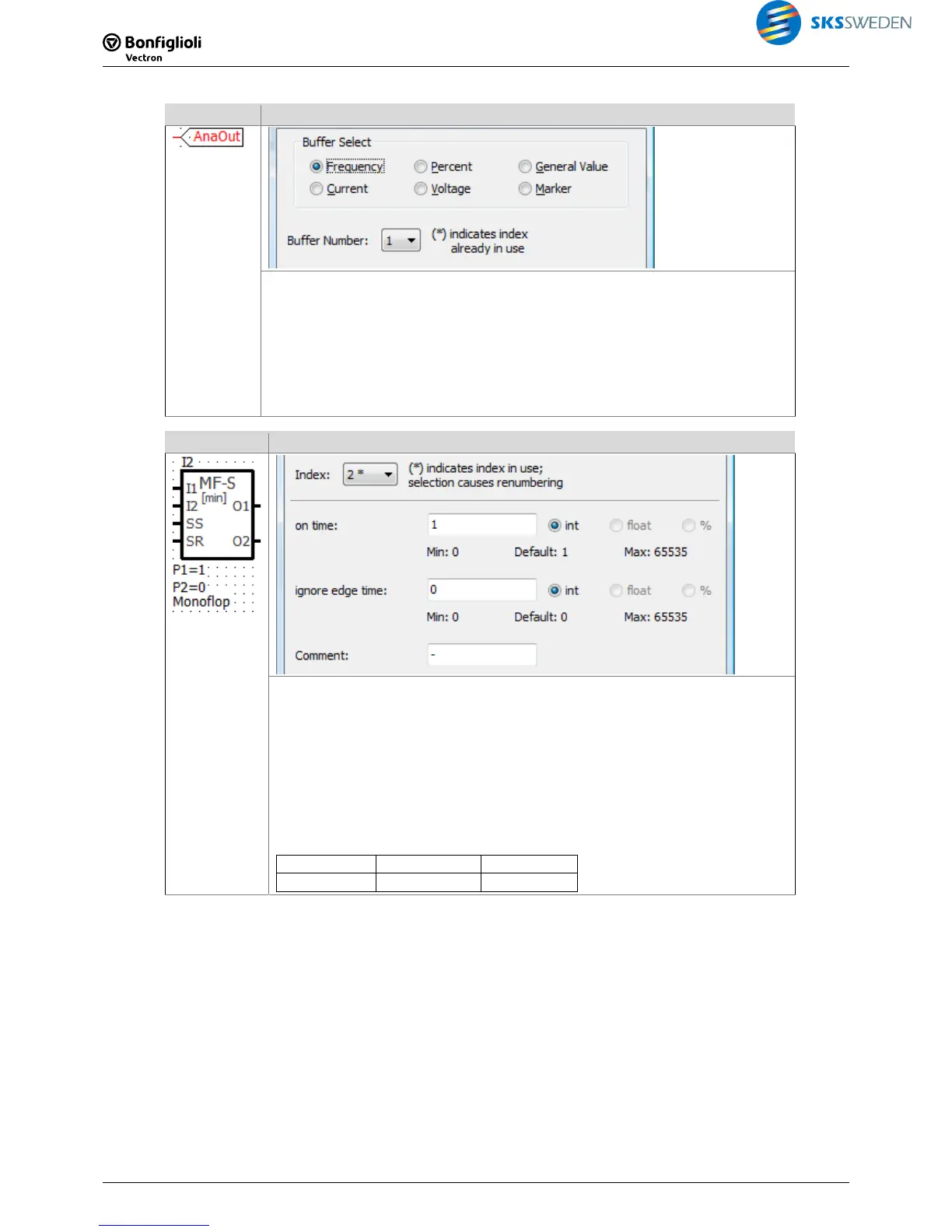

Block Dialog window
Write the output signal of an analog function block to the output buffer. Output
buffers 1 to 4 correspond to signal sources 25xx. The signal sources can be
used for analog inputs of other function blocks or combined with device func-
tions.
Percent Buffer Number 1 and 2 can be output via analog control terminals of
the frequency inverter. Select Signal Source 61 – Amount PLC output 1 (Percent
Buffer Number 1) or 62 - Amount PLC output 2 (Percent Buffer Number 2) for
the parameter of the analog output. Signal sources 161 and 162 have a sign.
Block Dialog window
The index (I) determines the order in which the instructions are processed.
Adjust the function block to the application via input fields P1 and P2. The
functions of P1 and P2 depend on the function block.
In some instructions (i.e. mathematical operations) P1 and P2 can be display
as Float, % or Int(ernal).
Changing the display does not change the value. For mathematical operations
% or Float is recommended.
For Times (i.e. Monoflop) the internal Notation Int is recommended.
Correlation:
% Float Int
123.45 % 1.2345 12345
