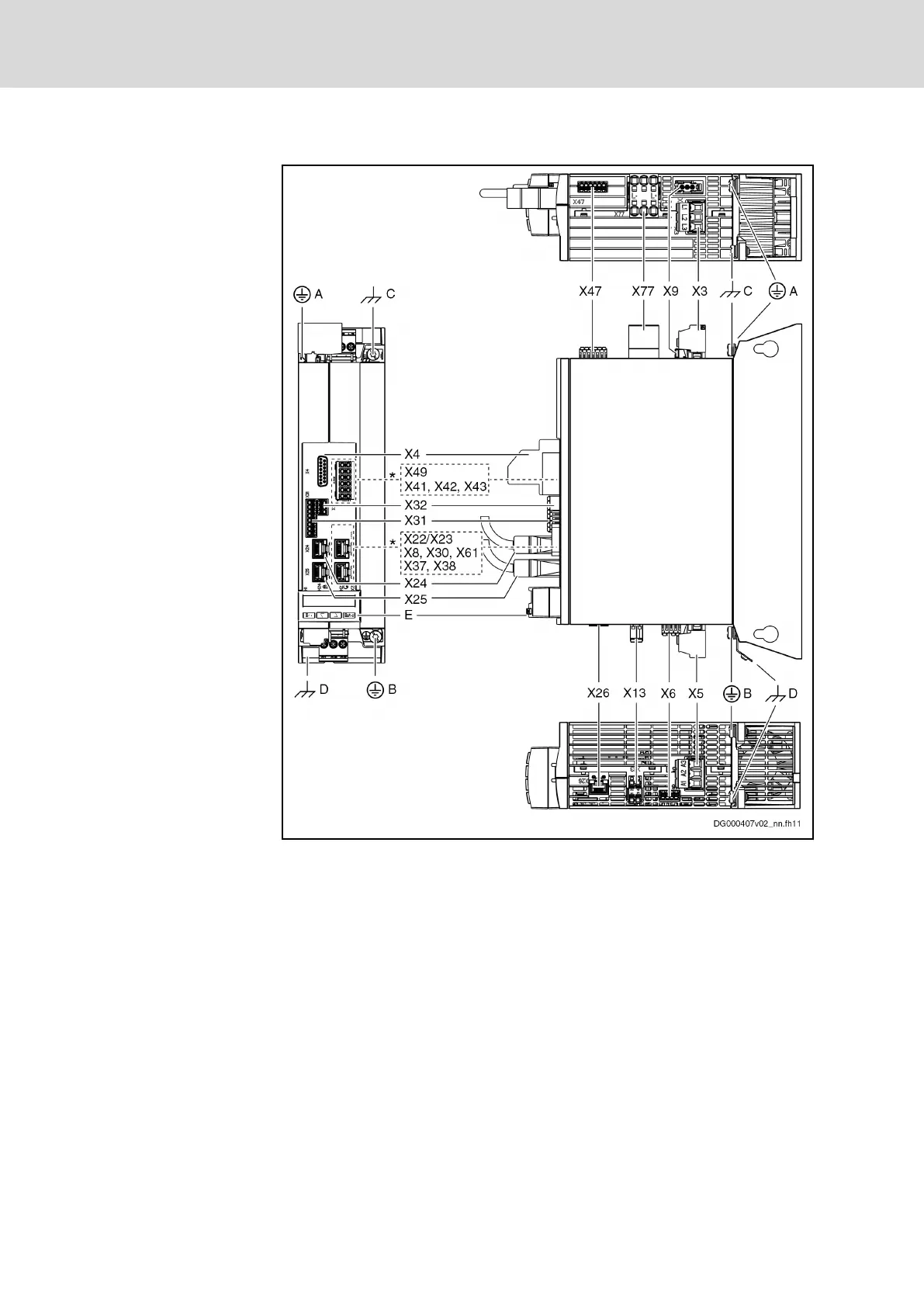

HCS01 connection points (ADVANCED)
* Optional connection point
A Connection point of equipment grounding conductor, mains
B Connection point of equipment grounding conductor, motor
C Control line shield connection
D Motor cable shield connection
E Control panel
X3 Mains connection
X4 Motor encoder
X5 Motor connection
X6 Motor temperature monitoring, motor holding brake
X8 Encoder evaluation (EC option); encoder emulation (EM op‐
tion)
X9 Integrated/external braking resistor
X13 24V supply (control voltage)
X22 / X23 Multi-Ethernet communication (ET option)
X24 / X25 sercos III master
X26 Engineering interface
X30 PROFIBUS communication (PB option)
Bosch Rexroth AG DOK-INDRV*-HCS01******-PR05-EN-P126/341
Rexroth IndraDrive CsDrive Systems with HCS01
Mounting and installation
