Cables
INK0670 Motor power cable; length: max. 75 m
RKG0049 Hall sensor adapter box (Control X4.Out) ↔ Encoder evaluation
at drive controller (X4, X8); length: max. 75 m
RKG0050 Digital Hall sensor ↔ Hall sensor adapter box (Hall X4.In2);
length: max. 30 m
RKG0051 Length measuring system ↔ Hall sensor adapter box (Encoder
X4.In1); length: max. 30 m

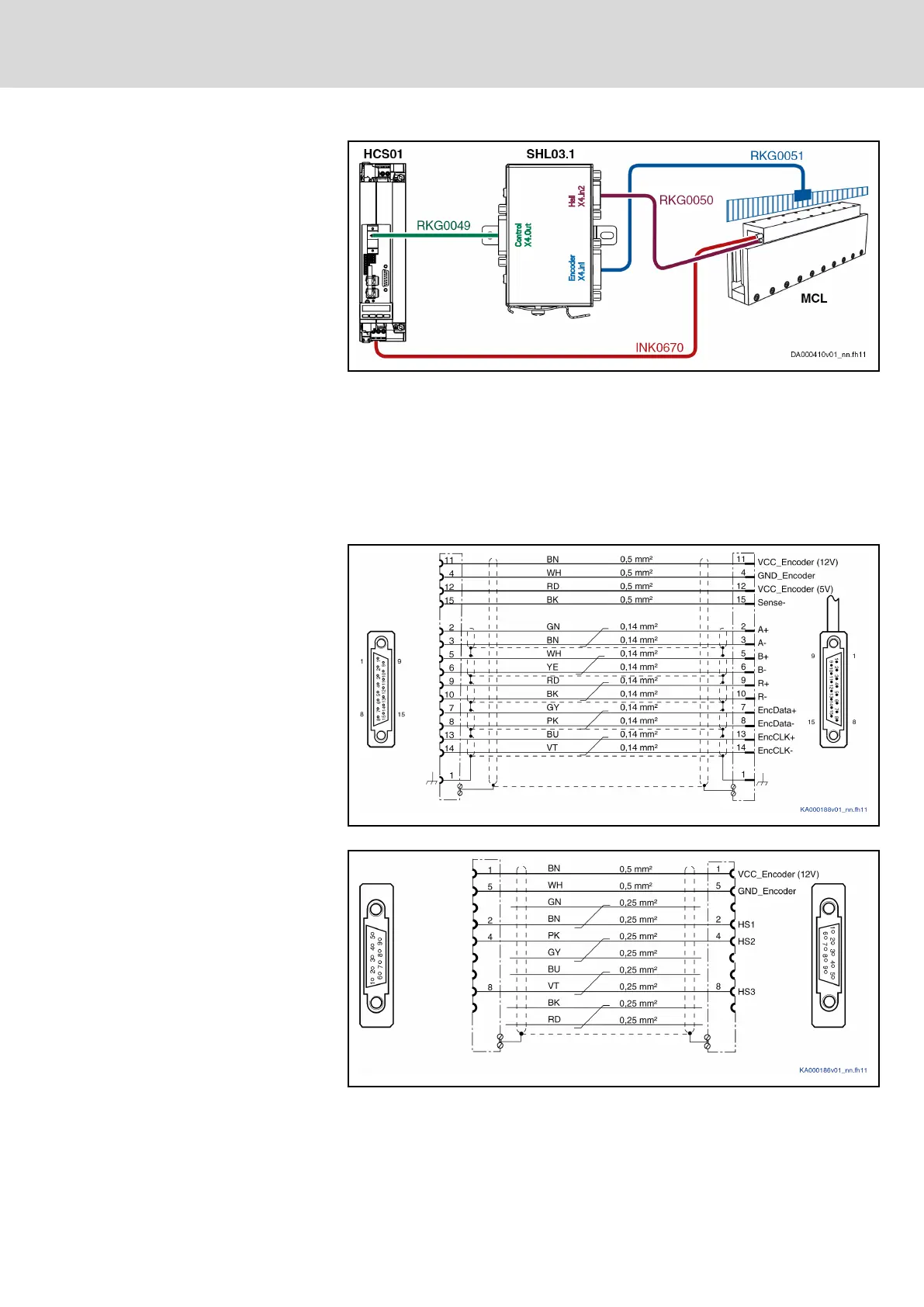

Fig. 8-35: Cables
Interconnection Diagram
RKG0049
Fig. 8-36: RKG0049
Interconnection Diagram
RKG0050
Fig. 8-37: RKG0050
DOK-INDRV*-HCS01******-PR05-EN-P Bosch Rexroth AG 285/341
Rexroth IndraDrive CsDrive Systems with HCS01
Cables, accessories, additional components
