HCS01.1E-W0003/5/6/8/9/13
Standard mounting:
A Minimum mounting clearance
B Boring dimensions
C Mounting surface

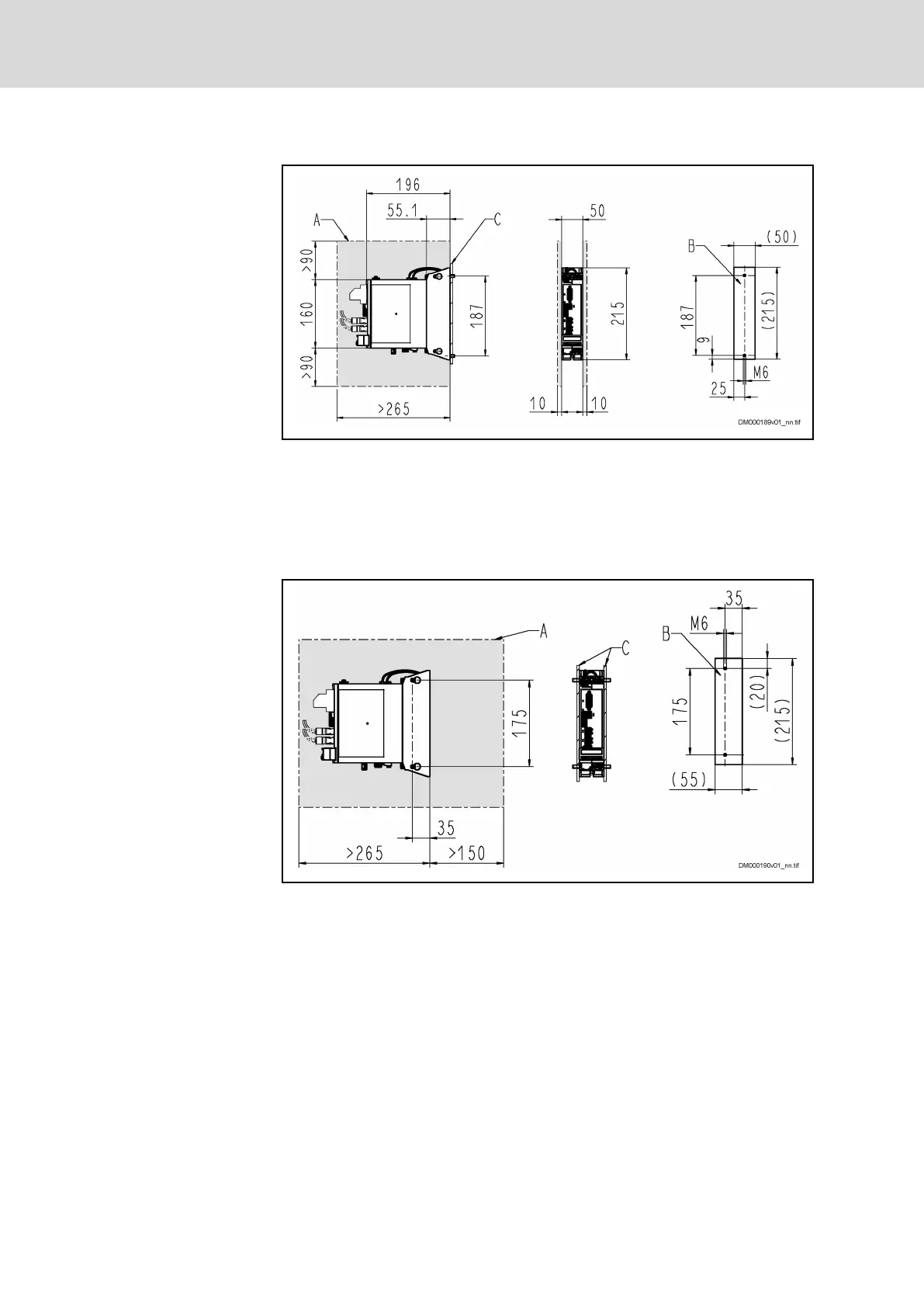

Fig. 4-4: Dimensional Drawing HCS01.1E-W0003/5/6/8/9/13 (Standard
Mounting)
Left-hand or right-hand mounting:
A Minimum mounting clearance
B Boring dimensions
C Mounting surface
Fig. 4-5: Dimensional Drawing HCS01.1E-W0003/5/6/8/9/13 (Left-Hand or
Right-Hand Mounting)
Bosch Rexroth AG DOK-INDRV*-HCS01******-PR05-EN-P60/341
Rexroth IndraDrive CsDrive Systems with HCS01
Combining the individual components
