HCS01.1E-W0018/28
Standard mounting:
A Minimum mounting clearance
B Boring dimensions
C Mounting surface

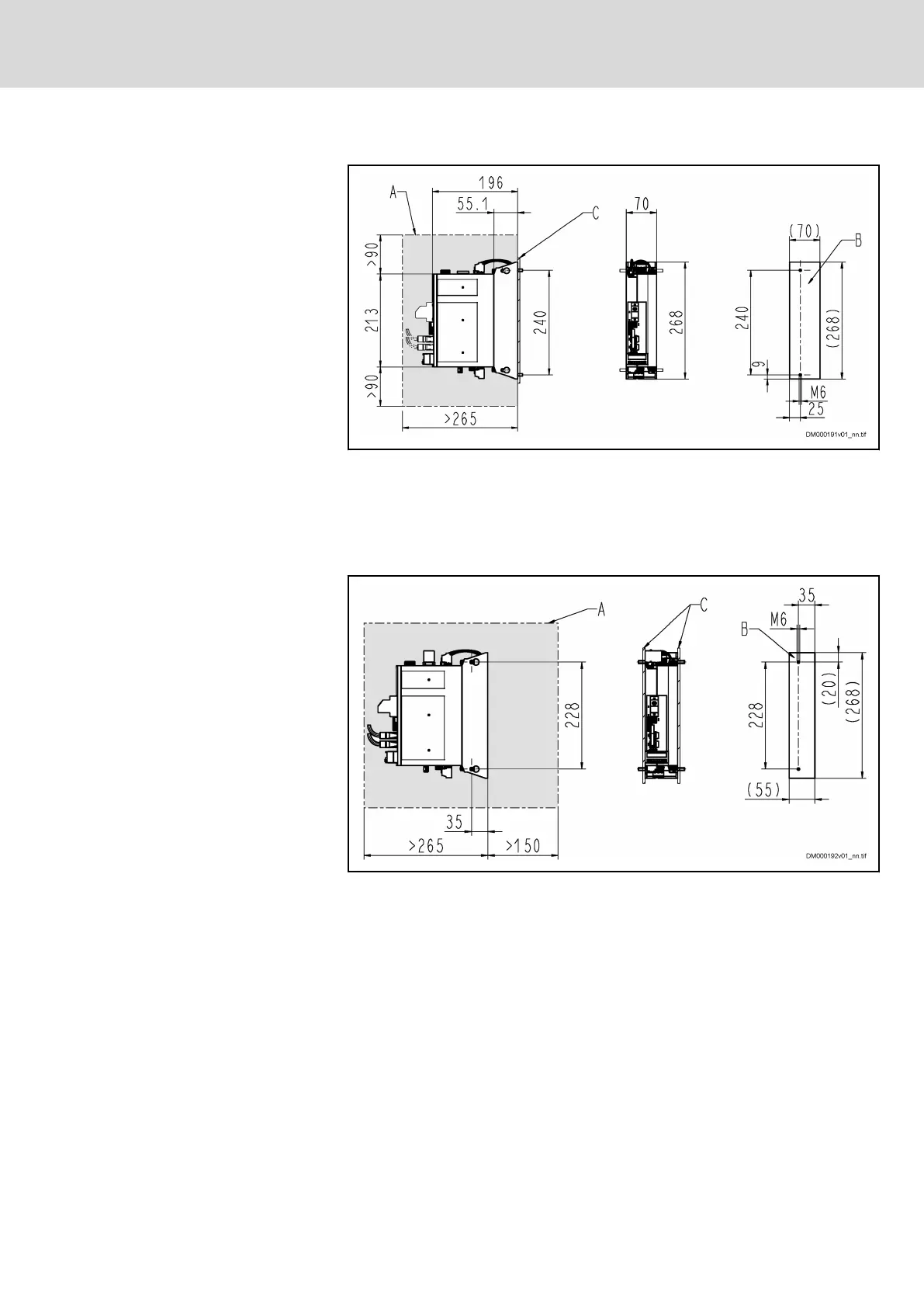

Fig. 4-6: Dimensional Drawing HCS01.1E-W0018/28 (Standard Mounting)
Left-hand or right-hand mounting:
A Minimum mounting clearance
B Boring dimensions
C Mounting surface
Fig. 4-7: Dimensional Drawing HCS01.1E-W0018/28 (Left-Hand or Right-
Hand Mounting)
