3-8
Confidential

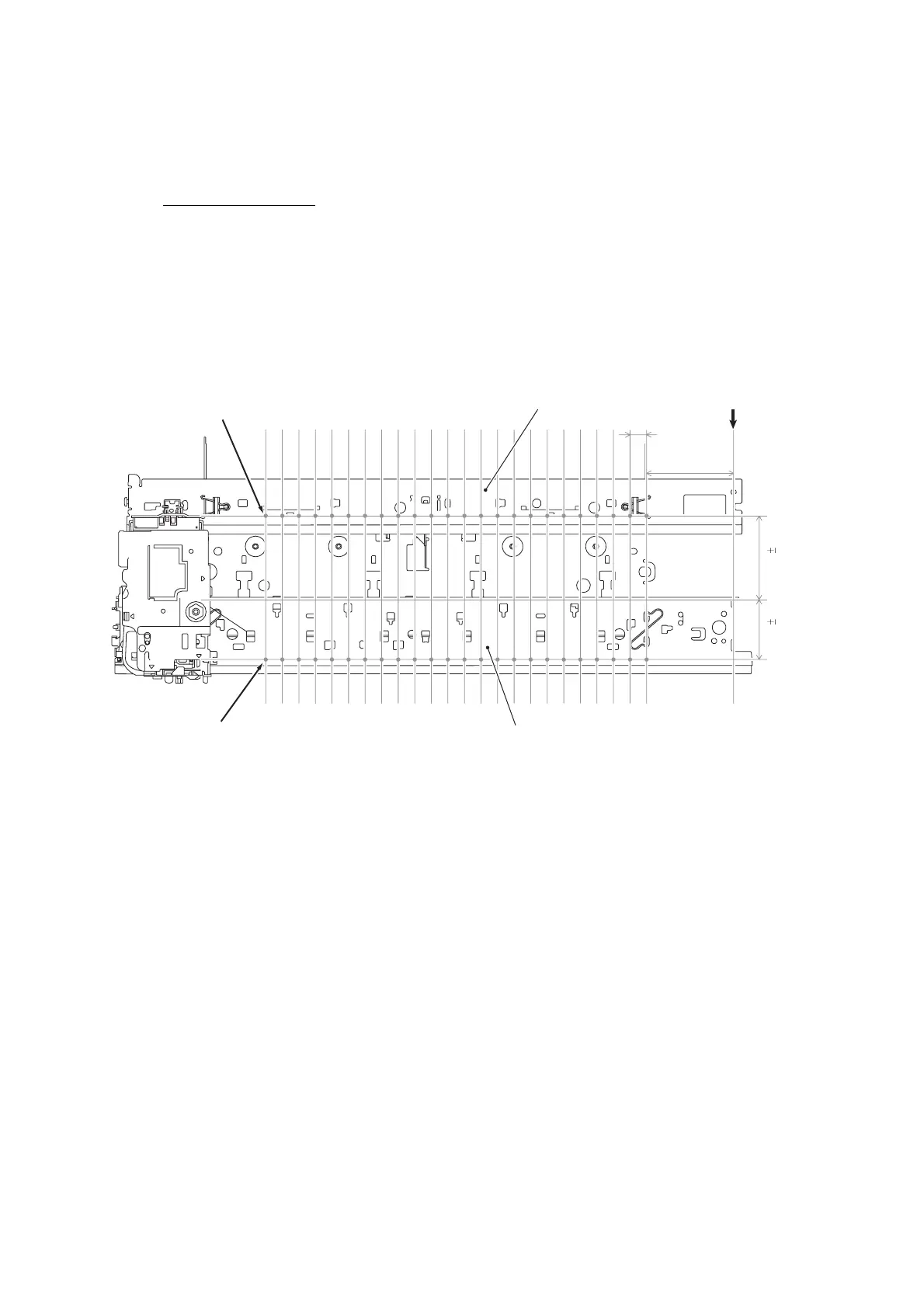

CR guide rail and CR support chassis (top face)
Apply a 2 mm diameter ball of grease (FLOIL BG1319) to each of the 48 lubrication points
below.
Lubrication procedure
(1) Move the head/carriage unit to the left end of its travel.
(2) Before applying grease, wipe dust or dirt off the lubrication area with an alcohol soaked
cloth.
(3) Move the head/carriage unit from the left to the right ends of its travel to spread the applied
grease on the CR guide rail and chassis.
(3_118)
(mm)
57.25 0.5
CR guide rail
12.7
57.1
CR support chassis
Apply grease to
these 24 points.
Apply grease to
these 24 points.
Home position of
head/carriage unit
41.05 0.5
To Next Page
