CR support chassis (inner sides of the front and rear upright edges)
Apply a 2 mm diameter ball of grease (FLOIL BG1319) to each of the 60 lubrication points
below.
Lubrication procedure
(1) Move the head/carriage unit to the left end of its travel.
(2) Before applying grease, wipe dust or dirt off the lubrication area with an alcohol soaked
cloth.
(3) Move the head/carriage unit from the left to the right ends of its travel to spread the applied
grease on the CR support chassis.
(3_119)
(mm)

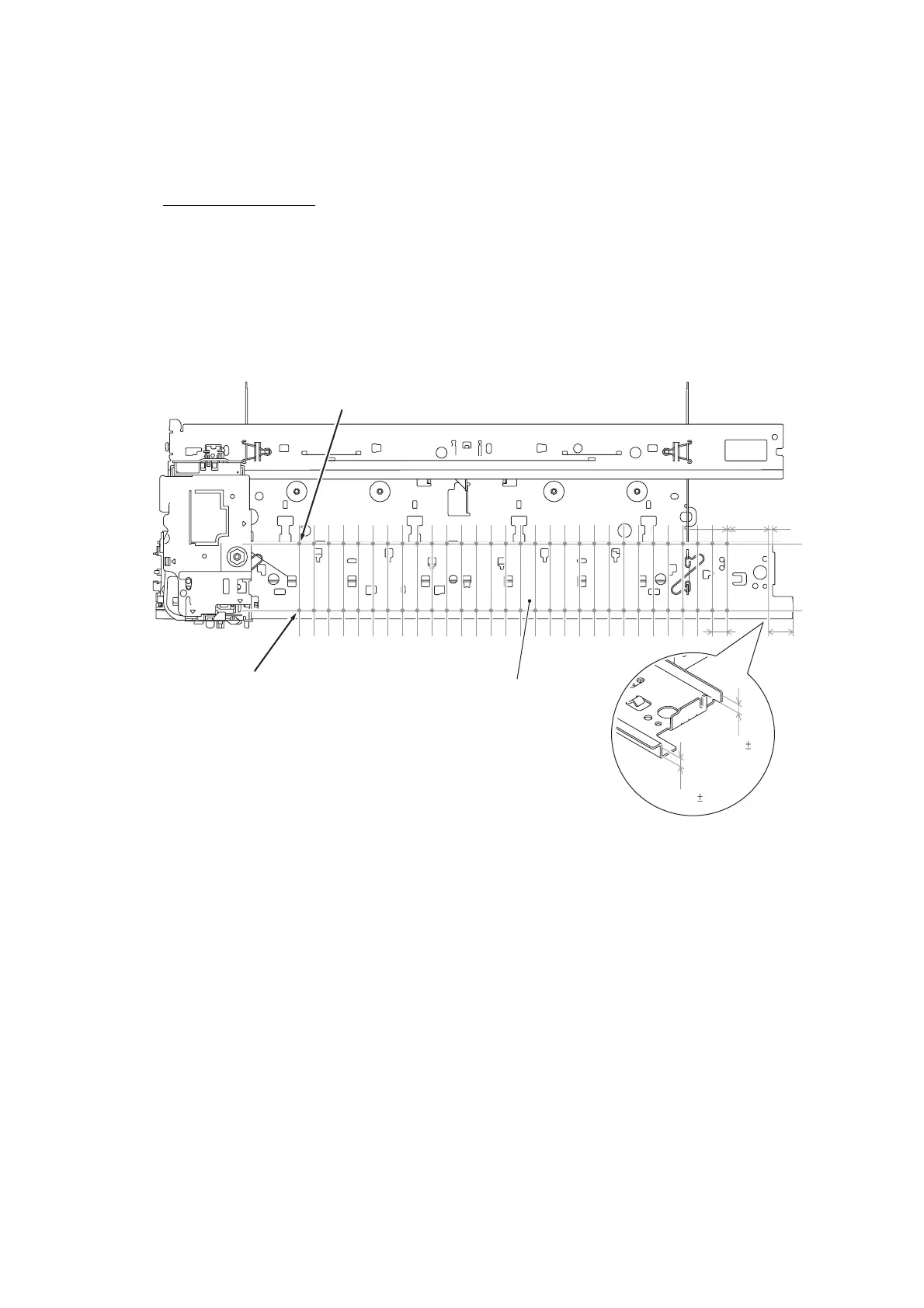

CR support
chassis
5.65 0.5
Apply grease to
these 30 points
Apply grease to
these 30 points
34.8
4.1
10.8
13.15
5.625 0.5
