Brother MFC-J6510DW

3-10
Confidential

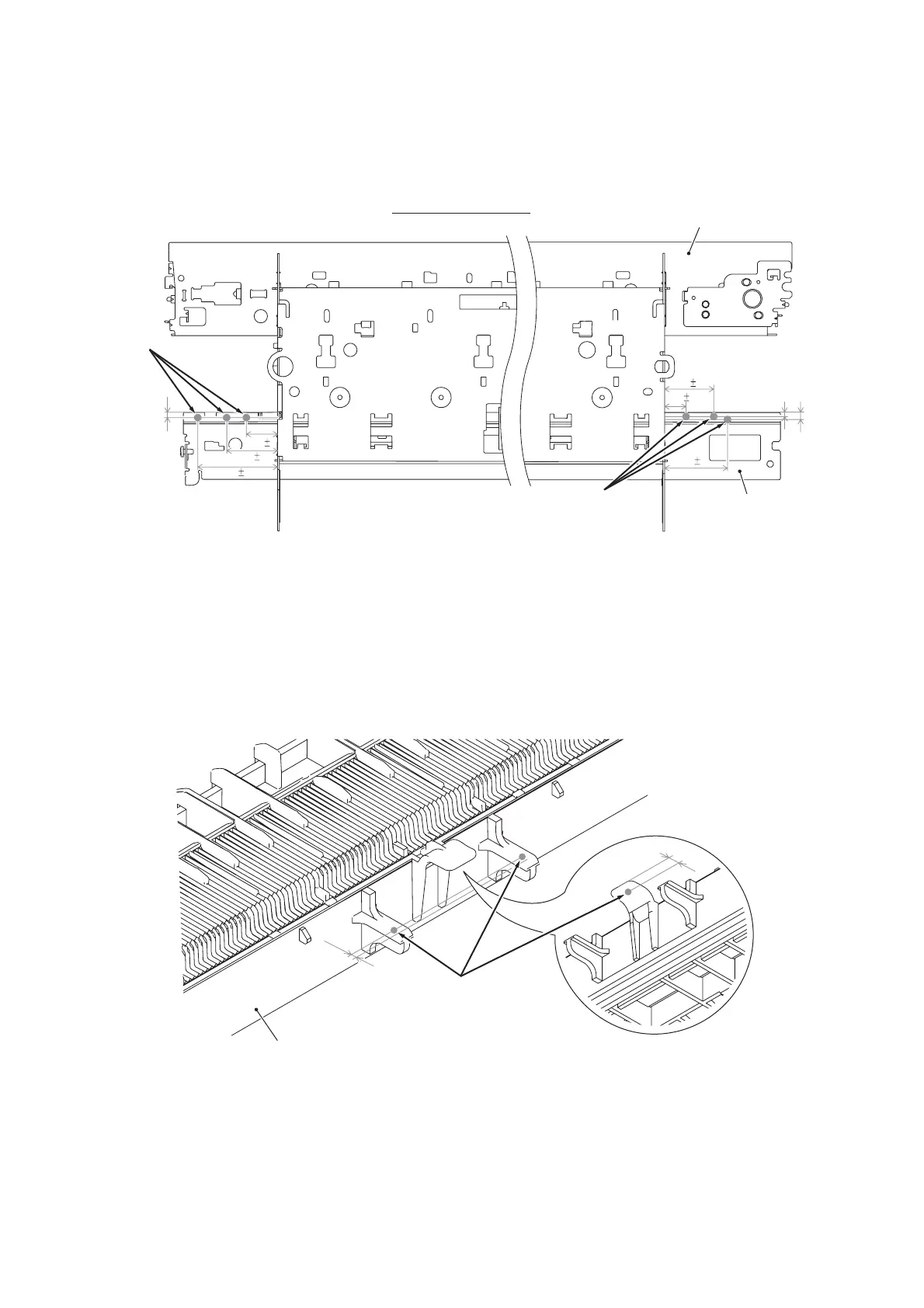

 CR guide rail (bottom face)
Apply a 1 mm diameter ball of grease (FLOIL BG1319) to each of the lubrication points below.
 Platen
Apply a 1 mm diameter ball of grease (Molykote EM-30LP) to each of the lubrication points
below.
(3_116)
(mm)
3.0-4.0
CR support chassis
Viewed from the bottom
CR guide rail
Apply
grease
to these
3 points.
Apply grease to
these 3 points.
3.0-4.0
(Right)
0.5-1.0
35 1
50 1
30 1
20 1
40 1
22 1
(3_121)
(mm)
1.0-1.5
1.0-1.5
(Front)
Platen
Apply grease to
these 3 points.
