Note: Gather the slack of the main-MJ (LINE) harness around section "X" shown above.
9

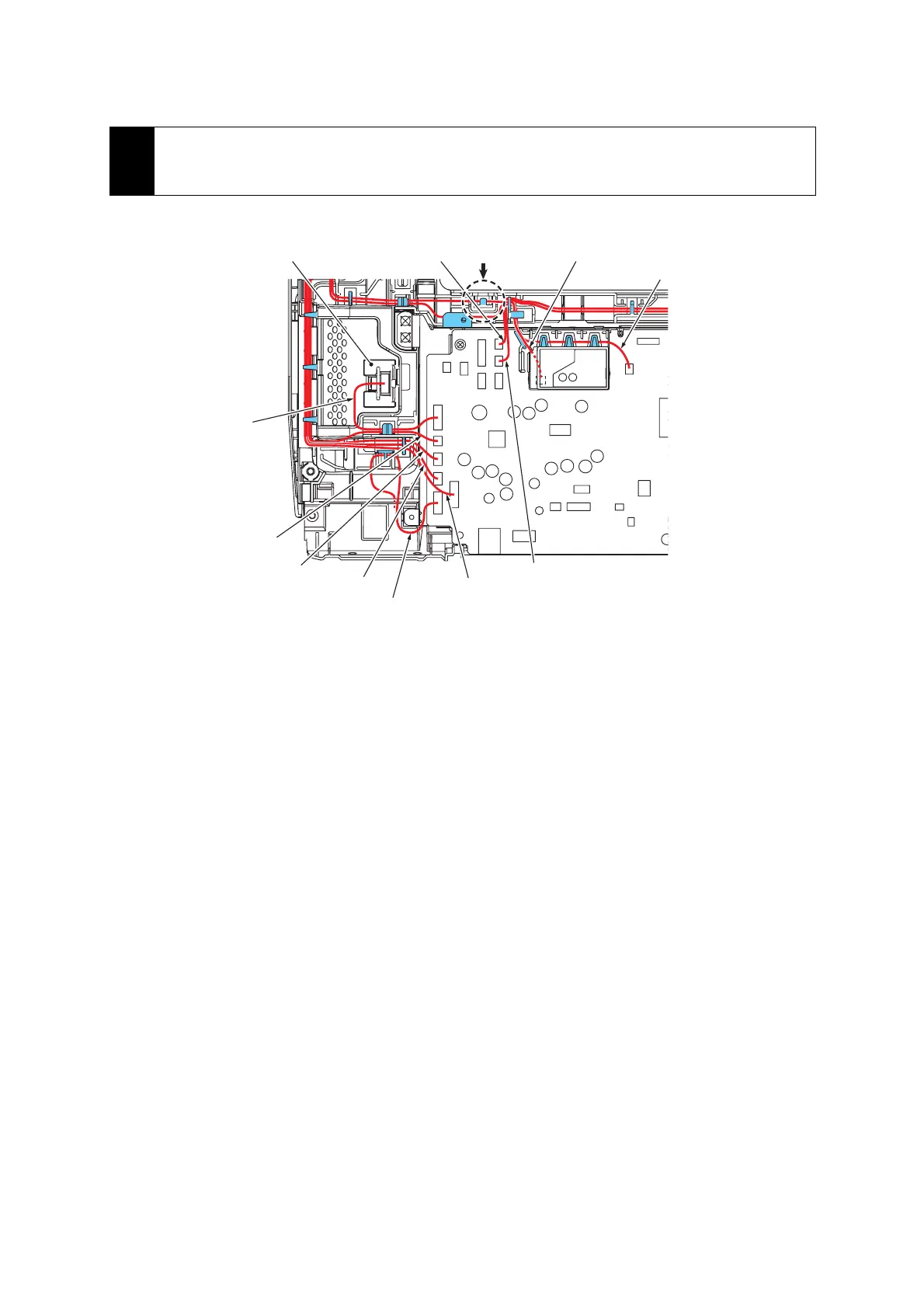

Lower cover: Main-MJ (LINE) harness, Main-MJ (EXT) harness, ASF motor harness, Power supply
harness, Paper feed motor harness, Registration sensor harness, Switchback paper sensor harness,
Wireless LAN PCB harness, PF encoder/PF sensor harness and Carriage motor harness
(3_062)
ASF motor harness
Power supply harness
Paper feed motor harness
Registration sensor harness
Switchback paper detection
sensor harness
Wireless LAN PCB harness
PF encoder/PF sensor harness
Carriage motor harness
Main PCB
Main-MJ (EXT) harness (black)
Main-MJ (LINE) harness (yellow)
Power harness holder
Section "X"
