Brother MFC-J6510DW

3-23
Confidential
10

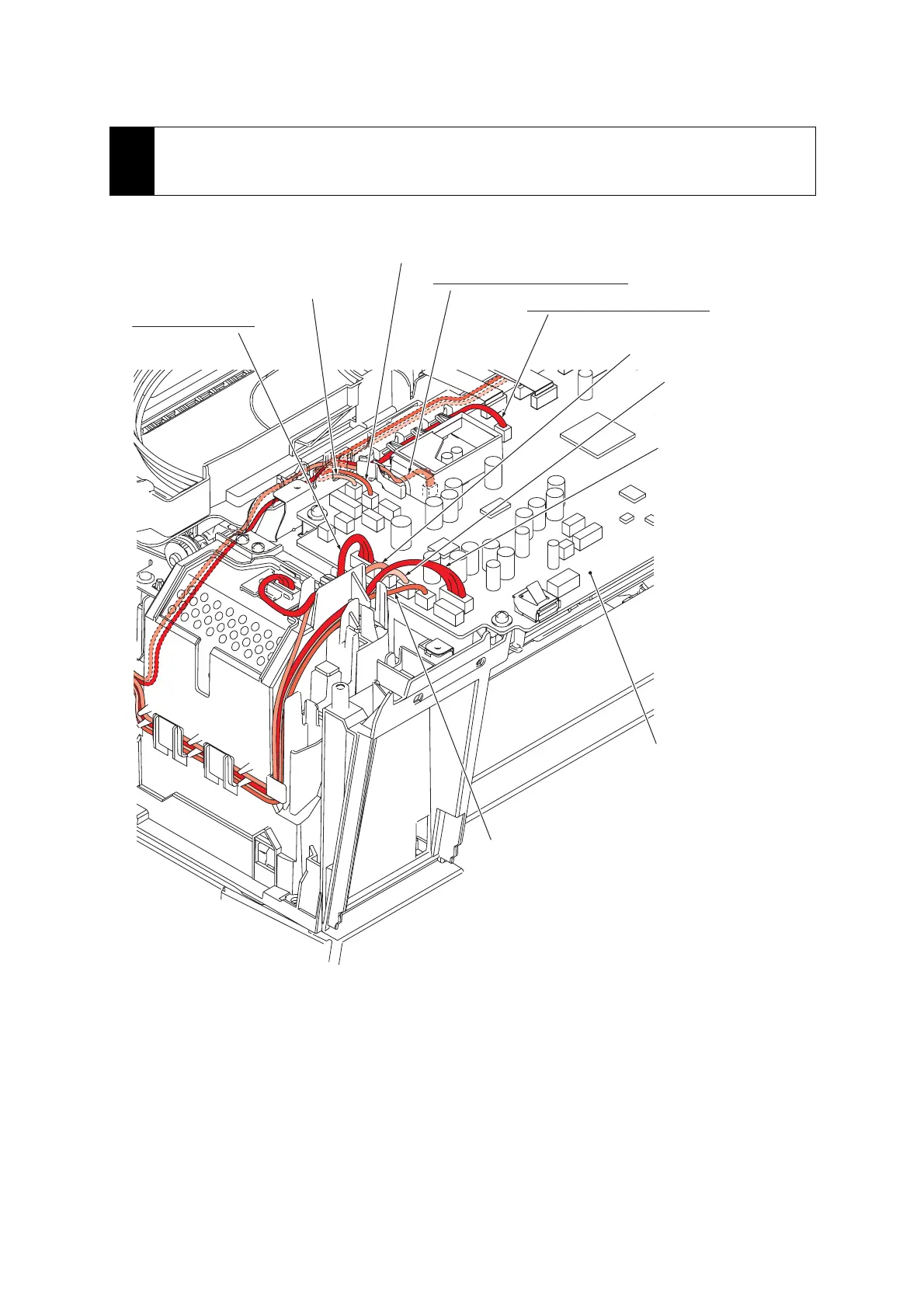

Front left corner of the lower cover: Power supply harness, ASF motor harness, Carriage motor harness,
Main-MJ (LINE) harness, Main-MJ (EXT) harness, Paper feed motor harness, Registration sensor
harness and PF encoder/PF sensor harness
(3_071)
Switchback paper sensor
harness
Power supply harness
ASF motor harness
Carriage motor harness
Paper feed motor harness
PF encoder/PF sensor
harness
Main PCB
Main-MJ (EXT) harness (black)
Main-MJ (LINE) harness (yellow)
Registration sensor
harness
(Front)
