Brother MFC-J6510DW

3-24
Confidential
11

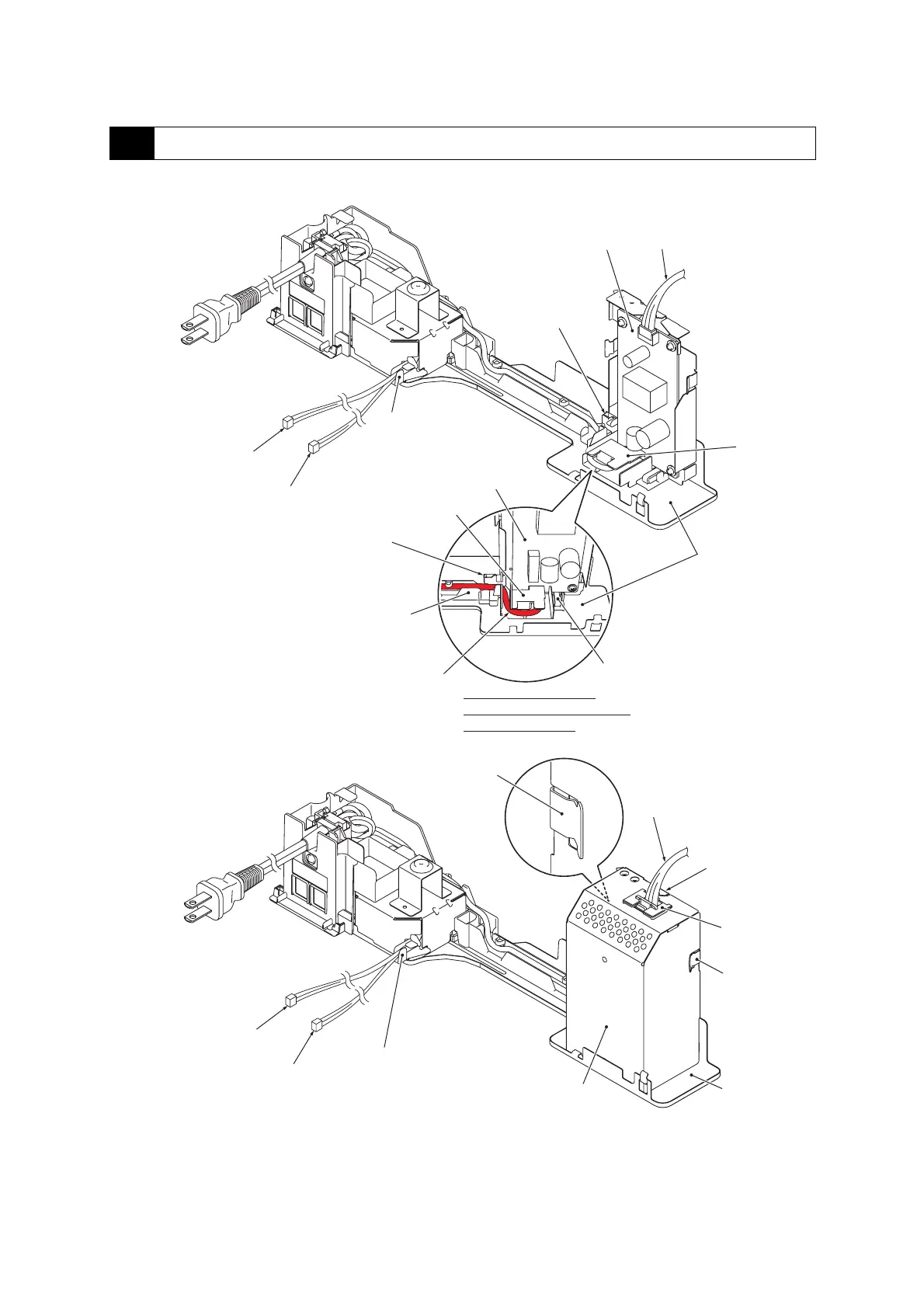

MJ/PS shield unit: Main-MJ (LINE) harness, Main-MJ (EXT) harness and Power supply harness
(3_068)
Power cord
Power supply harness
PS PCB insulator
PS PCB
insulato
r
Power supply PCB
Power supply PCB
Square
opening
Lower MJ/PS
shield
Main-MJ (LINE) harness
(yellow)
Main-MJ (EXT) harness
(black)
Cable guide on the
MJ PCB insulator
AC cord holder
Routing the power cord
through the PS PCB insulator
and AC cord holder
Square opening
Latch
(3_069)
Power supply harness
Lower MJ/PS
shield
Main-MJ (LINE) harness
(yellow)
Main-MJ (EXT) harness
(black)
Power supply shield
Lock "z"
Lock "z"
Lock "z"
Cable guide on the
MJ PCB insulator
Power harness
holder
