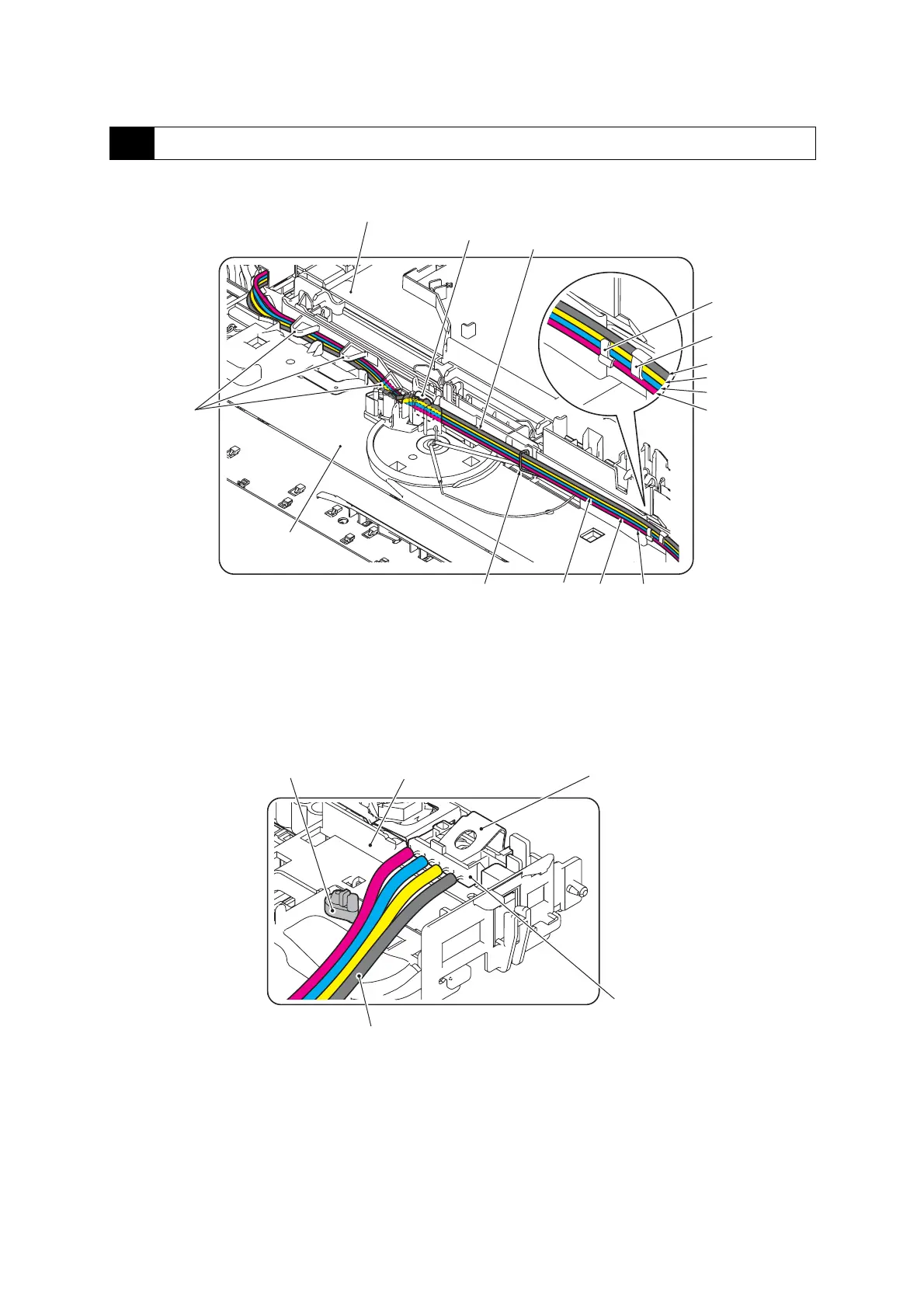

Note: Bind ink supply tubes with two tube clamps. As shown above, align four ink supply tubes
in the order of Magenta, Cyan, Yellow, and Black from bottom to up. Set tube clamp (1) on
magenta, cyan, and yellow ink tubes from the bottom, and tube clamp (2) on black, yellow, and
cyan ink tubes from the top.
Note: Make sure that all of the four ink supply tubes are routed in front of the guide boss as
shown above.
13
Lower cover: Ink supply tubes
(3_075a)
Lower cover
Tube guides
Tube support
plate
(Rear)
Bent section of
tube support wire
Yellow
Cyan
Magenta
Black
Yellow
Cyan
Magenta
Tube clamp (1)
Black
Sponge
Tube clamp (2)
Joint leaf spring
(3_009a)
Head joint
Head/carriage unit
Ink supply tubes
Guide boss
