Brother MFC-J6510DW

3-28
Confidential
14

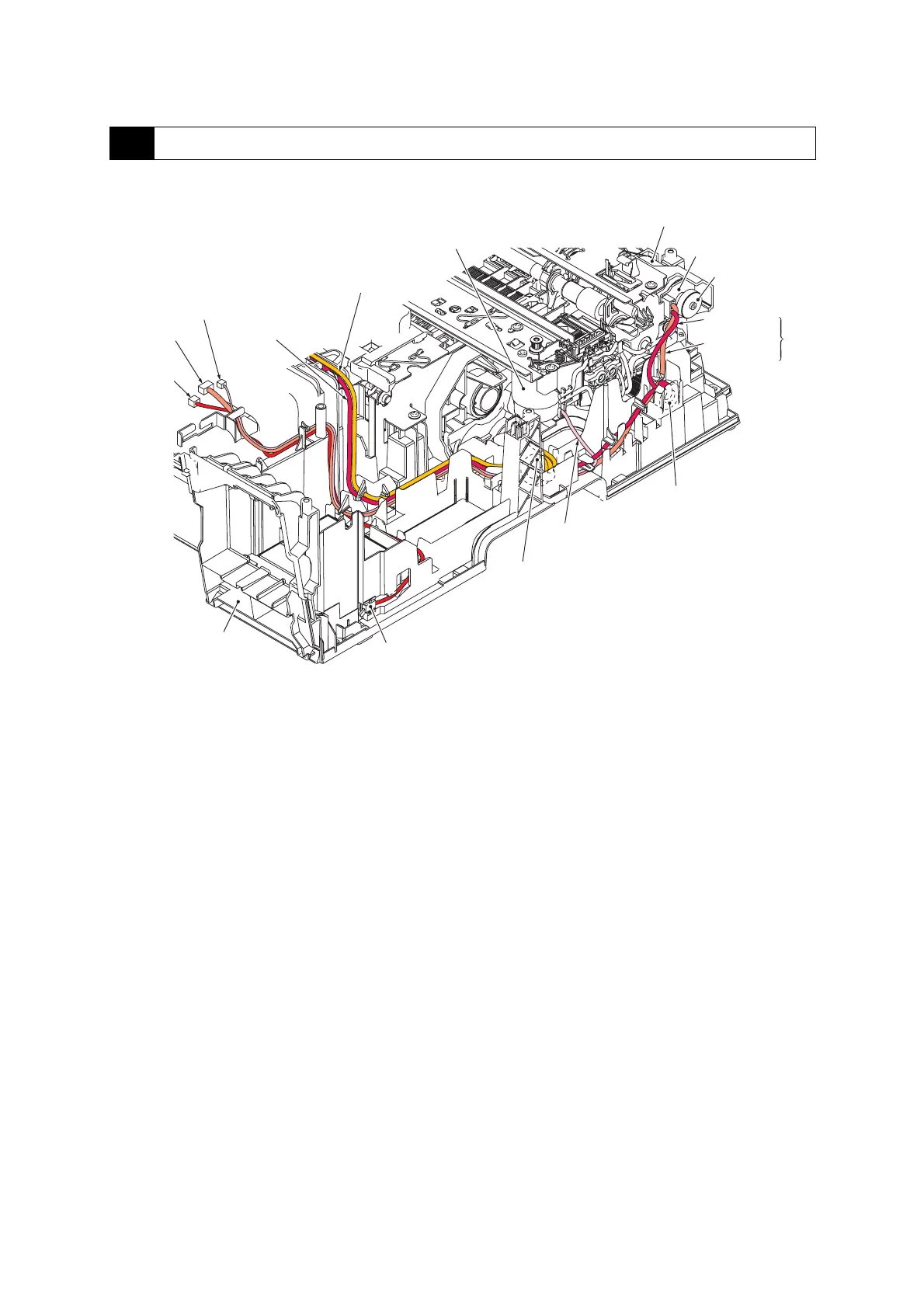

Around the right side of the lower cover
(3_086)
Carriage motor
Carriage motor
harness
ASF motor
harness
Purge cam
switch harness
ASF encoder
harness
Ink cartridge
cover switch
h
arness
Lower cover
Ink cartridge cover switch
Ferrite core of
carriage motor harness
(Right)
Purge cam switch harness
Ferrite core of
ASF motor harness
ASF encoder
harness
ASF motor
harness
ASF
motor/
encoder
harness
ASF encoder disk
ASF motor/
encoder PCB
ASF motor
