Brother MFC-J6510DW

3-29
Confidential
15

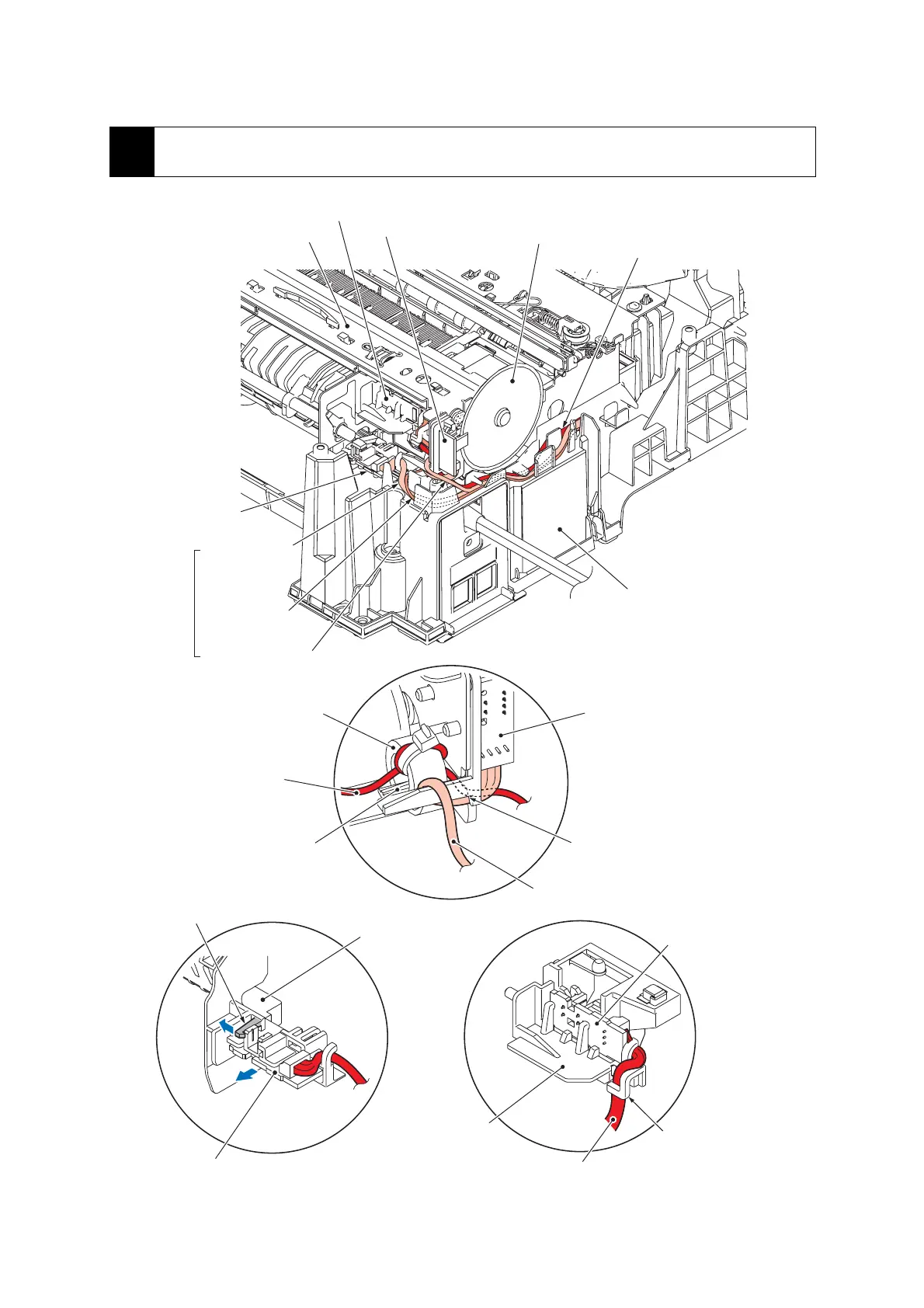

Rear left corner of the lower cover: PF encoder harness, Paper feed (PF) sensor harness and Registration
sensor harness
(3_111)
Paper feed motor harness
PF encoder disk
CR guide rail
Registration
sensor harness
(Rear)
(Rear)
PF encoder harness
PF encoder/
PF sensor
h
arness
(Left)
Lower cover
Cable guide
Paper feed (PF)
sensor harness
Paper feed (PF)
sensor PCB
Registration sensor PCB
Sensor
support
Registration sensor
harness
Inner chute ASSY
Support arm
PF encoder sensor PCBFerrite core
Paper feed
motor harness
Latch
PF encoder sensor harness
Paper feed motor harness threaded
through the cutout provided in the
encoder PCB support
PF encoder sensor PCB
Registration sensor PCB
Paper feed (PF)
sensor PCB
