Brother MFC-J6510DW

3-30
Confidential
16
Whole of the lower cover
(3_114)
ASF motor
harness
Main PCB
PF encoder/
PF sensor
harness
Switchback paper
detection
sensor harness
Registration
sensor harness
Paper feed
motor harness
Carriage motor
harness
ASF encoder
harness
Purge cam
switch
harness
Ink cartridge cover
switch harness

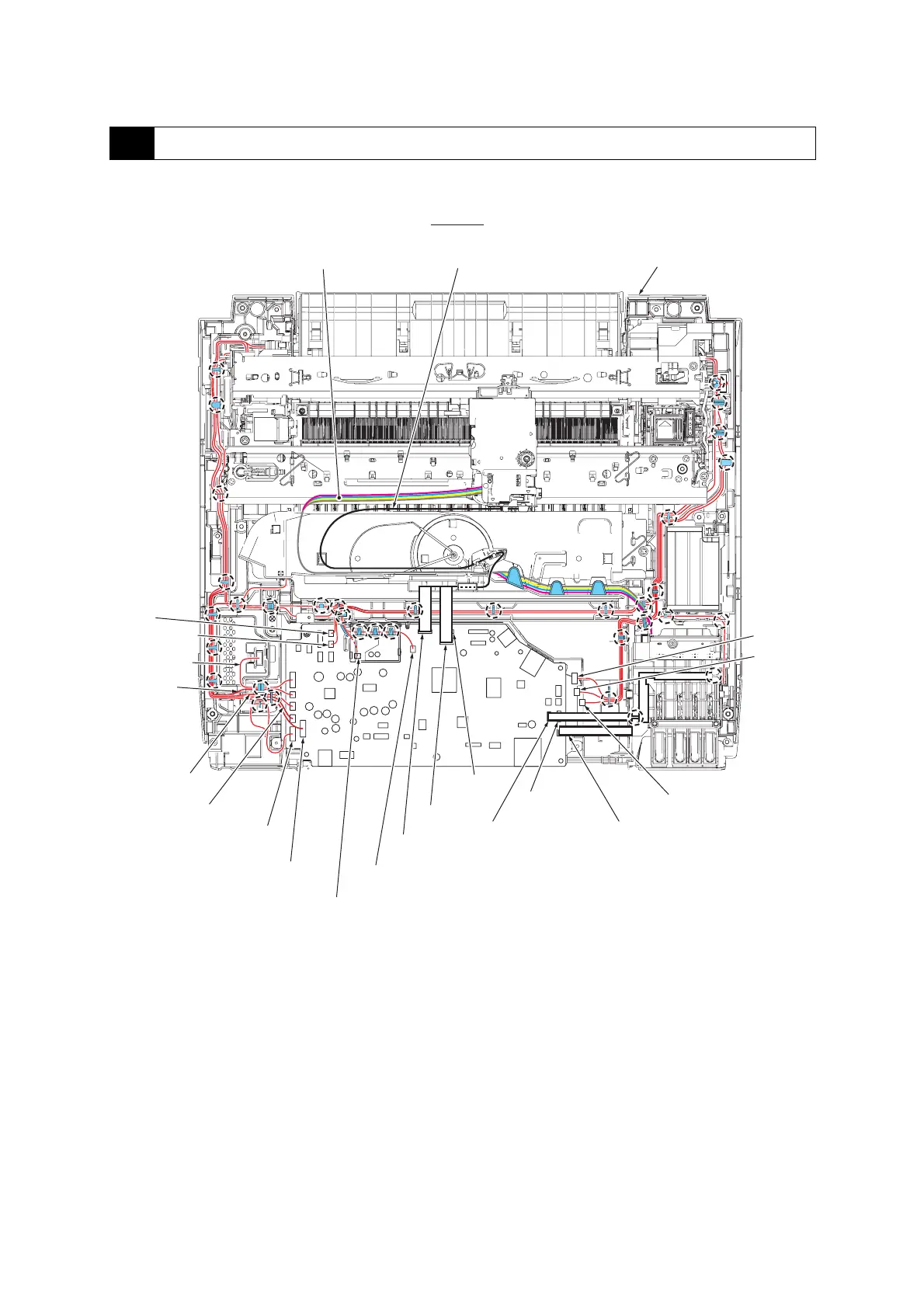

Top view
Lower cover
Head flat cablesInk supply tubes
Power supply
harness
Wireless LAN
PCB harness
Main-MJ (LINE) harness
(yellow)
Main-MJ (EXT) harness
(black)
Head flat
cable 3
Head flat
cable 2
Head flat
cable 1
High-yield ink
cartridge sensor
flat cable
Ink remaining
sensor flat cable
Ink cartridge detection
sensor flat cable
