Brother MFC-J6510DW

3-45
Confidential
(21)Remove the CR timing belt from the head/carriage unit.

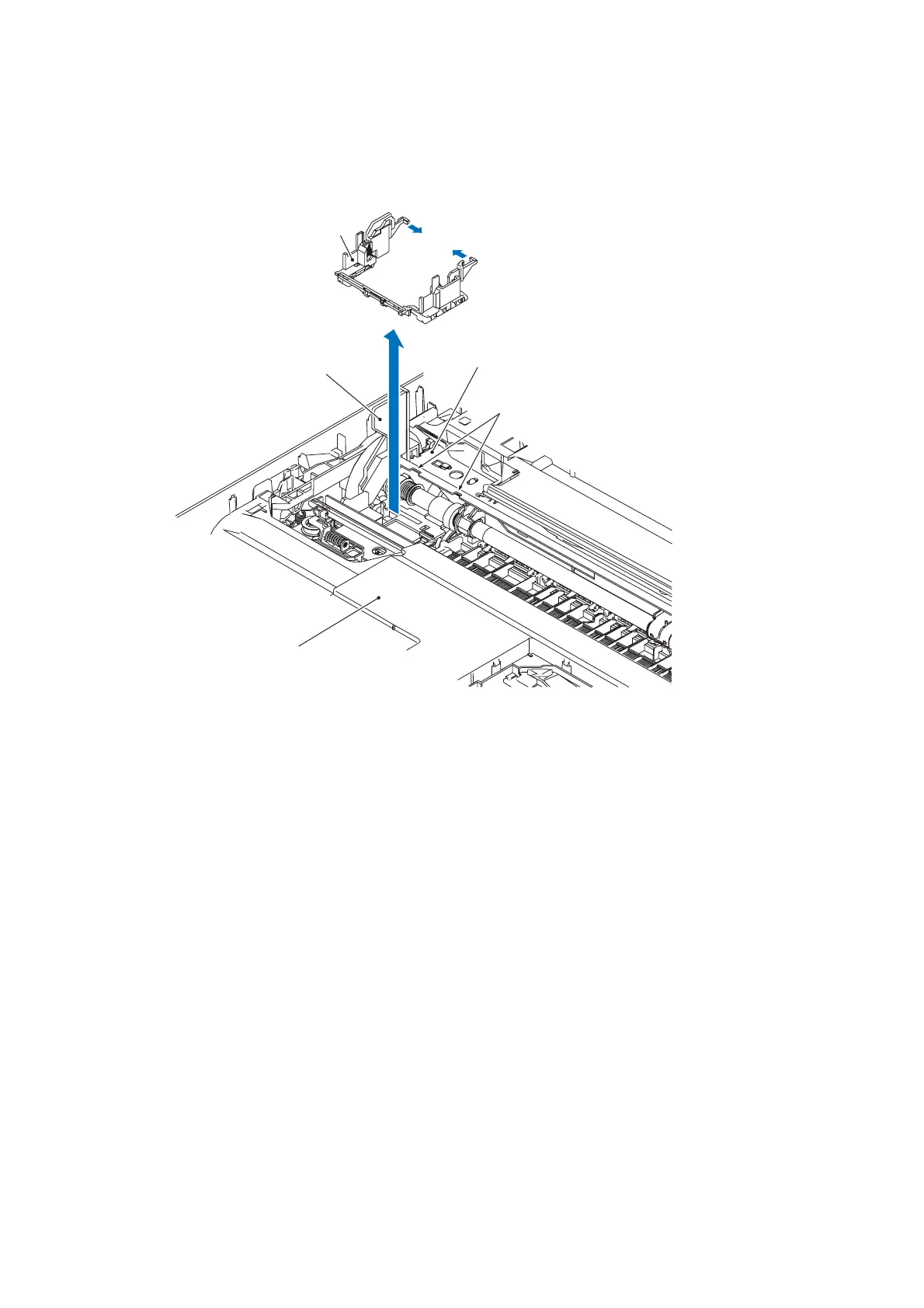

(22)Press the rear ends of the leveller roller (LR) ASSY inwards and take them out through the
two cutouts provided in the CR guide rail.
CR guide rail
(3_017)
Upper cover
Cutouts
Leveler roller (LR) ASSY
LR positioning jig
