Brother MFC-J6510DW

3-59
Confidential
ADF front cover

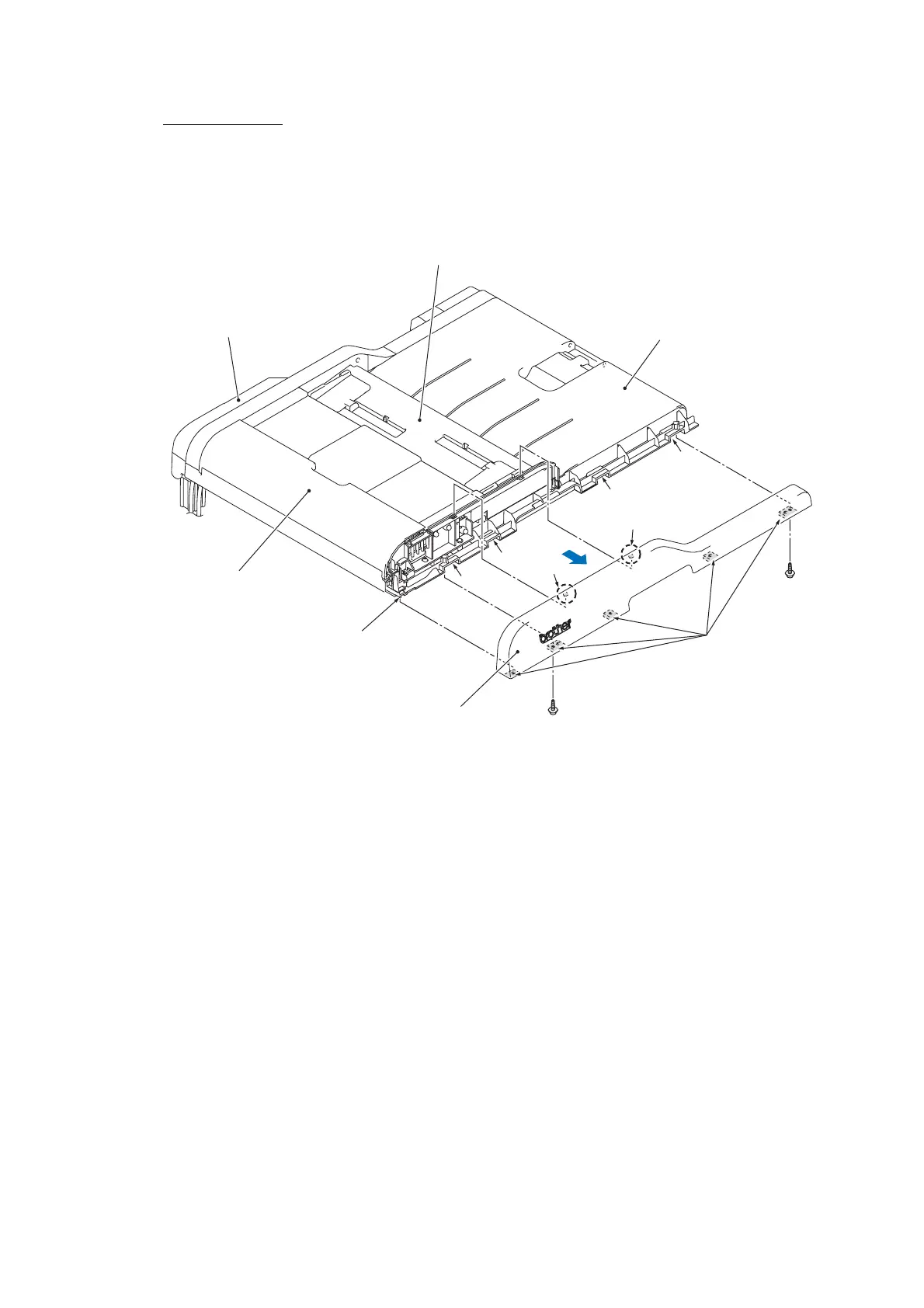

(3) Remove the two screws from the bottom of the ADF front cover.
(4) Release the two upper hooks of the ADF front cover, then release the five retainers on the
bottom from the bosses on the document cover to remove the ADF front cover.
Upper ADF chute
(3_026)
ADF cover
Document cover
Boss
Boss
Boss
Boss
Boss
A
DF rear cover
ADF front cover
Taptite, cup B M3x10
Retainers
Hook
Hook
