Brother MFC-J6510DW

3-61
Confidential

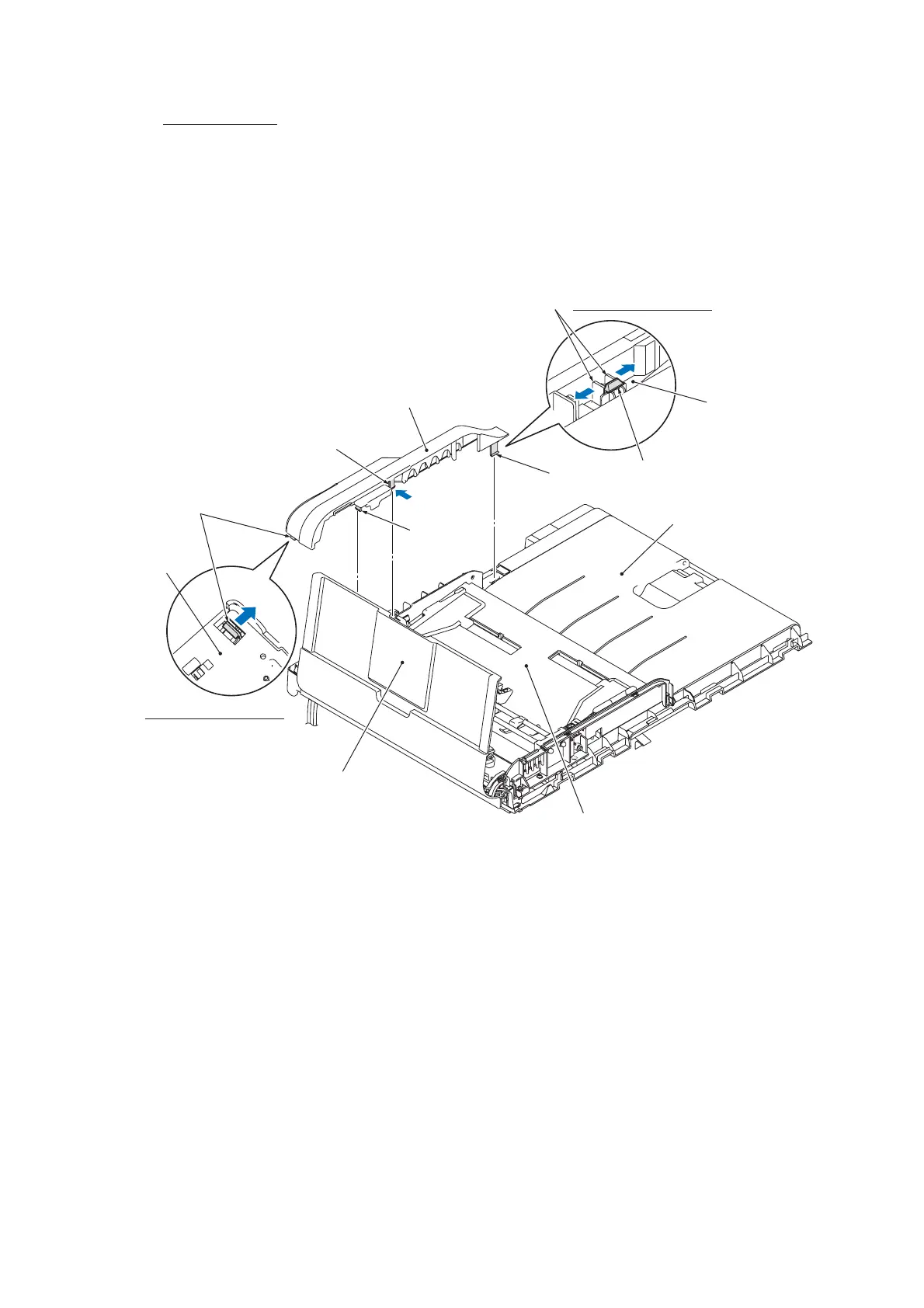

ADF rear cover
(8) Pull the lock arms provided on the underside of the document cover outwards and release
latch "a" of the ADF rear cover. Then release latch "b" from the document cover.
(9) Open the ADF cover.
(10) Release latch "c" at the center of the ADF rear cover from the top with the tip of a flat
screwdriver, then remove the ADF rear cover from the upper ADF chute.
(3_028)
ADF rear cover
Latch "c"
Latch "b"
Document
cover
ADF cover
Upper ADF chute
Document cover
Latch "a"
Latch "a"
Document cover
Lock arms
Latch
Viewed from the bottom
Viewed from the bottom
