FFC cover

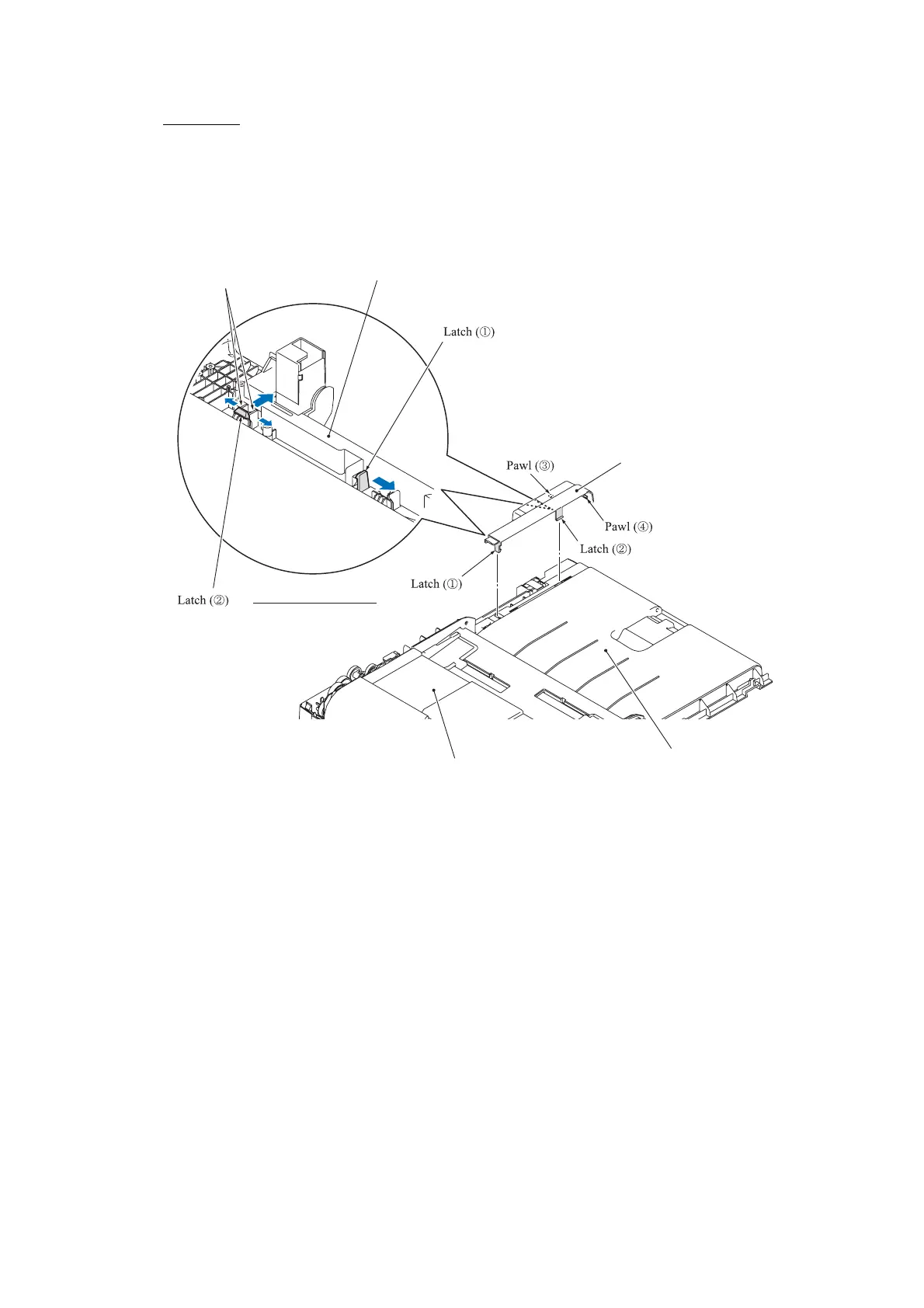

(13) At the underside of the document cover, release latch (c) on the FFC cover, then pull the
lock arms on the document cover outwards and release latch (d).
(14) Release pawls (e and f) from the document cover and take the FFC cover off the
document cover.
(3_030)
Lock arms
Viewed from the bottom
(Rear)
ADF cover
Document cover
FFC cover
Document cover
(Rear)
