3-64
Confidential
FFC holder

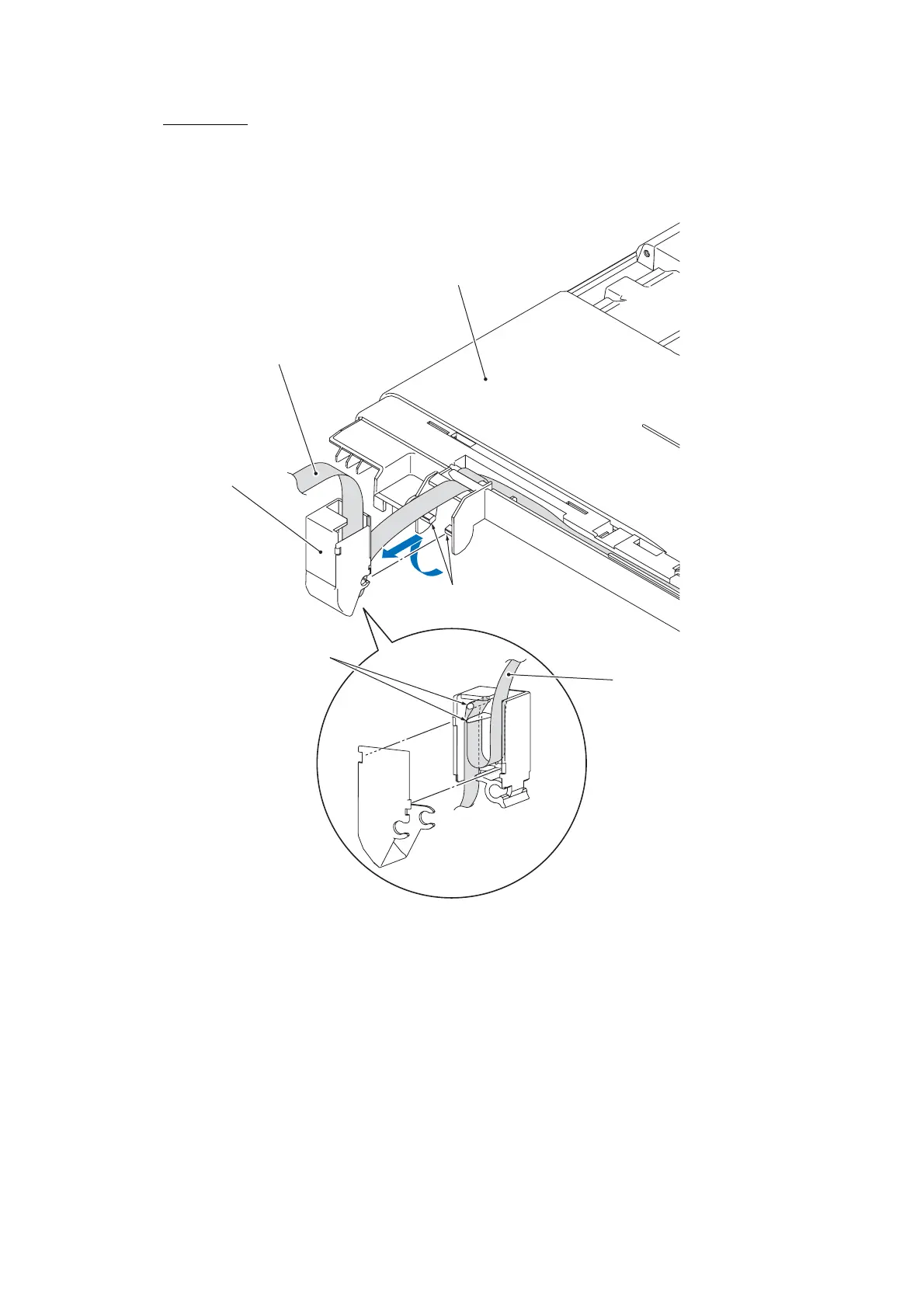

(15) Turn up the FFC holder towards you and pull it towards you to remove it from the bosses
provided on the document cover.
*For duplex scanning models
Assembling Note: When mounting the FFC holder, make sure that the white CIS flat cable (for
second side scanning)* is routed through the cable guides in the FFC holder as shown above.
(3_037)
Bosses
Cable guides
FFC holder
CIS flat cable (white) for
second side scanning*
Document cover
CIS flat cable (white) for
second side scanning*
