Brother MFC-J6510DW

3-65
Confidential
ADF cover

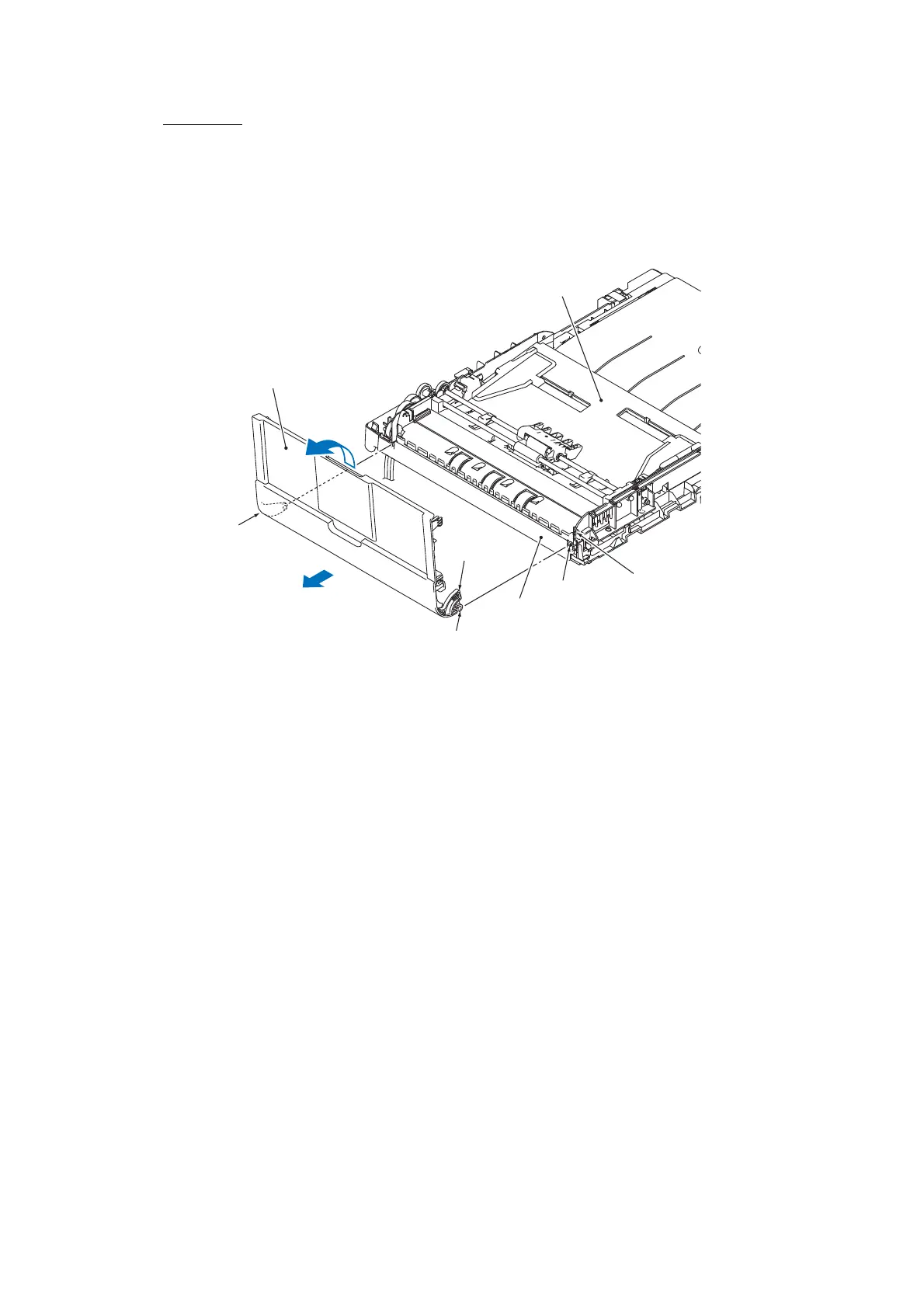

(16) Open the ADF cover fully.
(17) Slightly pull the rear end of the ADF cover to the left to release the rear hinge from the boss
on the document cover. Then release the front-end groove and front hinge from bosses "e"
and "f," respectively.
(3_031)
ADF cover
Rear hinge
Front hinge
Groove
Document cover
Boss "f"
Boss "e"
Upper ADF chute
(Rear)
