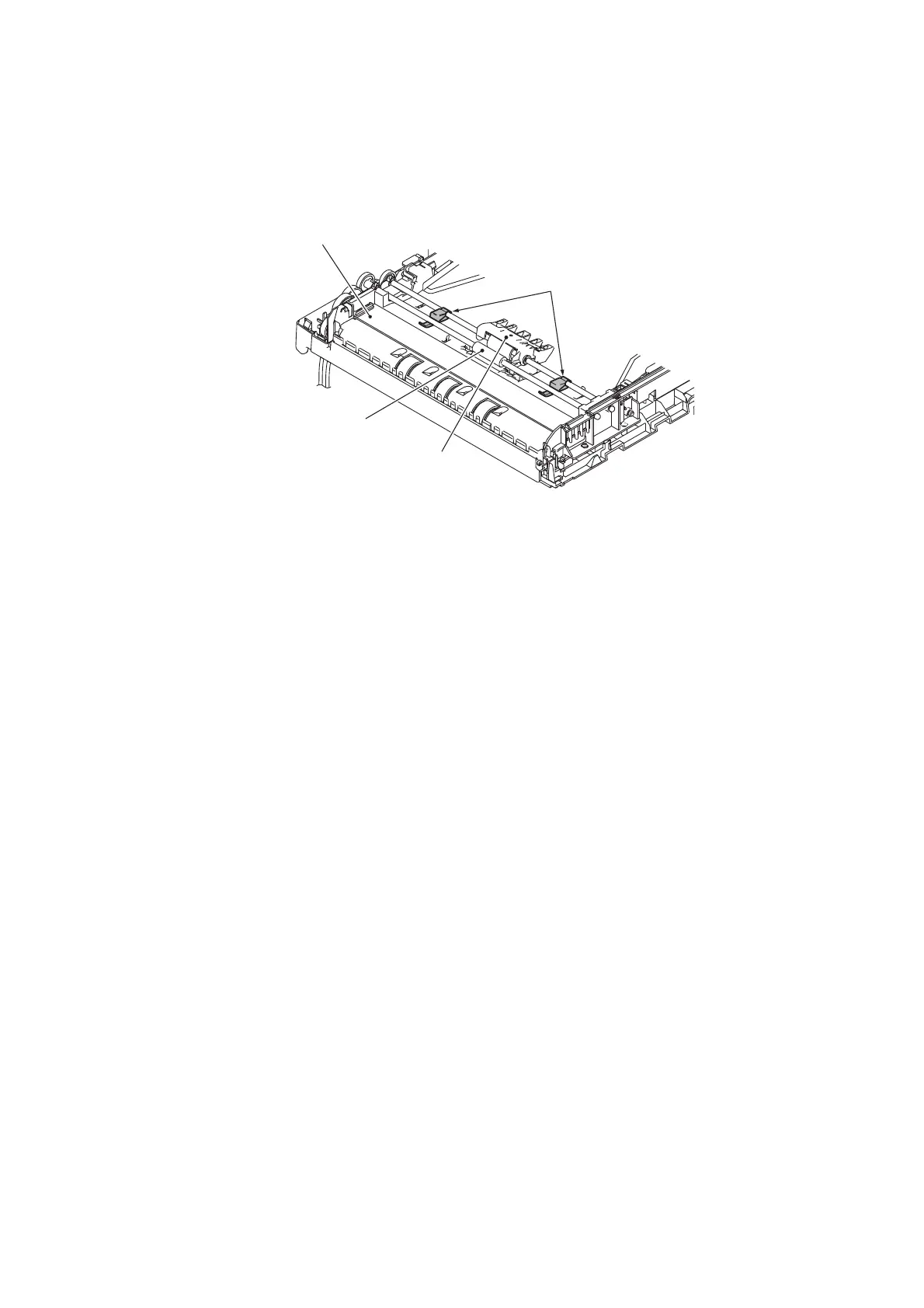

Assembling Note: When mounting the document feed roller ASSY 1, make sure that it presses
down the document guides of the document pull-in/separation roller ASSY as shown below.
(3_031_1)
Upper ADF chute
(Rear)
Document pull-in/
separation roller ASSY
Document feed roller ASSY 1
Document guides
