3-70
Confidential
Document guides F and R
(23) Remove the screw from the document guide gear, then take the document guide gear and
its spring out of the upper ADF chute.

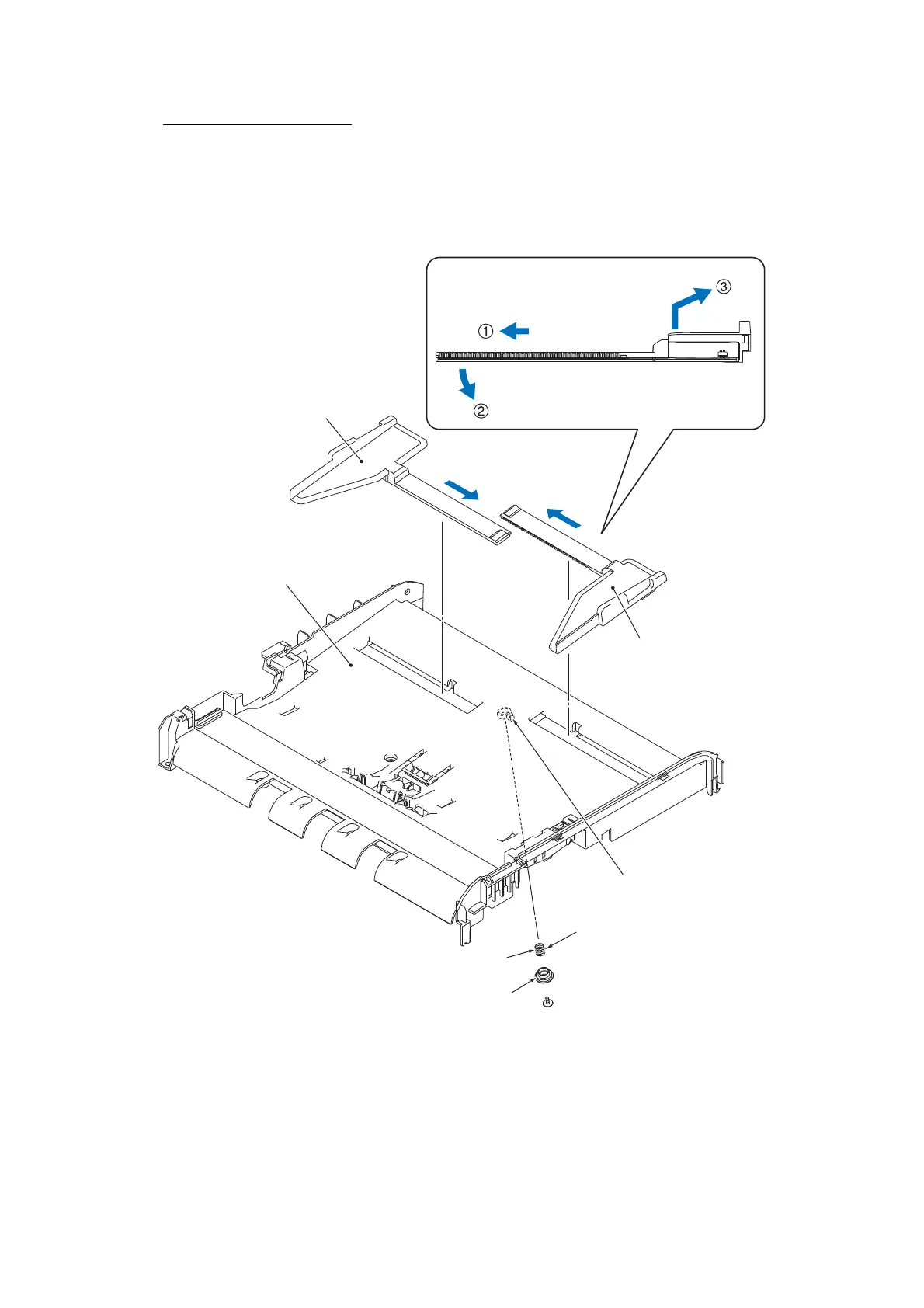

(24) As shown below, slide each of the document guides F and R inwards (c), pull down the
bottom end (d), slide it inwards further, and take it up (e).
Document guide F
(3_035)
Document guide R
Upper ADF chute
Spring end
Document guide gear
Taptite, B M3x6
Document guide spring
Fit the spring end here.
