Brother MFC-J6510DW

3-74
Confidential

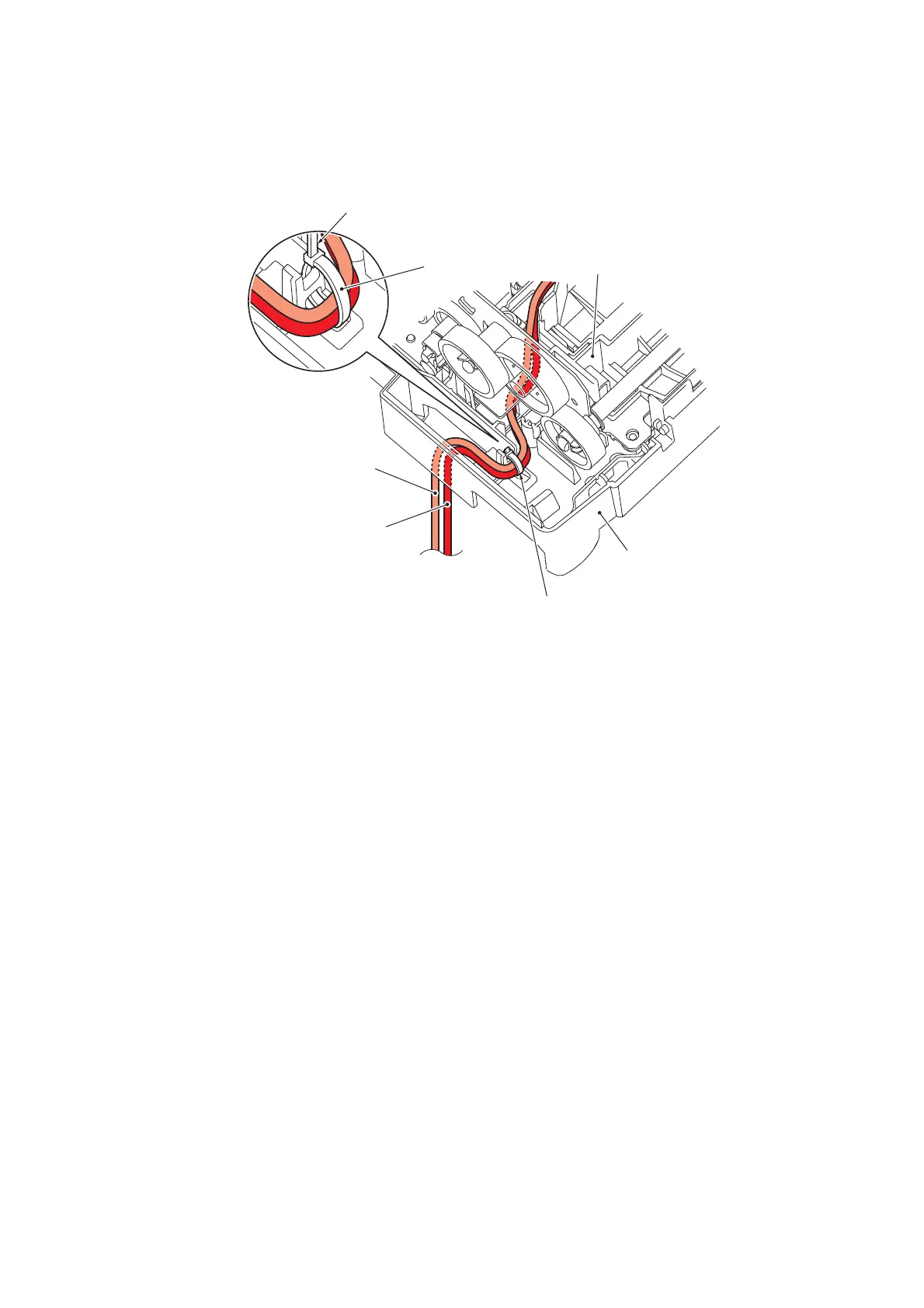

• After mounting the lower ADF chute on the document cover, secure the harnesses to the
document cover with a cable tie as shown below.
Cut off the excess of the cable tie with nippers.
(3_046)
Cut off the excess of the cable tie with nippers.
Cable tie
Bundle of the ADF motor harness
and grounding wire
Bundle of the document detection/
width & scanning position (first side)
sensors harness, the document scanning
position sensor harness (second side)*,
and the ADF cover sensor harness
Document cover
Lower ADF chute
Cable tie
