Brother MFC-J6510DW

3-76
Confidential

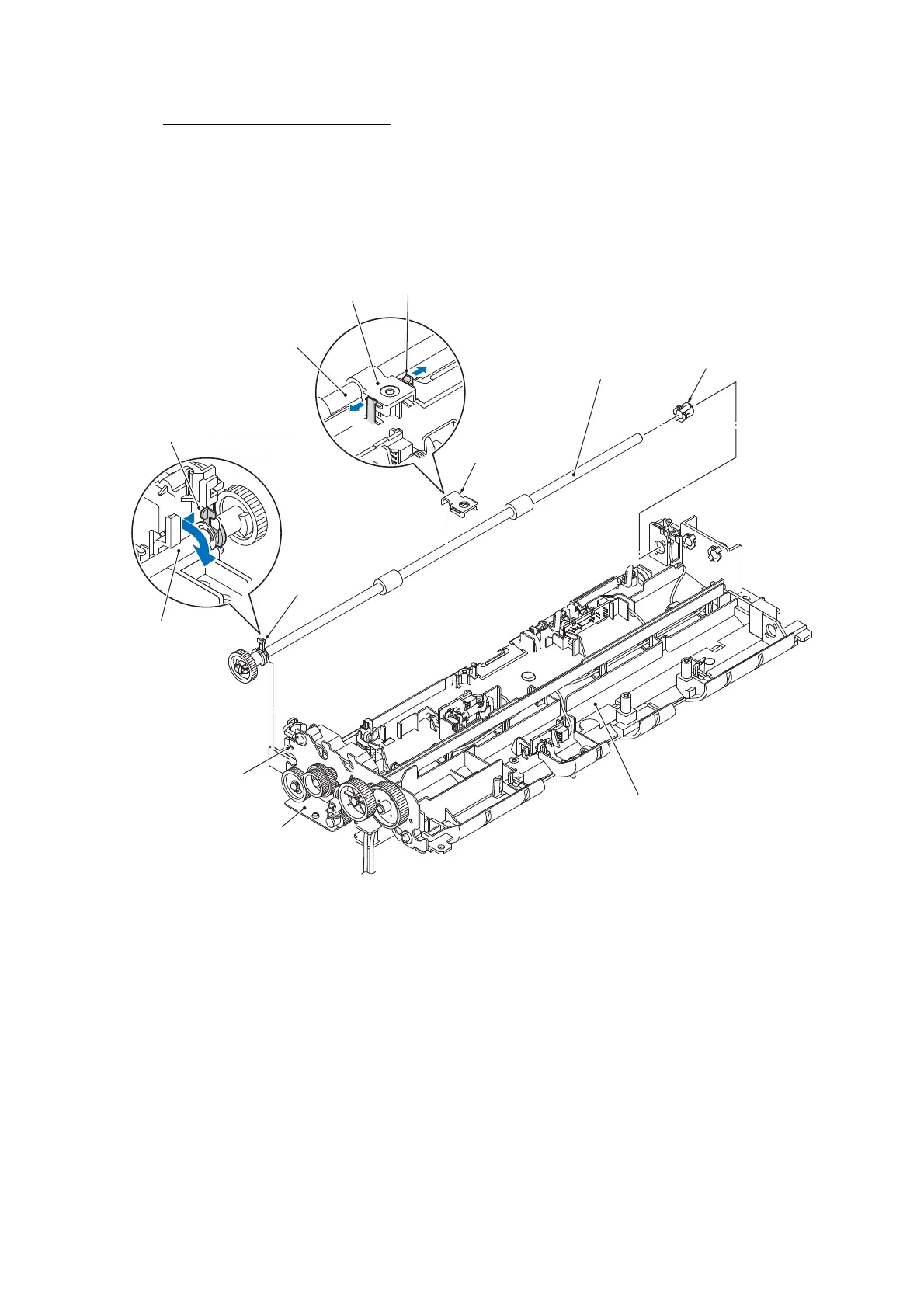

Document ejection roller ASSY
(34) Release the support plate on the document ejection roller ASSY from the lock arms on the
lower ADF chute.
(35) At the rear end of the document ejection roller shaft, release the lock arm of the bushing
from the cutout provided in the ADF drive unit and take the document ejection roller ASSY
up and out of the lower ADF chute.
(3_040)
Lock arm of
bushing
Document ejection
roller shaft
(Left)
Lower ADF chute
(Front)
Lock bushing
Lock arms
Lock arm of
bushing
Viewed from
the front
Document ejection
roller ASSY
Document ejection
roller ASSY
Cutout
ADF drive unit
Support plate
Support plate
